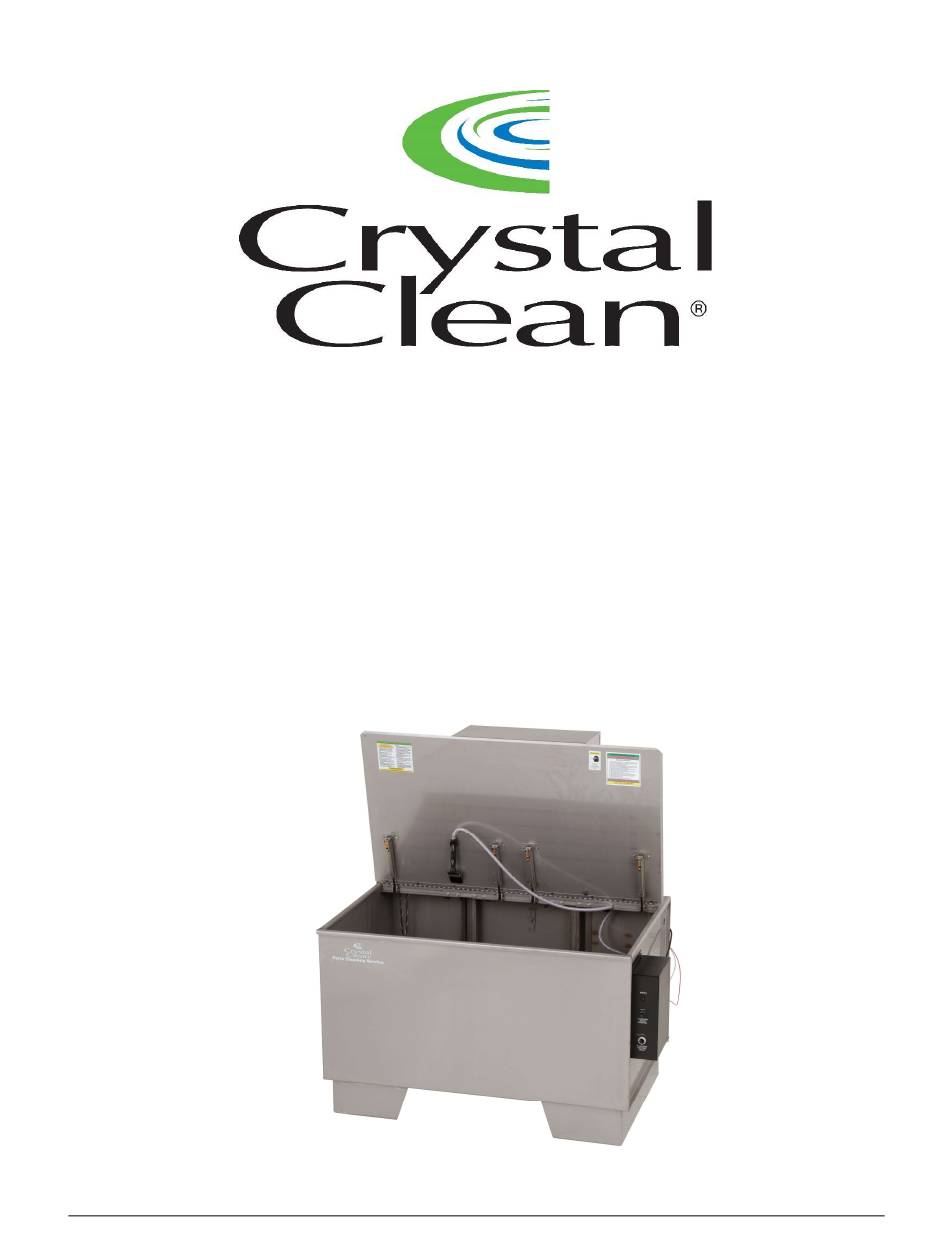

- Page 1 MODEL 2779 150g Aqueous Agitation Unit Operating Manual Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 2 It is important that you follow the instructions provided in this manual. If you fail to read, understand, and follow all of the procedures in this manual, you may cause or suffer personal injury. DO NOT OPERATE ELECTRICAL EQUIPMENT INSIDE OF PARTS CLEANER. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 3 Do NOT use compressed air to dry parts. Be sure parts, especially brake parts, are completely dry prior to reassembly. Turn unit "OFF" and close lid when equipment is not in use. This will reduce evaporation. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 4: Important Safety Instructions
Keep cover closed whenever unit is not in use. Do NOT remove fluid from this equipment or it may cause malfunction or unsafe conditions. SAVE THESE INSTRUCTIONS Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... -
Page 5: Installation
Check serial plate for power requirements. 115 Volt Pump: 115 volt, 1amp, 60 Hz, 1PH 230 Volt pump: 230 volt, .5 amp, 50 Hz, 1 PH Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... -
Page 6: Additional Specifications
DO NOT EXCEED 750 LBS! DO NOT DROP PARTS ON PLATFORM! AGITATION – OPERATION 1. Turn the “PLATFORM CONTROL VALVE” to the “AGITATE” position. When the platform reaches the bottom position it will begin agitating. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 7 5. Turn the pump switch to the “OFF” position. 6. Place brush in the brush holder. 7. Unload parts or continue to clean in the agitation operation. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 8: Machine Diagrams
MACHINE DIAGRAMS ITEM 2779A 2779B DESCRIPTION 59651 59651 CONTROL BOX ASSEMBLY 59963 59963 PUMP ASSEMBLY Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... -
Page 9: Wiring Diagrams
01122 SWITCH 58531 SPEED CONTROL ASSEMBLY 59756 3 POS SWITCH ASSEMBLY 59757 REGULATOR ASSEMBLY 56968 NOT VALVE ASSEMBLY 58387 FILTER/REGULATOR ASSEMBLY 59656 POWER CORD 01132 RECEPTACLE Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 10 Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 11 Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 12 55644 PROBE CLIP TOP 55645 PROBE CLIP BOTTOM 01802 FUSE BLOCK 01800 FUSE, 600V, 20A 02269 FUSE BLOCK 02270 FUSE, 500V, 2AMP 57343 TRANSFORMER 01805 CONTACTOR Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 13 4. Rotate the agitation regulator adjustment knob counter clockwise until the lift begins to agitate. 5. Push in the adjustment knob on the regulator to lock the setting. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 14: Troubleshooting
TROUBLESHOOTING Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 15 Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
