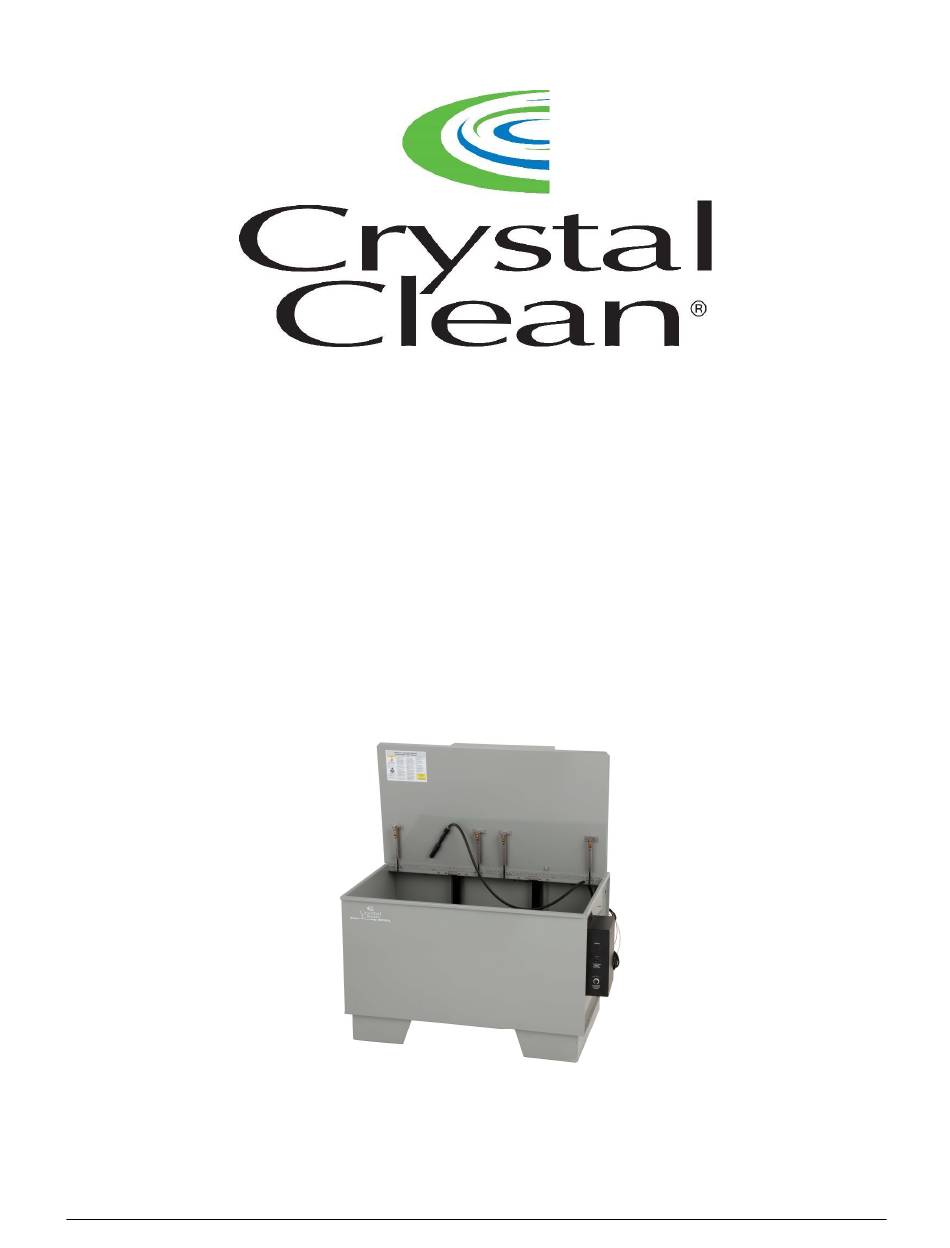

- Page 1 MODEL 1679 150g Agitation Unit Operating Manual Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
- Page 2 It is important that you follow the instructions provided in this manual. If you fail to read, understand, and follow all of the procedures in this manual, you may cause or suffer personal injury. DO NOT OPERATE ELECTRICAL EQUIPMENT INSIDE OF PARTS CLEANER. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 3: Important Safety Instructions
Do NOT use compressed air to dry parts. Be sure parts, especially brake parts, are completely dry prior to reassembly. Turn unit "OFF" and close lid when equipment is not in use. This will reduce evaporation. IMPORTANT SAFETY INSTRUCTIONS Read all instructions. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 4 Do NOT remove fluid from this equipment or it may cause malfunction or unsafe conditions. SAVE THESE INSTRUCTIONS SERVICE Call your representative should your parts cleaner need service and always unplug unit when servicing. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 5: Installation
Check serial plate for power requirements. 115 Volt Pump: 115 volt, 1amp, 60 Hz, 1PH Weight capacity for this parts cleaner is 750LBS. Do not exceed rated load. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... -
Page 6: Additional Specifications
Note: The speed control has a locking feature, if it will not turn, pull up on the knob. 3. To reduce evaporation, close the cover while the parts are agitating. SOAKING – OPERATION Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... -
Page 7: Machine Diagrams
5. Turn the pump switch to the “OFF” position. 6. Place brush in the brush holder. 7. Unload parts or continue to clean in the agitation operation. MACHINE DIAGRAMS Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 8 SWITCH 59089 SPEED CONTROL ASSEMBLY 59756 3 POS SWITCH ASSEMBLY 56968 NOT VALVE ASSEMBLY 59088 FILTER/REGULATOR ASSEMBLY 59656 POWER CORD 01132 DUPLEX RECEPTACLE 01011 SPEED CTRL Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 9: Wiring Diagram
WIRING DIAGRAM Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 10 4. Rotate the agitation regulator adjustment knob counter clockwise until the lift begins to agitate. 5. Push in the adjustment knob on the regulator to lock the setting. Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
-
Page 11: Troubleshooting
Remove some of the weight / 250lbs. Max Wrong agitation pressure. Adjust the regulator on the up/down switch Not enough air. Check serial plate for recommended air pressure Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948... - Page 12 Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948...
