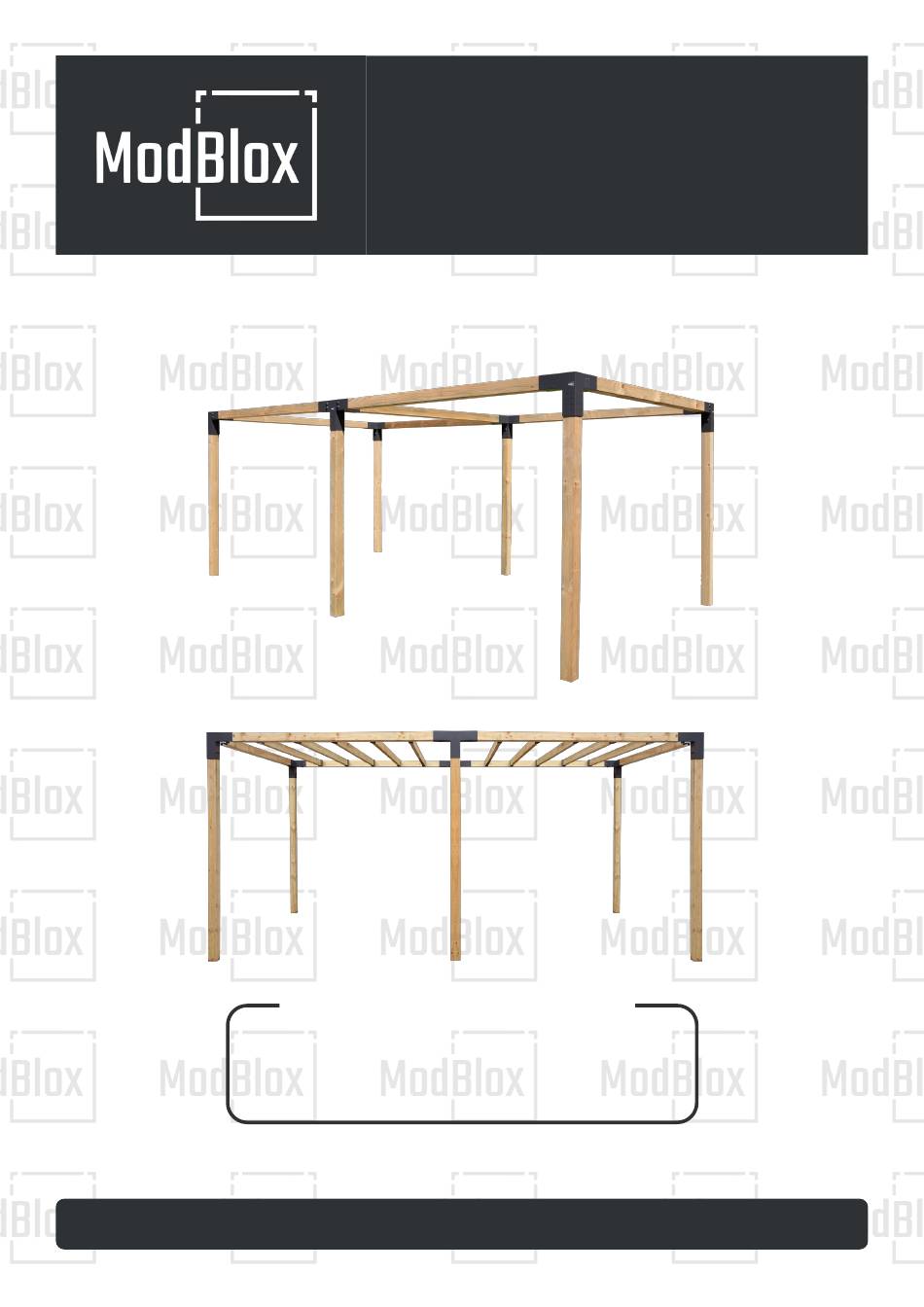

- Page 1 INSTRUCTION MANUAL ModBlox Extra Wide ™ 1 Hour Approximate Build Time 3 People Recommended For Assembly ModBlox — a modular revolution for your garden space! www.ModBlox.co.uk...
-
Page 2: General Information
(if appropriate) for access. Assembling your ModBlox pergola is fun and easy, even for novices with little or no building experience. Assembly with a friend can be done in as little as an hour (longer if your pergola includes roof rafters and/or a privacy wall). You won't need any speciality tools, either... -
Page 3: Kit Contents
KIT CONTENTS 4 x ModBlox™ 2 x ModBlox™ 7 x Roof ModPost™ TriSleeves QuadSleeves (92mm x 92mm) 6 x Upright ModPost™ (92mm x 92mm) 80 x 40mm Fixing 1 x 8mm Hex Head Screws with Caps Driver Bit www.ModBlox.co.uk... - Page 4 Whilst you can use any of the holes you want if space is restricted or you want to hide them from view, we always recommend using the screw holes nearest the end on the underneath side of the roof, and on the side of the frame as indicated in the above two images, this ensures maximum strength. www.ModBlox.co.uk...
- Page 5 Each Tri/QuadSleeve in your kit includes 12 40mm fixing screws and caps. See the screw diagram to the right to see which 12 holes the screws should go in. (Additional holes are for attaching accessories.) CORNER VIEW www.ModBlox.co.uk...
- Page 6 The further the spike is into the ground the harder it will be to realign, so check the level frequently as you go deeper. The spike can then be tightened to the post using the 2 bolts on the side which locks it into its final position. www.ModBlox.co.uk...
- Page 7 With all your rafters built it is then just a matter of placing them into position, equally spaced, approx. 400-500mm depending on the size of your pergola and fixing to the main frame using another two 40mm Fixing Screws. The final step is to cover your screws with the provided caps to create a sleek modern finish. www.ModBlox.co.uk...
