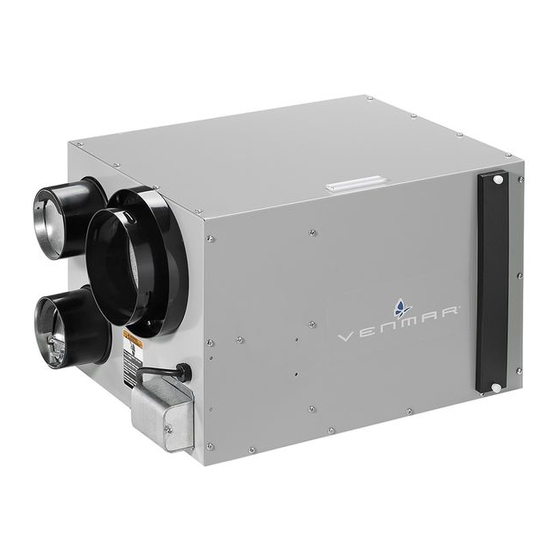

Air exchanger model:
EA 20200, PRO 100, PRO 200
This box contains the ventilation system and the wall control. In order to complete the
system and its installation, you have to get another box which contains the installa-
tion parts. To assure your entire satisfaction, Venmar's engineers have developed and
tested this system with its original parts. We use top quality parts in order to guaran-
tee you the optimum efficiency of this system. Other brand parts are not approved by Venmar and
do not comply with our quality standards. Venmar accepts no responsibility regarding product effi-
ciency when installed with other parts than Venmar.
IMPORTANT ADVICE TO CONSUMERS
Read and save these instructions
USER MANUAL
17/11/03 01506
Advertisement
Table of Contents
Related Manuals for Venmar EA 20200
Summary of Contents for Venmar EA 20200
- Page 1 We use top quality parts in order to guaran- tee you the optimum efficiency of this system. Other brand parts are not approved by Venmar and do not comply with our quality standards. Venmar accepts no responsibility regarding product effi- ciency when installed with other parts than Venmar.
-
Page 2: Table Of Contents
This can be found on the sticker placed on the side of the unit. Our serv- ice personnel will determine with you the reason for the defect and will help you find a solution to your problem. Call VENMAR VENTILATION inc. at 1-800-567-3855 if you don’t succeed in contact- ing a service centre. -
Page 3: Operational Principles
2. OPERATIONAL PRINCIPLES The air exchanger is designed to eliminate problems of excessive humidity, to steady the temper- ature and the humidity and to filter the air inside your house. The air exchanger carries out the fol- lowing operations: AIR CIRCULATIONS: (PRO 200 ONLY) The system circulates the air inside the house, thus steadying the temperature and the humid- ity throughout. - Page 4 3. WALL CONTROL (continued) Spring and Fall: – Position the selector anywhere between 75% and 50% (higher on warm days, lower on cold days). If certain periods during the spring and fall seem more like winter then you should follow the instructions given for humidity control during the winter! Summer: –...
-
Page 5: Maintenance
4. MAINTENANCE Air filter: We recommend that it be cleaned every three months . First, use a vacuum cleaner to remove the accumulated dust. Then wash it in warm soapy water. Exterior openings: Clean the exterior intake and exhaust screens at least once a year , preferably in autumn. -
Page 6: Installation
The model PRO 200, however, can be installed in the attic if a basement installation is impracticle. (Models EA 20200 and PRO 100 should not be installed in the attic.) When you have to install extra registers in the ground floor, use either: two 6” x 10” registers or three (4”... - Page 7 Unit: – Model PRO 200 can be installed in either the basement or the attic. Models EA 20200 and PRO 100 can be installed in the basement only. – Place the unit as close as possible to an outside wall to minimize the length of the flexible ducts.
- Page 8 7. INSTALLATION OF THE SYSTEM (continued) Wall control: Locate the wall control on the ground floor of the house in an area where air circulates (eg.: hallway, living room, dining room, etc.). Never place it near a doorway to the outside, nor on an exterior wall.
- Page 9 7. INSTALLATION OF THE SYSTEM (continued) You should follow the procedure below when it is necessary to “connect” an insulated flexible duct to its corresponding opening: a) Connect the interior flexible duct to the hole using screws and/or a duct tie. b) Carefully seal the connection with duct tape.
- Page 10 Screw the wall control onto the wall Warning! All electrical connections must comply with local regulations. PRO 200 EA 20200 PRO 100 Verify the operation of your unit: Connect the unit to a power source. By adjusting the wall control as described in sections 3.2b and 3.2c, verify that the unit works properly.
- Page 11 7. INSTALLATION OF THE SYSTEM (continued) BASEMENT ATTIC KIT EA 20120 KIT EA 20130 KIT EA 20140...
- Page 12 7. INSTALLATION OF THE SYSTEM (continued) BASEMENT KIT EA 20120 KIT UT 20004 BASEMENT KIT EA 20120 KIT UT 20003...
