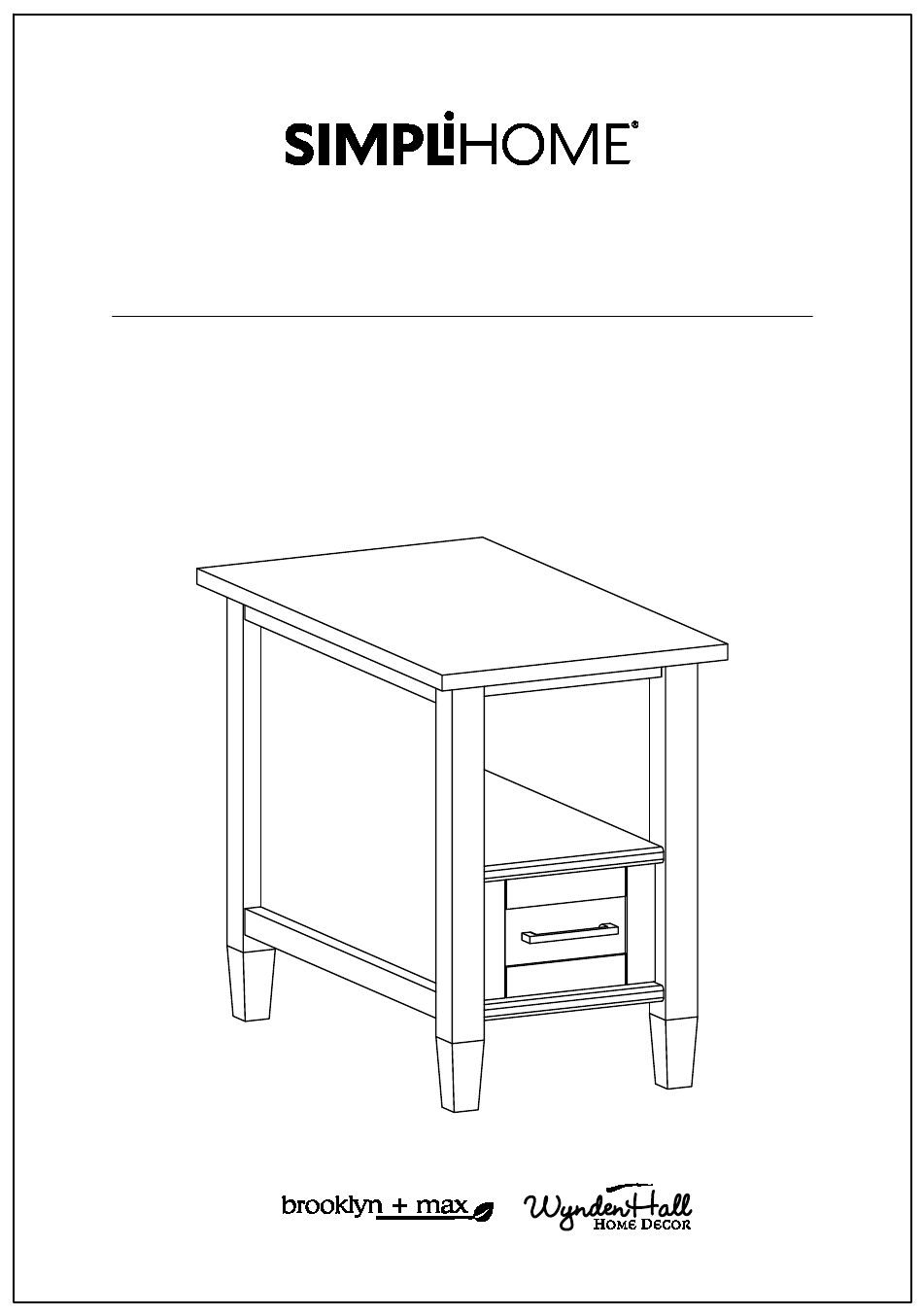

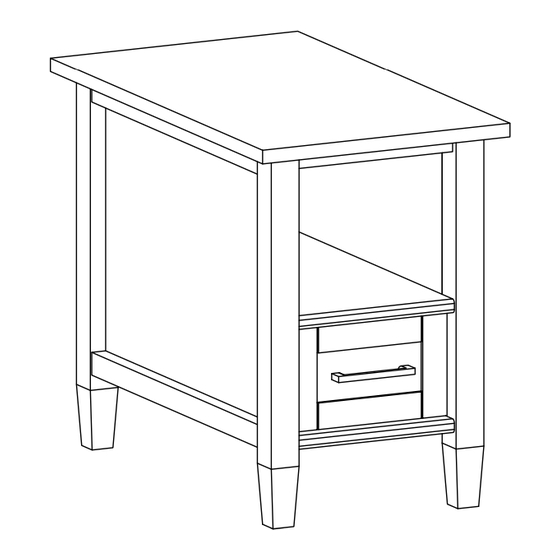

- Page 1 Ela / Cantina / Adora Narrow End Table Model # AXCELA05-SMB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCELA05-SMB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BACK TOP SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM... - Page 8 Pre-Assembly Information Model # AXCELA05-SMB Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm CAM LOCK ALLEN KEY QTY 16 QTY 4 SETS QTY 1 WOOD DOWEL HANDLE M4 X 15mm Ø8 X 30mm QTY 1 SET QTY 16 Required - Flathead screwdriver Phillips screwdriver...
- Page 9 Components - Key Diagram Model # AXCELA05-SMB...
- Page 10 Assembly Model # AXCELA05-SMB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front F . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides GL , GR to Drawer Front F .
- Page 11 Assembly Model # AXCELA05-SMB Step 3 1. Slide Drawer Bottom I firmly into slots on Drawer Sides GL , GR and Drawer Front F . 2. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 3.
- Page 12 Assembly Model # AXCELA05-SMB Step 4 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front F .
- Page 13 Assembly Model # AXCELA05-SMB Step 5 1. Insert Wood Dowels 5 into guide holes on parts BL , BR , C , D , E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 14 Assembly Model # AXCELA05-SMB Step 6 1. Align Wood Dowels with guide holes and attach Bottom Frame D to Right Side BR . 2. Use three Allen Key Screws 1 to attach Bottom Frame D through guide holes to pre-drilled holes of Right Side BR . 3.
- Page 15 Assembly Model # AXCELA05-SMB Step 7 1. Align Wood Dowels with guide holes and attach Back E and Top Shelf C to Right Side BR .
- Page 16 Assembly Model # AXCELA05-SMB Step 8 1. Align Wood Dowels with guide holes and attach parts C , D , E to Left Side BL . 2. Use three Allen Key Screws 1 to attach Bottom Frame D through guide holes to pre-drilled holes of Left Side BL .
- Page 17 Assembly Model # AXCELA05-SMB Step 9 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Use six Allen Key Screws 1 to attach Sides BL , BR through guide holes to pre-drilled holes of Top A . 3.
- Page 18 Assembly Model # AXCELA05-SMB Step 10 1. Insert assembled drawer into glides on assembled table.
