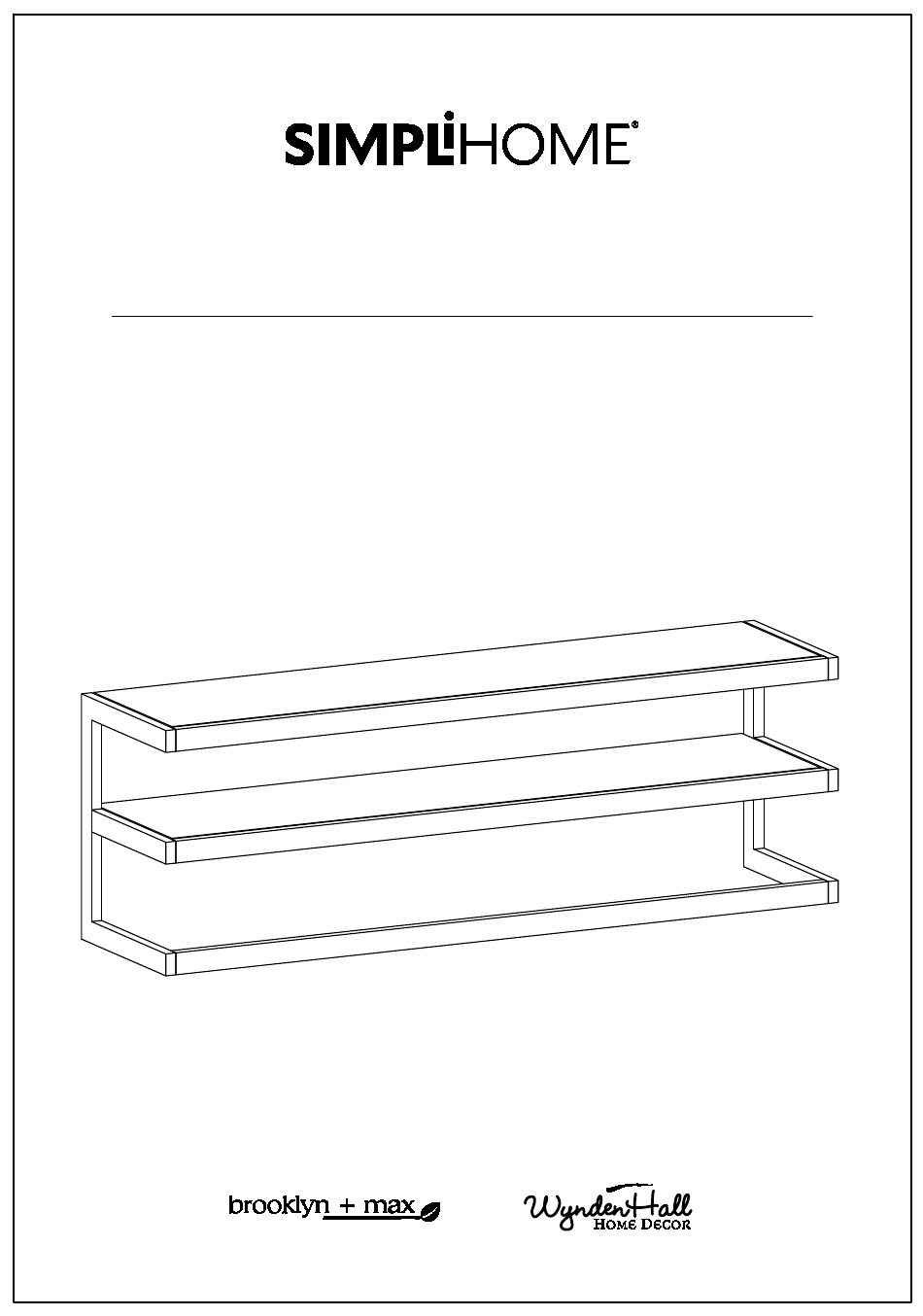

- Page 1 Erina / Cecilia / Larny Low TV Media Stand Model # AXCERN-07...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AXCERN-07 Part Description SHELF LEFT SIDE QTY 2 QTY 1 RIGHT SIDE UPPER BAR QTY 1 QTY 2 LOWER BAR QTY 1... -
Page 9: Hardware Description
Pre-Assembly Information Model # AXCERN-07 Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT M6 X 20mm Ø10 / Ø6 x 1.5 mm Ø16 / Ø6 x 1 mm QTY 12 QTY 12 QTY 34 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1... - Page 10 Components - Key Diagram Model # AXCERN-07...
- Page 11 Assembly Model # AXCERN-07 Step 1 1. Align Upper Bars C and Lower Bar D to Right Side BR . 2. Use two Bolts 1 , two Lock Washers 2 and two Washers 3 to secure each part C , D with BR . 3.
- Page 12 Assembly Model # AXCERN-07 Step 2 1. Repeat Step-1 for Left Side BL .
- Page 13 Assembly Model # AXCERN-07 Step 3 1. Attach top Shelf A to assembled metal frame. 2. Use eleven Phillips Screws Round Head 4 and eleven Washers 3 to secure Shelf A and metal frame. 3. Use Phillips screwdriver to snugly tighten Screws.
- Page 14 Assembly Model # AXCERN-07 Step 4 1. Repeat Step-3 for the second Shelf A .
- Page 15 Assembly Model # AXCERN-07 Step 5 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 6 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
