SIMPLIHOME Brooklyn+Max WyndenHall AXCELA16-SMB Manual

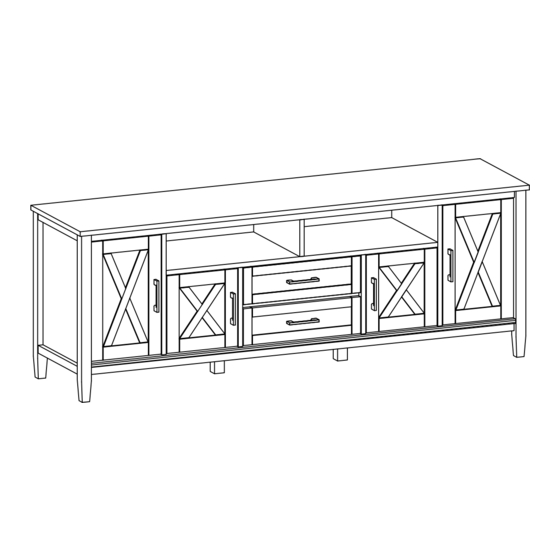

Ela / cantina / adora 72 inch tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual

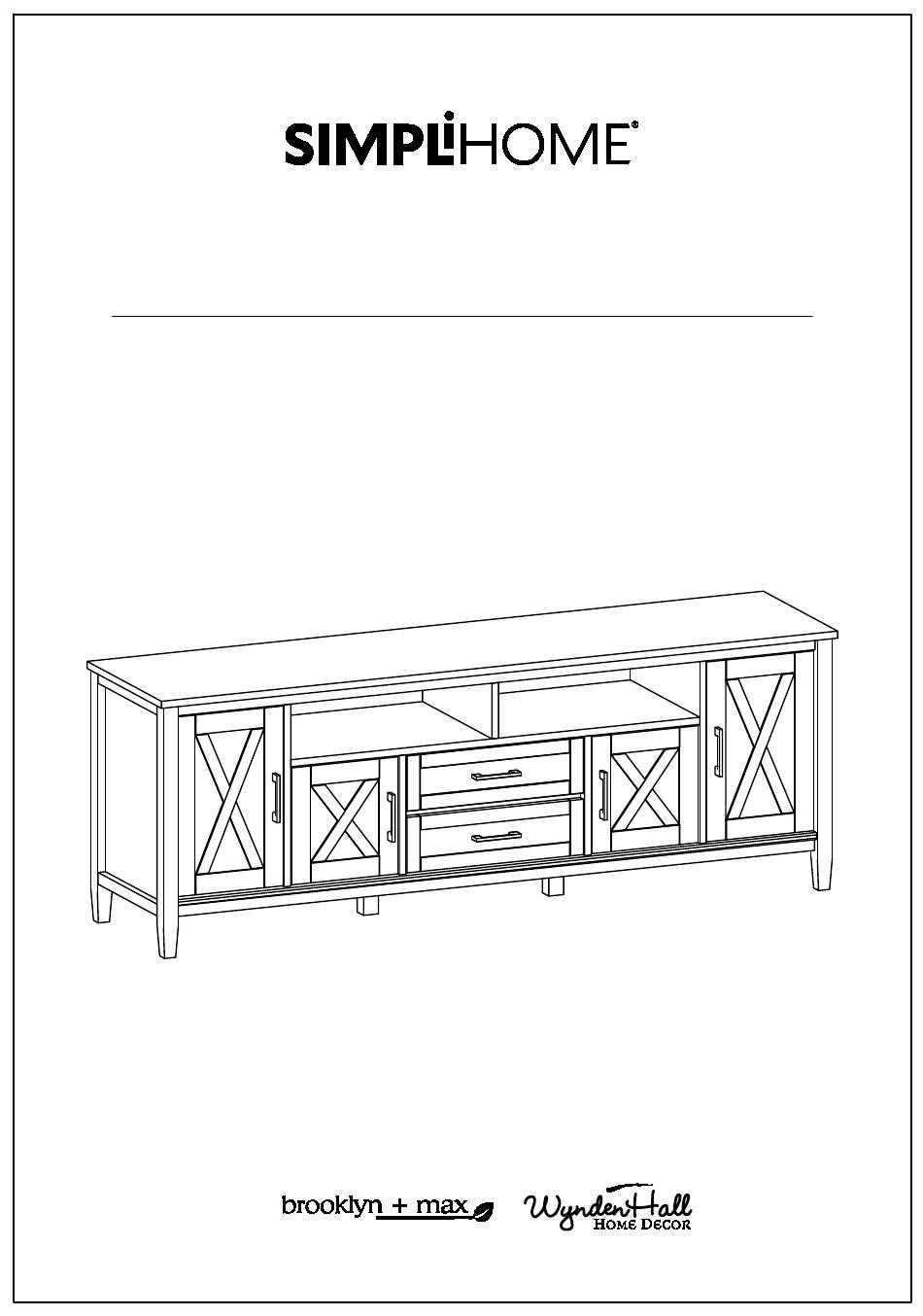

Ela / Cantina / Adora
72 Inch TV Media Stand
Model # AXCELA16-SMB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brooklyn+Max WyndenHall AXCELA16-SMB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME Brooklyn+Max WyndenHall AXCELA16-SMB

Summary of Contents for SIMPLIHOME Brooklyn+Max WyndenHall AXCELA16-SMB

  • Page 1 Ela / Cantina / Adora 72 Inch TV Media Stand Model # AXCELA16-SMB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.

  • Page 8: Maximum Load 25 Lbs

    WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over.

  • Page 9: Bottom Frame

    Pre-Assembly Information Model # AXCELA16-SMB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 TOP SHELF CENTRE SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 1 TOP DIVIDER MIDDLE LEFT DIVIDER MIDDLE RIGHT DIVIDER QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER...
  • Page 10 Pre-Assembly Information Model # AXCELA16-SMB Part Description LARGE DOOR SMALL DOOR LEFT BACK PANEL QTY 2 QTY 2 QTY 1 Warning Label TOP BACK PANEL RIGHT BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM SUPPORT LEG FLIP DOWN DOOR DRAWER FRONT QTY 2...
  • Page 11 Pre-Assembly Information Model # AXCELA16-SMB Hardware Description CAM LOCK PIN ALLEN KEY SCREW HANDLE ALLEN KEY CAM LOCK M6 X 30mm M4 X 15 mm QTY 1 QTY 6 SETS QTY 34 QTY 28 SETS PHILLIPS SCREW WOOD DOWEL PHILLIPS SCREW ROUND HEAD M3 X 15mm MAGNET AND PLATE...
  • Page 12 Components - Key Diagram Model # AXCELA16-SMB...
  • Page 13 Assembly Model # AXCELA16-SMB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front Q . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides RL , RR . 2.
  • Page 14 Assembly Model # AXCELA16-SMB Step 3 1. Slide Drawer Bottom T firmly into slots on Drawer Sides RL , RR and Drawer Front Q . 2. Align Drawer Back S with Drawer Bottom T and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side RL , RR .
  • Page 15 Assembly Model # AXCELA16-SMB Step 4 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front Q .
  • Page 16 Assembly Model # AXCELA16-SMB Step 5 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Divider GL , GR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Wood Dowels 5 into guide holes on each Divider GL , GR . 4.
  • Page 17 Assembly Model # AXCELA16-SMB Step 7 1. Align Cam Lock Pins with guide holes and attach Dividers GL ,GR to Centre Shelf E . 2. Insert six Cam Locks 2 into guided holes on Centre Shelf E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 18 Assembly Model # AXCELA16-SMB Step 8 1. Attach six Cam Lock Pins 2 into pre-drilled holes on Top Shelf D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 5 into guide holes on Top Divider F . 4.
  • Page 19 Assembly Model # AXCELA16-SMB Step 9 1. Align Wood Dowels with guide holes and attach Divider F to Shelf D . 2. Use three Allen Key Screws 1 to attach Divider F through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 20 Assembly Model # AXCELA16-SMB Step 10 1. Align Cam Lock Pins with guide holes and attach Dividers GL , GR to Shelf D . 2. Insert three Cam Locks 2 into guided holes on each Divider GL , GR . 3.
  • Page 21 Assembly Model # AXCELA16-SMB Step 11 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR and Divider HL , HR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3.
  • Page 22 Assembly Model # AXCELA16-SMB Step 12 1. Align Cam Lock Pins with guide holes and attach Dividers HL , HR to Shelf D . 2. Insert six Cam Locks 2 into guided holes on Shelf D . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 23 Assembly Model # AXCELA16-SMB Step 13 1. Align Wood Dowels with guide holes and attach Bottom Frame C to Dividers GL , GR , HL , HR . 2. Use Allen Key Screws 1 to attach Bottom Frame C through guide holes from Bottom Frame C to pre-drilled holes of Dividers GL , GR , HL , HR .
  • Page 24 Assembly Model # AXCELA16-SMB Step 14 1. Align Cam Lock Pins with guide holes and attach Sides BL , BR to Bottom Frame C . 2. Insert six Cam Locks 2 into guided holes on Bottom Frame C . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 25 Assembly Model # AXCELA16-SMB Step 15 1. Align Wood Dowels with guide holes and attach Top A to parts BL , BR , HL , HR , F . 2. Attach Top A to Sides BL , BR using six Allen Key Screws 1 (Three Screws on each Side). 3.
  • Page 26 Assembly Model # AXCELA16-SMB Step 16 1. Align Bottom Support Legs O with pre-drilled holes on back of Bottom Frame C . Use Phillips Screwdriver to tighten four Phillips Screws 15 .
  • Page 27 Assembly Model # AXCELA16-SMB Step 17 Warning Label Note: The back of the TV frame does not have pre-drilled holes to attach the back panels. 1. Attach parts M , N , LL , LR to back frame by using Phillips Screws Round Head 6 . 2.
  • Page 28 Assembly Model # AXCELA16-SMB Step 18 1. Attach Adjustable Hinges 9 to Doors J , K using Phillips Screws 10 into pre-drilled holes on Doors J , K . 2. Attach Adjustable Hinges 9 on Doors J , K to parts BL ,BR , HL , HR using Phillips Screws 10 into guide holes on parts BL ,BR , HL , HR .
  • Page 29 Assembly Model # AXCELA16-SMB Step 19 NOTE: The screwdriver is not included in the hardware pack.

  • Page 30: Important Note

    Assembly Model # AXCELA16-SMB Step 20 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 31 Assembly Model # AXCELA16-SMB Step 21 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 16 for each Cabinet Shelf I in desired location. 2. Two Shelf Supports 16 may be used on back top of each Cabinet Shelf I as a tipping restraint.
  • Page 32 Assembly Model # AXCELA16-SMB Step 22 1. Insert assembled drawer into glides on assembled TV.
  • Page 33 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 23 NOTE: The screwdriver is not included in the hardware pack.
  • Page 34 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
