Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall AXCERN-14

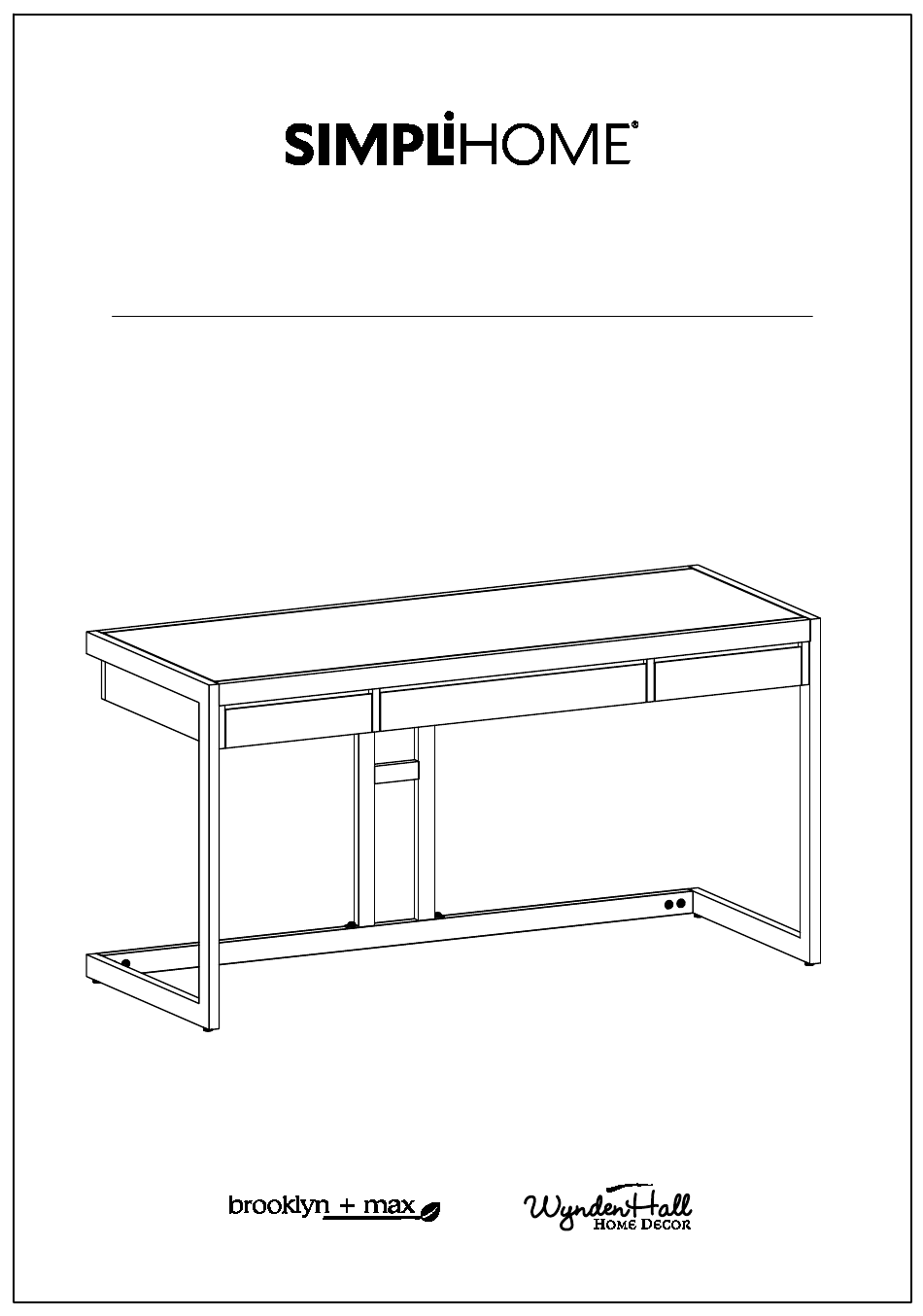

- Page 1 Erina / Cecilia / Larny Desk Model # AXCERN-14...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCERN-14 Part Description LEFT SIDE QTY 1 QTY 1 RIGHT SIDE UPPER BAR QTY 1 QTY 1 LOWER BAR BACK FRAME SUPPORT QTY 1 QTY 1...
-
Page 8: Lock Washer
Pre-Assembly Information Model # AXCERN-14 Hardware Description ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY BOLT M6 X 20mm M6 X 35mm M6 X 60mm QTY 14 QTY 6 QTY 6 LOCK WASHER WASHER Ø10 / Ø6 x 1.5 mm Ø16 / Ø6 x 1 mm ALLEN KEY QTY 26... - Page 9 Components - Key Diagram Model # AXCERN-14...
- Page 10 Assembly Model # AXCERN-14 Step 1 1. Remove the drawers from Top A by pressing the locks on the glides.
- Page 11 Assembly Model # AXCERN-14 Step 2...
- Page 12 Assembly Model # AXCERN-14 Step 3...
- Page 13 Assembly Model # AXCERN-14 Step 4 1. Align Right Side BR to Top A , Lower Bar D and Upper Bar C . 2. Repeat Step 3 and Step 4 for Right Side BR .
- Page 14 Assembly Model # AXCERN-14 Step 5...
- Page 15 Assembly Model # AXCERN-14 Step 6 1. Attach Back Frame Support E to Upper Bar C and Lower Bar D . 2. Use four Allen Key Bolts 1 , four Lock Washers 4 and four Washers 5 to secure part E , C with D . 3.
- Page 16 Assembly Model # AXCERN-14 Step 7 1. Insert assembled drawers into glides on assembled desk. 2. Drawers will lock into place with plastic locks on the drawer glides. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 17 Assembly Model # AXCERN-14 Step 8 YOU MUST...
