Summary of Contents for Roberts Revival RD70DG

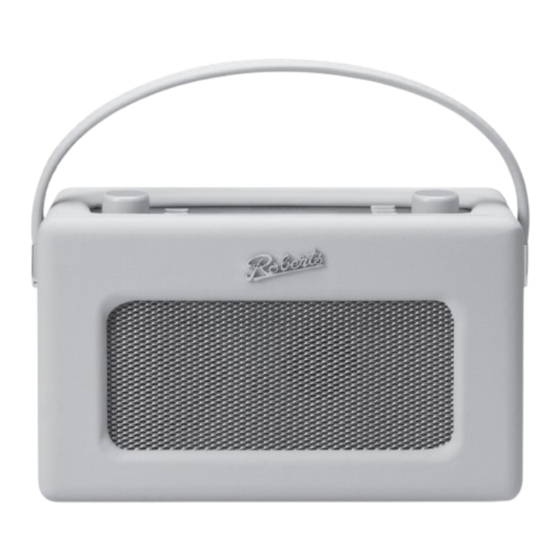

- Page 1 User Manual of Product 1: Roberts Revival RD70DG FM/DAB/DAB+ Digital Radio with Bluetooth - Dove Grey...
- Page 2 DAB / DAB+ / FM RDS / Bluetooth portable digital radio with clock and alarms RD70 Please read this manual before use...
-
Page 3: Table Of Contents
Contents Controls .................2-3 ............16 Battery operation ..............3 ............17-18 Navigation controls ..............4 ..............19 ..........5 ................19 Operating your radio - DAB ............6 ..............19 ................20 Selecting a station - DAB............7 Secondary services - DAB............7 Equaliser function ..............20-21 Finding new stations - DAB ............7 Software version ..............21 Manual tuning - DAB ..............8 ................21... -
Page 4: Controls
Controls Sleep 1. On / Off / Volume control 7. Tuning / Select / Snooze control 13. Menu button 2. Headphone socket 8. Bluetooth indicator 14. Favourite button 3. Auxiliary Input socket 9. Next button 15. Info button 4. Mode / Bluetooth Pair button 10. -
Page 5: Battery Operation
Controls (underneath the radio) 17. DC Input socket 18. Line Output socket 19. Battery compartment 20. Micro USB socket (inside battery compartment for service use only) Line 7.5V /0.8A 17 18 Battery operation 1. Remove the battery cover located underneath the unit by applying pressure to the catch in the direction shown by the arrow and then lifting up the cover. -
Page 6: Navigation Controls
Navigation controls This page describes the basic means of controlling your RD70 radio. Detailed instructions for each operating mode are given in the later sections of this book. 1. Pressing and releasing the On/Off control brings your radio out of the Standby mode if running from the mains or switches it on if using batteries. - Page 7 Whenever the adaptor is used the batteries are automatically disconnected. 5. The display on the radio will show 'Revival by Roberts'. During short time the current time will appear on the display.
-
Page 8: Operating Your Radio - Dab
Operating your radio - DAB 1. Carefully extend the telescopic aerial fully. Scan 16:34 Scanning... 2. Press the On/Off control to switch on your radio. Stations radio will remember the mode used and then switch on in that mode the next time it is used. -
Page 9: Selecting A Station - Dab
Selecting a station - DAB 16.34 Heart 1. Press On/Off to switch on the radio. More music 2. Press Mode until the 'DAB' mode is selected. variety on Heart 3. Rotate Tuning to step through the list of available stations. 4. -
Page 10: Manual Tuning - Dab
Manual tuning - DAB 16.34 Station List > Manual tuning allows you to tune your radio to a particular DAB frequency in Band III. Scan > Manual Tune Any new stations found will be added to the station list. This function can also be used >... -
Page 11: Prune Stations - Dab
Prune stations - DAB If you move to a different part of the country, some of the stations which were listed may 16.34 no longer be available. Also, from time to time, some DAB services may stop broadcasting, Station List >... -
Page 12: Manual Tuning - Fm
Manual tuning - FM 16.34 103.40MHz 1. Rotate Tuning to tune to a station.The frequency will change in steps of 50kHz. Heart FM - The 2. Adjust the Volume. best variety of hits Scan sensitivity setting - FM 16.34 Your radio will normally scan for FM broadcasts which are strong enough to give good reception. Scan Setting Strong St >... -
Page 13: Display Options - Dab / Fm / Bluetooth
Display options - DAB / FM / Bluetooth Scrolling text (DAB and FM) Your radio has a range of display options when in DAB, FM and Bluetooth modes:- 16.34 Heart 1. Press the Info button to cycle through the various options. More music variety on Heart... -
Page 14: Presetting Stations
Presetting stations in DAB and FM modes Save to Preset 16.34 1: (Empty) You may store your preferred DAB and FM radio stations to the preset station memories. There are 20 memory 2: Heart presets in your radio, 10 for DAB and 10 for FM. Presets are remembered by your radio in the event of a power failure. 3: BBC Radio 1 4: (Empty) The procedure for setting presets and using them to tune stations is the same for FM and DAB modes, and is described... -
Page 15: Connecting Bluetooth Devices
Bluetooth mode your moblie phone, computer, tablet etc. through your radio's loudspeaker. to it. Connecting Bluetooth devices 1. Ensure that the Bluetooth capability on your phone, tablet or PC is enabled. You may need to Bluetooth 16.34 refer to the user documentation for your device, since the method will vary with each device. Pairing... -
Page 16: Connecting And Reconnecting A Bluetooth Device
When you have successfully connected your radio with your chosen Bluetooth device you can start to play your music using the controls on the device. 1. Once playing has started adjust the volume to the required setting using the Volume control on your radio or the connected Bluetooth device. - Page 17 Bluetooth information Bluetooth connectivity performance may vary depending on the connected WiFi networks and cordless phones generally use similar radio frequencies Bluetooth devices. Please refer to the Bluetooth capabilities of your device to Bluetooth and may interfere with one another. If any interference is noticed, then try relocating the radio or one of the other devices.
- Page 18 Setting the clock format Time/Date 16.34 The clock display used in Standby mode and on the playing mode screens can be Set Time/Date > set to 12 or 24 hour format. The selected format is then also used when setting Auto Update from DAB >...
- Page 19 Setting the alarm clock Your radio has two separate alarms which can be set to wake you to DAB, FM radio or buzzer Alarm 16.34 alarm. Each alarm can be set to sound once, daily, on weekdays or at weekends. In the event of a Alarm 1 Off 00:00 >...
- Page 20 Setting the alarm clock - cont. Alarm 1 Info. 16.34 8. The alarm can be set to buzzer, DAB radio or FM radio. For whichever Alarm Frequency Daily > radio mode is selected, the radio alarm may be set to any of the stations Wake Up time 07:30 >...
- Page 21 When the alarm sounds the alarm setting procedure. When your radio is set to wake by the radio alarm, your radio will switch to the selected radio station. If the radio cannot Note: If the radio is switched on because of a radio alarm you cannot perform operations which involve the Tuning control since this also acts as the Snooze (see below).
-
Page 22: Equaliser Function
Sleep timer Set Sleep Timer 16.34 Your radio can be set to turn off after a preset time has elapsed. The sleep timer setting can be adjusted between 15 and 90 minutes in increments. 1. Press On/Off to switch on the radio. 15 minutes 2. -
Page 23: Software Version
My EQ Equaliser 16.34 Classic You may set the treble and bass levels as required using the 'My EQ Setup' menu. Jazz 1. Press On/Off to switch on the radio. Press Menu. Rock News 2. Choose and then 'Equaliser'. My EQ My EQ Setup >... -
Page 24: Language Function
Language function System Settings 16.34 Equaliser My EQ > Time/Date > Backlight > 1. Press On/Off to switch on the radio. Language English > Factory Reset > 2. Press Menu. Software Update > Software Version > 3. Choose , 'Language' and then select your desired language. 4. - Page 25 Display brightness adjustment System Settings 16.34 The display backlight will normally become temporarily brighter when using the controls Theme Ruby > Night Mode > backlight level. You can also select for how long the display should remain at the brighter Sleep >...
- Page 26 Headphone socket A 3.5mm Headphone Socket located in the top left hand corner of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. Please be aware that the sensitivity of headphones can vary widely. We therefore recommend setting the volume to a low level before connecting headphones to the radio.
- Page 27 System reset System Settings 16.34 Equaliser My EQ > If your radio fails to operate correctly, or some digits on the display are Time/Date > Backlight missing or incomplete carry out the following procedure. > Language English > Factory Reset >...
-
Page 28: Safety Advice
Safety advice • Your radio and AC/DC adaptor should not be exposed to dripping or placed on the radio or adaptor. Do not allow this radio to be exposed to water, steam or sand. Do not • It is recommended to operate the product such that there is a minimum leave your radio where excessive heat could cause damage such as in distance (10cm recommended) to adjacent objects in order to ensure a parked car where the heat from the sun can build up even though the... - Page 29 Any claim under this guarantee should be made through the dealer from whom the product was purchased. It is likely that your Roberts dealer will be for attention. In the event that it is not possible to return the product to the Roberts dealer from whom it was purchased, please contact Roberts Radio using the contact details on the www.robertsradio.com website.
