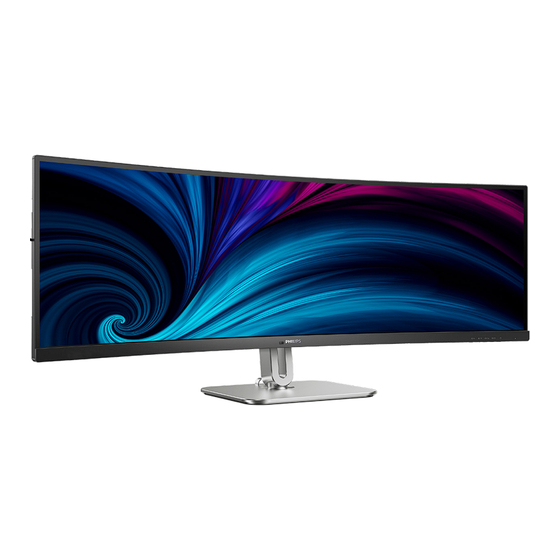

Philips 49B2U5300C User Manual

Curved business monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

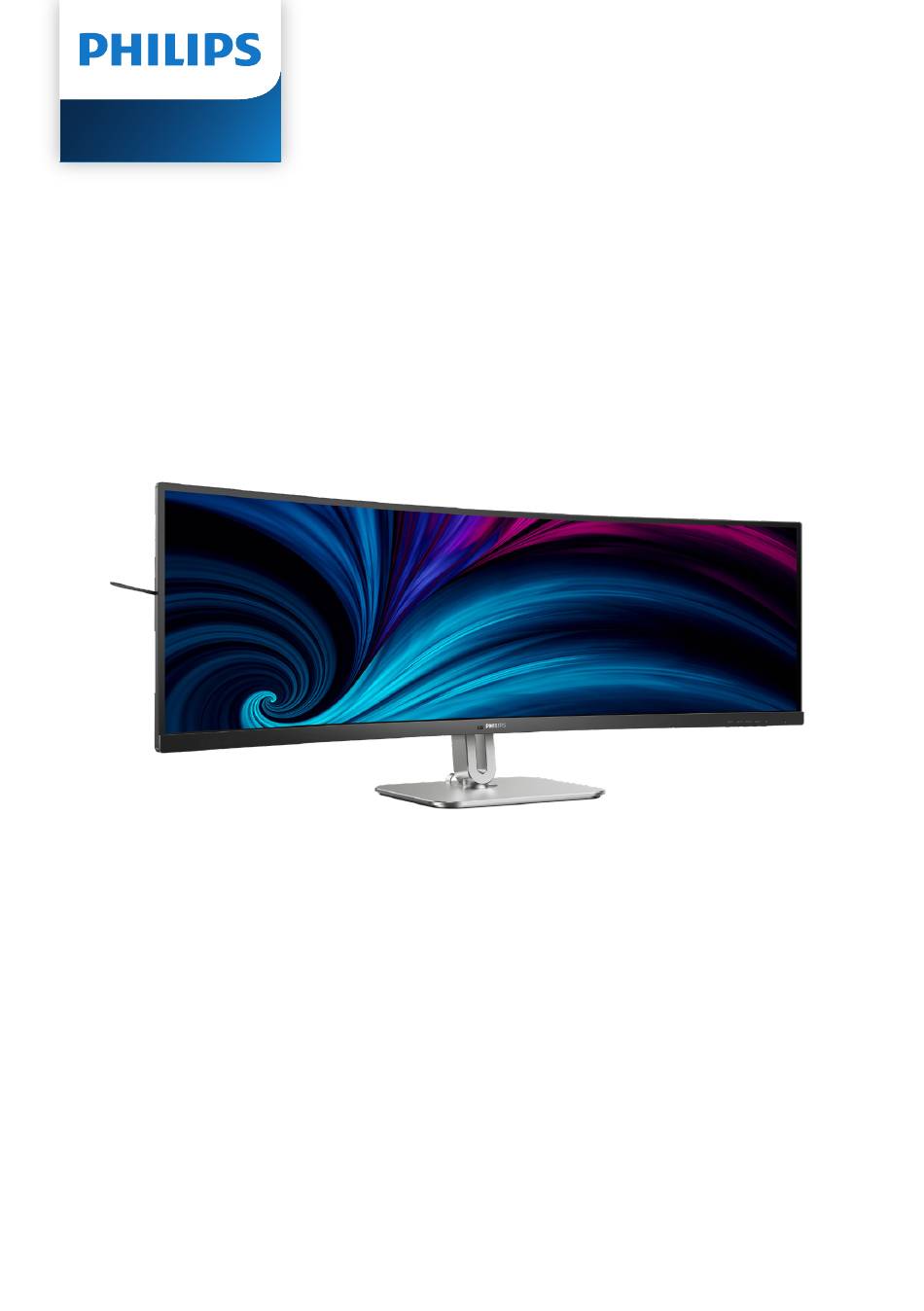

Curved Business
Monitor
5000 Series
EN
User manual
Customer care and warranty
Troubleshooting and FAQs
Register your product and get support at www.philips.com/welcome
49B2U5300C
1
31
35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 49B2U5300C and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 49B2U5300C

Summary of Contents for Philips 49B2U5300C

  • Page 1 Curved Business Monitor 5000 Series 49B2U5300C User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...

  • Page 2: Table Of Contents

    7. Technical Specifications ������������ 26 7.1 Resolution & Preset Modes ..29 8� Power Management ������������������ 30 9� Customer care and warranty ��� 31 9.1 Philips’ Flat Panel Displays Pixel Defect Policy ......... 31 9.2 Customer Care & Warranty ..34...

  • Page 3: Important

    1. Important may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor.
  • Page 4 maximum is exceeded, the monitor Maintenance damage will not be covered under • To protect your monitor from warranty. possible damage, do not put • Do not knock or drop the excessive pressure on the LCD panel. monitor during operation and/or When moving your monitor, grasp transportation.

  • Page 5: Notational Descriptions

    • Temperature: 0°C~40°C • For transportation information, 32°F~104°F please refer to “Technical Specifications”. • Humidity: 20%~80% RH • Do not leave your monitor in a car Important information for Burn-in/ under direct sunlight. Ghost image Note • Always activate a moving screen Consult a service technician if the saver program when you leave monitor does not operate normally or...

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-...

  • Page 7: 2� Setting Up The Monitor

    Monitor 5000 Series VESA mount area until the latch locks the stand. 49B2U5300C Quick Start Register your product and get support at www.philips.com/welcome Power *HDMI *USB C-C/A *USB C-C 3. After attaching the base, erect the monitor with both hands...
  • Page 8 Connecting to your PC Power Switch AC power input HDMI 1 input HDMI 2 input DisplayPort input RJ45 USB C USB upstream USB downstream RJ45 input USB docking (USB C-C) USB downstream USB downstream/USB fast charger Audio (In/Out): audio out / microphone in combo jack USB Type-C Kensington anti-theft lock...
  • Page 9 USB Ethernet Network Adapter” from your program installed list. 6. We recommend to periodically visit the above web link to check for the availability of the most updated driver. Note Please contact Philips service hotline for Mac address clone tool as necessary.
  • Page 10 ON at all times to be able to efficiency of radio transmission of USB use this function. 3.2 devices. Should this happen, please Some selected Philips displays may not try the following methods to help Power or Charge your device when it reduce the effects: enters “Sleep/Standby”...

  • Page 11: Operating The Monitor

    2.2 Operating the monitor Customize your own “USER” key This hot key allows you to setup your Description of the control buttons favorite function key. 1. Press button on the front bezel to enter OSD Menu Screen.    ...
  • Page 12 Description of the On-Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 13 Main menu Sub menu PowerSensor 0, 1, 2, 3, 4 LightSensor Input 1 HDMI 2.0 2 HDMI 2.0 DisplayPort USB C Auto On, O EasyRead, O ce, Photo, Movie, Game, Economy, SmartImage Picture SmartUniformity, O HDR Premium, HDR Movie, HDR Photo, DisplayHDR 400, SmartImage HDR HDR HLG, HDR Basic, O Adaptive Sync...
  • Page 14 Warning and is easily downloadable through the • To avoid potential screen damage, Philips website. What does SmartControl such as panel peeling, ensure that do? It is an additional software that the monitor does not tilt downward helps control the photo, audio, and the by more than -5 degrees.

  • Page 15: Multiclient Integrated Kvm

    2.3 MultiClient Integrated KVM 2. Enter the On-Screen Display (OSD) menu. Go to the KVM tab and What is it? select “Auto”, “USB C”, or “USB up” to switch the monitor view from With the Multiclient Integrated one device to another. To switch to Keyboard Video Mouse (KVM) switch another monitor view, simply repeat feature, it is possible to control two...
  • Page 16 The dual PC setup should look like this: Note PC1: You can use a USB-A/B cable in • Please note that the connection of direction upstream and a HDMI the input source is not automatic cable or a DP cable and connect it and it is necessary to go to the to the USB up...

  • Page 17: Multiview

    5. Now you can move backward to set Why do I need it? the [PIP / PBP Input], [PIP Size], [PIP With the ultra-high-resolution Philips Position], or [Swap]. MultiView display, you can comfortably 6. Press button to confirm your experience a world of connectivity in selection.
  • Page 18 [PBP]: Picture by Picture Small Middle Large Open up a sub-window (main) side-by-side of another (main) signal source. • PIP Position: When PIP is activated, there are four sub-window positions When the sub source is to choose from. not detected: (main) Top-Left Top-Right...

  • Page 19: Remove The Base Assembly For Vesa Mounting

    2.5 Remove the Base Assembly Warning This product is curve design, when for VESA Mounting attach / detach the base, place the Before you start disassembling protective material under the monitor the display base, please follow the and do not press down the monitor to instructions below to avoid any possible avoid the damage.

  • Page 20: 3� Image Optimization

    EasyRead, Office, Photo, Movie, Game, in real-time. Whether you're working Economy, SmartUniformity and Off. with text applications, displaying images, or watching a video, Philips SmartImage  delivers great monitor performance. EasyRead Why do I need it? Office It is ideal to have a monitor that delivers...
  • Page 21 LCD monitors. Typical uniformity is measured • DisplayHDR 400: Meet VESA around 75-80%. By enabling Philips DisplayHDR 400 standard. SmartUniformity feature, display • HDR HLG: Used for radio and uniformity is increased to above television's specific HDR format.

  • Page 22: Smartcontrast

    3.2 SmartContrast 3.3 LightSensor What is it? What is it? Light Sensor is a unique and intelligent It is a unique technology that way of optimizing picture quality by dynamically analyzes displayed content measuring and analyzing the incoming and automatically optimizes a monitor's signal to automatically adjust picture contrast ratio for maximum visual clarity quality settings.

  • Page 23: Hdr

    3.4 HDR HDR Settings in Windows 11/10 system. Steps 1. Right-click on the desktop, and enter Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows 10 edition is required.

  • Page 24: 4� Designs To Prevent Computer

    • Reposition your screen to the appropriate measurment syndrome (CVS) according to your own height. 4. Choose a Philips monitor for viewing Philips monitor is designed to prevent that is easy on the eyes. eye strain caused by prolonged • Anti-glare screen: This feature computer use.

  • Page 25: 5� Powersensor

    5. PowerSensor™ detection signal for distances up to 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even • PowerSensor works on principle when the user is within 100 cm or 40 of transmission and reception of inches of the display, step up signal strength when wearing black or...
  • Page 26 • PowerSensor function is designed to work in Landscape mode (horizontal position) only. After PowerSensor turn on it, it will automatically turn Off if the monitor is used in Portrait mode (90 degree/vertical position); it will automatically turn ON if monitor is returned to its default Landscape position.

  • Page 27: 6� Adaptive Sync

    6. Adaptive Sync AMD Radeon R7 260 • Processor A-Series Desktop and • Mobility APUs AMD A10-7890K • Adaptive Sync AMD A10-7870K • AMD A10-7850K • PC gaming has long been an imperfect AMD A10-7800 • experience because GPUs and monitors AMD A10-7700K •...

  • Page 28: Technical Specifications

    7. Technical Specifications Picture/Display Display Panel Type Backlight W-LED Panel Size 48.8" W ( 124 cm ) Aspect Ratio 32:9 Pixel Pitch 0.3114(W) x 0.3114(H) mm Contrast ratio(typical) 3000:1 Native Resolution 3840 x 1080 @ 60 Hz 3840 x 1080 @ 120 Hz (HDMI) Maximum Resolution 3840 x 1080 @ 144 Hz (DP/USB-C) Viewing Angle...
  • Page 29 USBC: USB PD version 3.0, typical 90W (5V/3A, 7V/3A, Power Delivery 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A) USB-A: x1 fast charge B.C 1.2, up to 7.5W (5V/1.5A) Super Speed USB-C/USB-A: USB 3.2 Gen2, 10 Gbps Convenience USER convenience Built-in speaker 5 W x 2 MultiView PIP/PBP mode, 2×devices English, German, Spanish, Greek, French, Italian,...
  • Page 30 3. SmartUniformity and Delta E information are included in the sheets located in the box. 4. In order to update the monitor’s firmware to the latest version, Please download the SmartControl software from Philips website. It is necessary to be connected to a network when updating the firmware on SmartControl over-the-air (OTA).

  • Page 31: Resolution & Preset Modes

    7.1 Resolution & Preset Modes Note 1. Please notice that your display works best at native resolution of 3840 H. freq Resolution V. freq (Hz) x 1080 @ 60Hz. For best display (kHz) quality, please follow this resolution 31.47 720 x 400 70.09 recommendation.

  • Page 32: 8� Power Management

    8. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.

  • Page 33: 9� Customer Care And Warranty

    Other Pixel Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 34 To qualify for repair or replacement due to pixel defects during the warranty Black Dot Defects period, a TFT Monitor panel in a Philips Black dot defects appear as pixels or flat panel monitor must have pixel sub-pixels that are always dark or 'off'.
  • Page 35 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...

  • Page 36: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
  • Page 37 If the problem Visible signs of smoke or sparks persists after you have tried these • Do not perform any troubleshooting solutions, contact a Philips customer steps service representative. • Disconnect the monitor from the...
  • Page 38 Service contact information listed in • Turn on your display and then turn on your PC. the Important information manual and contact a Philips customer service What is the recommended refresh representative. rate for LCD display? * Functionality different according to Ans.: Recommended refresh rate in...
  • Page 39 PC, workstation or Mac? ethyl alcohol, ethanol, acetone, hexane, etc. Ans.: Yes. All Philips LCD displays are fully compatible with standard Can I change the color setting of PCs, Macs and workstations. my display?
  • Page 40 Philips sales representative for For best display, please use this more information. resolution. Q10: Are Philips LCD displays Plug-and- Q13: How to unlock/lock my hot key? Play? Ans.: To lock the OSD, press and hold Ans.: Yes, the displays are Plug-and-...
  • Page 41 10.3 Multiview FAQs Can I enlarge the PIP sub- window? Ans.: Yes, there are 3 sizes to select: [Small], [Middle], [Large]. You can press to enter OSD menu. Select your preferred [PIP Size] option from the [PIP / PBP] main menu.
  • Page 42 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
