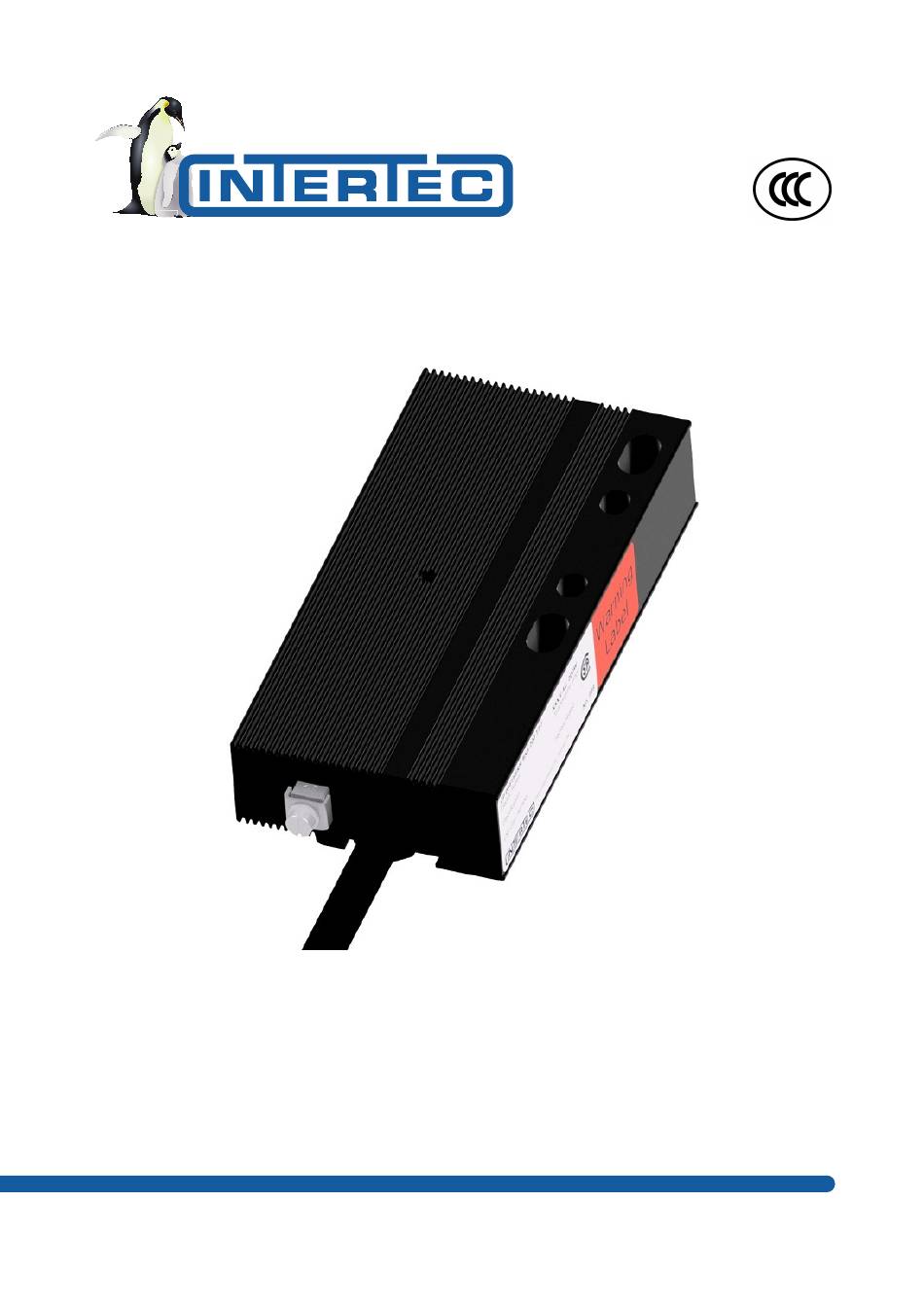

  • Page 1 Operating Instructions SL DSETHERM DC.A HOM2540382603en-1 • 12/06/2024...
  • Page 2: Table Of Contents

    www.intertec.info 1 General .................................. 3 2 Use...................................  3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Technical Data ................................  4 7 Installation ................................ 4 8 Connection................................
  • Page 3: General

    Operating Instructions SL DSETHERM DC.A General GB/T 3836.1-2021 : Explosive atmospheres - Part 1: Equipment – General requirements These operating instructions describe the safe and GB/T 3836.2-2021 : Explosive atmospheres - Part 2: proper way to work with the device. The safety information and instructions given as well as the local Equipment protection by flameproof enclosures “d”...
  • Page 4: Safety Information

    Operating Instructions SL DSETHERM DC.A Switching capacity of fault 10 A / 265 V AC NOTICE alarm (AM) Connecting cable Silicone hose cable, NOTE notch- and oil resistant, 3 It is essential to pay attention to this safety advice as you x 1,5 mm²...
  • Page 5: Connection

    Operating Instructions SL DSETHERM DC.A Connection NOTICE INFO Carefully remove The device may only be connected up and secured by a When removing from the packaging and during trained person, taking into account the "rated voltage" transport, the connection line must not be stressed or and "rated current"...
  • Page 6: Commissioning

    Operating Instructions SL DSETHERM DC.A Junction box Junction box Heater Heater bn=brown bu=blue ye/gn=yellow/green bn=brown bl=blue ye/gn=yellow/green Illustration 4: SL ..THERM with TAE Illustration 5: SL ..THERM with TS Check heater and all mounting parts for tight fit. Check heater, supply lines, any thermostats and junction boxes for safety-relevant damage.
  • Page 7: Maintenance

    Operating Instructions SL DSETHERM DC.A If the heater fails, check the installation. Carry out a CAUTION continuity test on the heating circuit. Pay attention to the connection diagram switching point Sufficient heat dissipation must be ensured. thermostat! Unauthorized covers must be removed as otherwise there is the risk of the heater overheating.
  • Page 8: Declaration Of Conformity

    Operating Instructions SL DSETHERM DC.A Please contact your INTERTEC contact person or Declaration of Conformity directly contact manufacturer, INTERTEC-Hess GmbH, INTERTEC-Hess GmbH Raffineriestrasse 8, 93333 Neustadt/Donau, Germany, hereby declares in sole responsibility that the product Raffineriestr. 8 Product / Type designation:...
  • Page 9 Operating Instructions SL DSETHERM DC.A 雹) 中国国家强制性产品认证证书 邑 SiTiiAs Worldwide Access 证书编号:2020322312003002 lntertec Hess_ GmbH 认证委托人名 称: Schroep I erstrasse 37, 85053, I ngo I stadt, Germany 认证委托人地 址: lntertec Hess GmbH 生 产者名 称: 生 产者地 址: Schroep I erstrasse 37, 85053, I ngo I stadt, Germany 生产企业名称:...
  • Page 10 Operating Instructions SL DSETHERM DC.A 雹 CERTIFICATE FOR CHINA COMPULSORY PRODUCT CERTIFICATION 邑 SiTiiAS Worldwide Access CERTIFICATE NO: 2020322312003002 APPLICANT: Intertec Hess GmbH ADDRESS: Schroeplerstrasse 37, 85053 , Ingolstadt, Germany MANUFACTURER: Intertec Hess GmbH ADDRESS: Schroeplerstrasse 37 , 85053, Ingolstadt, Germany...
  • Page 11 Operating Instructions SL DSETHERM DC.A 雹 中国国家强制性产品认证证书 怠 SiTiiAs Worldwide Access 证书编号:2020322312003002 附 件 产品名称: 加热器 型号规格: B,C,D 空,A,B,C,D,E,N K, L, M, N, 0, P, R, S, T , U T6, T5, T4, T3 XXX , TSXX, TAIXX,AM, HI,...
