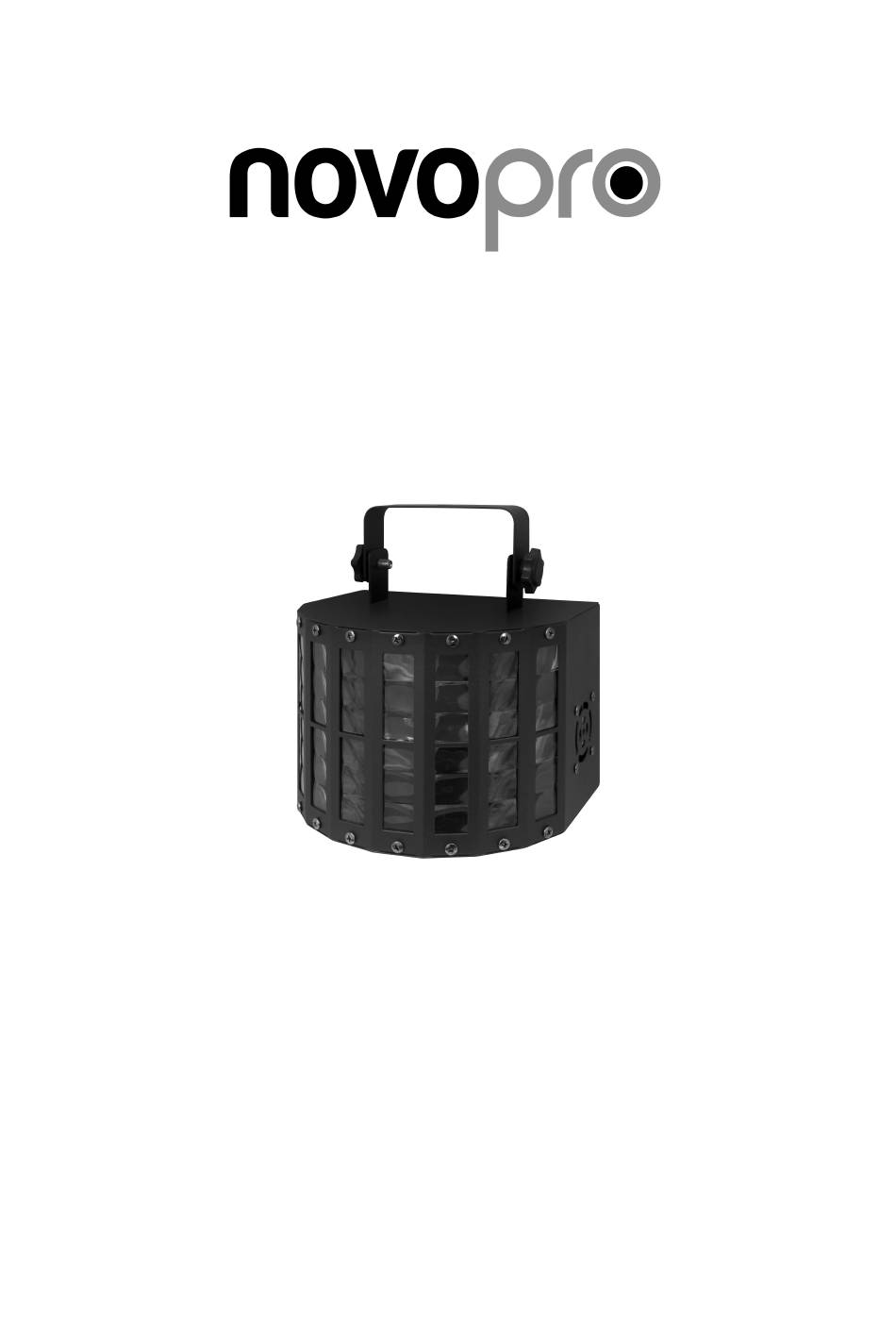

Derby 9 DMX

I N S T R U C T I O N

M A N U A L

Manual version 1.0

This user manual will help you operate this product safely and quickly,

so please spend a few minutes to read through the enclosed information.

Due to continuous product development, please check for the

latest version of this product manual at:

www.novopro.co.uk

Designed and engineered in the UK and manufactured in China for Novopro Ltd.

Novopro Ltd is a trade-only supplier and only supply wholesale to trade resellers.

At the end of the products working life, please take it to a recycling plant for environmentally friendly disposal.

Due to continuous product development, specifications and appearance are subject to change. E&OE.

Need help?

Do you have a question about the Derby 9DMX and is the answer not in the manual?

Page 1 Designed and engineered in the UK and manufactured in China for Novopro Ltd. Novopro Ltd is a trade-only supplier and only supply wholesale to trade resellers. At the end of the products working life, please take it to a recycling plant for environmentally friendly disposal.
Page 2 Thank you for purchasing this Novopro product. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference. This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Page 3 Rear panel functions Key to rear panel diagram DMX Input - 3 pin male XLR interface for DMX connections DMX Output - 3 pin female XLR interface for DMX connections Mains power input IEC socket / AC 220-240V 50/60Hz LED function setting display - shows the various menus and the selected functions MENU button - used to select the different menu items UP button - used to move ‘up’...
Page 4 Main Menu To select any of the menu options, press the MENU button on the rear of the unit to select the mode required. Once you have made a selection then press ENTER to confirm. Use the UP and DOWN buttons to choose the desired menu option. Mode Function Motor speed...
