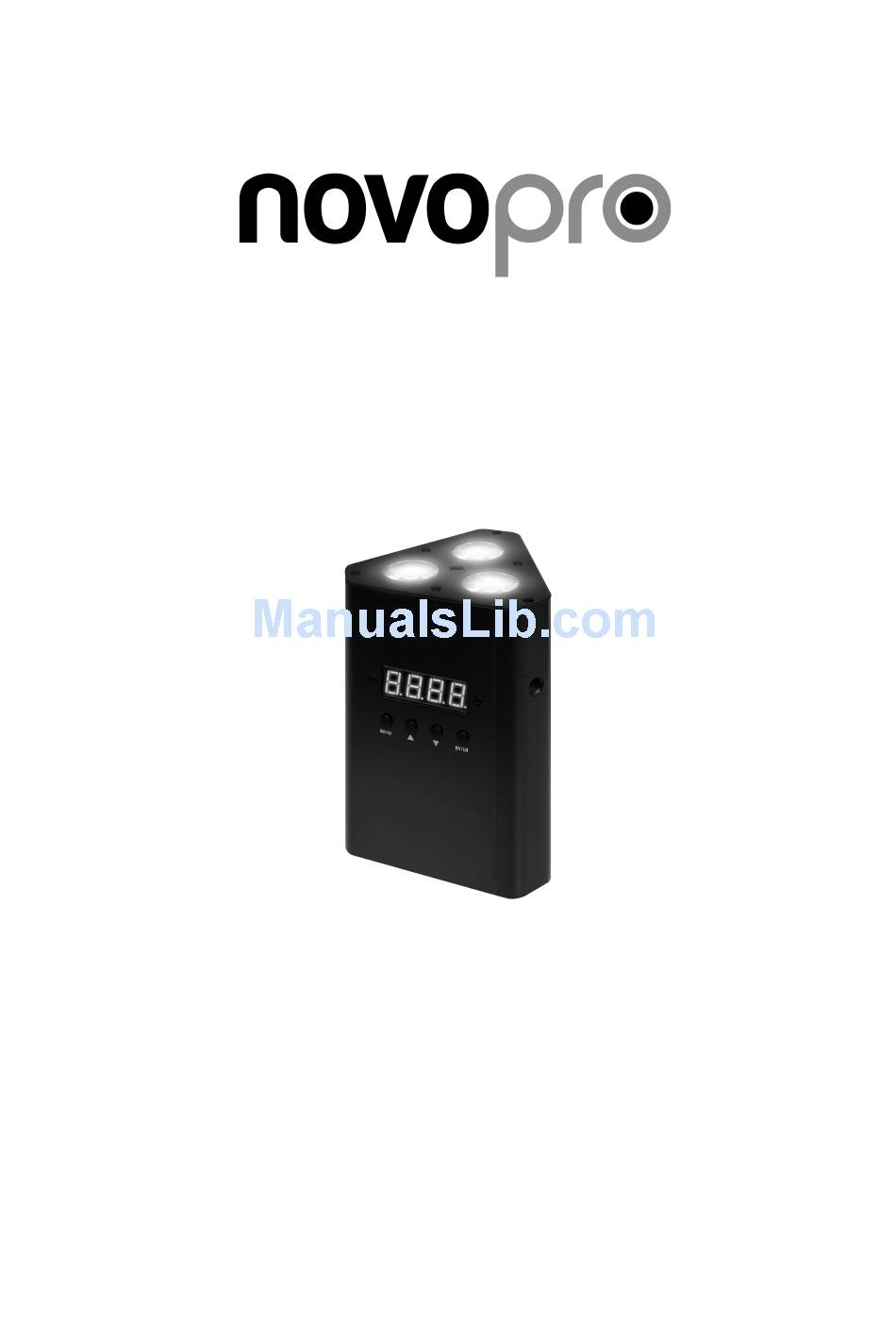

TriLighter 3
I N S T R U C T I O N
M A N U A L
Manual version 1.0
This user manual will help you operate this product safely and quickly,
so please spend a few minutes to read through the enclosed information.
Due to continuous product development, please check for the
latest version of this product manual at:
www.novopro.co.uk
Designed and engineered in the UK and manufactured in China for Novopro Ltd.
Novopro Ltd is a trade-only supplier and only supply wholesale to trade resellers.
At the end of the products working life, please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change. E&OE.
© Copyright Novopro.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Novopro TriLighter 3
Summary of Contents for Novopro TriLighter 3
- Page 1 Designed and engineered in the UK and manufactured in China for Novopro Ltd. Novopro Ltd is a trade-only supplier and only supply wholesale to trade resellers. At the end of the products working life, please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this Novopro product. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference. This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
- Page 3 Rechargeable battery The unit’s battery life depends on the operating mode and on the ambient temperature. Low temperatures will reduce the run time considerably. Before using the unit for the first time, completely charge the battery for up to 5 hours. Important note on transporting lithium ion batteries The contained lithium-ion battery is subject to Dangerous Goods legislation requirements.
- Page 4 Unit features and functions LEDs IR remote control sensor 15. Threaded mounting points Control display screen Safety chain anchor point 16. DMX input Internal built-in microphone 10. IEC mains input 17. DMX output Menu button 11. IEC power link output UP button 12.
- Page 5 Before using the unit for the first time, completely charge the battery for up to 5 hours. Function setting Using the four function buttons on the side of the unit you can set the operating mode of the unit. Press the Menu button to display the different functions (see table below for a description of the functions).
- Page 6 MASTER/SLAVE mode (SLAu) You can link multiple units so that they run together using the programing of the first unit in the chain. The first unit is called the MASTER and all other units are known as SLAVES. To work in Master/Slave mode you need to connect multiple units in a Master/Slave chain using 3 pin DMX cables: 1.
- Page 7 8 channel DMX mode Dimmer Strobe Program Speed Green Blue White Value Value Function Value Function Value Value Value Value Value CH4-CH8 No function 0-255 0-255 0-255 0-255 0-14 Colour 01 15-29 Colour 02 30-44 Colour 03 45-59 Colour 04 60-74 Colour 05 75-89...
- Page 8 Remote control mode (Set) To use the supplied remote control with the unit, first of all you need to set the unit to respond to the remote. Press the Menu button until the display shows Set, then press the Enter key. The display should now show reno (remote), press the Enter button once, the display should now show on, use the UP or DOWN buttons to swap between remote on or OFF.
