P a g e
| 1
Thank you for purchasing the Novopro RGBW LED SCRIM
This user manual will help you to understand the features and operations of the LED
curtain quickly and correctly, so please spend a few minutes to read through this
information.
Please ensure care is taken when folding, packing and unpacking the LED scrim to
avoid damaging the connections and components.
Due to continuous product developments, please check for the latest updated
version of this product manual at:
www.novopro.co.uk

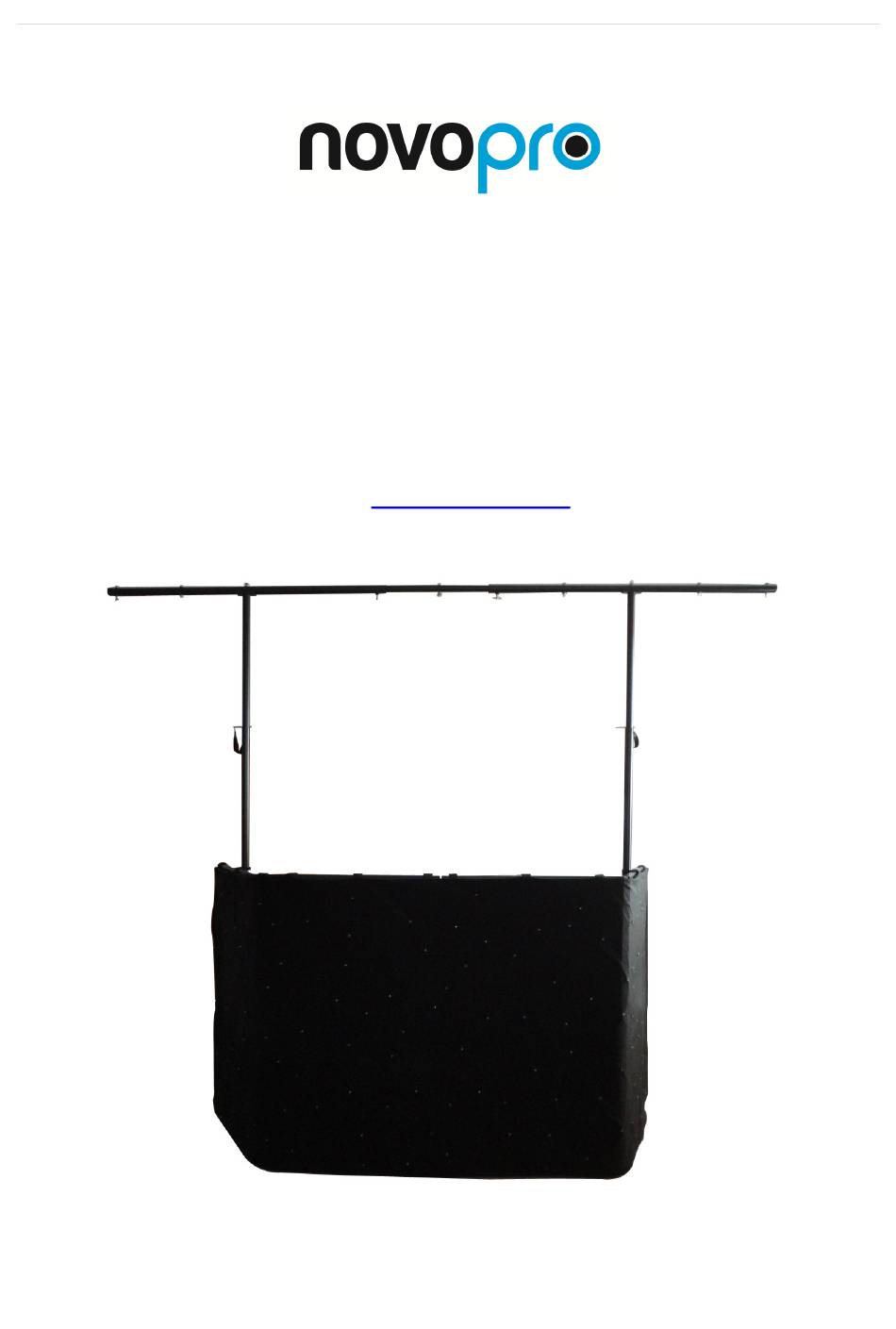

Image above shown fitted to the Novopro SDX booth
Manual V1.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Novopro RGBW LED SCRIM
Summary of Contents for Novopro RGBW LED SCRIM
- Page 1 P a g e Thank you for purchasing the Novopro RGBW LED SCRIM This user manual will help you to understand the features and operations of the LED curtain quickly and correctly, so please spend a few minutes to read through this information.
- Page 2 290CM Please read the following Safety Notes as well as those in the User Manual carefully before connecting, installing, operating or maintaining this product. The contents of this Novopro RGBW LED Scrim package are: 1x LED Scrim 1x Controller 1x Power cable...
- Page 3 . Safety Notes 1. After receiving the Novopro LED Scrim, please open the packing carton to check the goods and all other accessories are consistent with the packing list and in good condition. If anything is found to be missing or damaged by transportation, please contact your place of purchase as soon as possible.
- Page 4 Note: Make sure this product is connected to the earth properly. . Advantages of the Novopro RGBW LED Scrim: 1. SMD LEDs are small and bright. 2. They emit a pure colour and give long life. 3. Cloth material is soft, smooth, lightweight, flexible & can be folded.
-
Page 5: Digital Display
Overview (1) LED Scrim: Note: Grommets have been replaced with high quality Velcro straps on recent models Overview (2) Controller: Digital Display Down Enter... - Page 6 Power In Switch DMX In/Out Curtain Input Overview (3) Controller Description Button Function Function or Menu Display menu or set the selected menu as the function you ENTER need Scroll up the menu or increase the number value of the function you selected Scroll down the menu or decrease the number value of the DOWN...
- Page 7 (5) Controller Operation Installation: (1) After receiving the new LED Scrim, unpack everything and check for any damage and that all accessories are as per the packing list. (2) Carefully unfold the LED Scrim. (3) Hang the LED Scrim on the booth with Velcro straps along the top and down both sides. (4) Connect all the electrical parts such as power cables and control leads as per diagram.
- Page 8 Ⅴ Ⅴ Ⅴ Ⅴ . Program List 1. Program List Program List Program NO. RGB/W LED Scrim Program 1 Colour chase Program 2 All colour fade mode Program 3 All colour flash mode Program 4 Single colour strobe mode Program 5 All on strobe mode Program 6 Red On...
- Page 9 3. DMX Channels Function DMX Channels Function Channel NO. RGBW LED Scrim Controller Data CH 1 Dimmer 0~255 (dark~bright) Strobe 0~255 (slow~fast) CH 2 dimmer 0~255 CH 3 0~255 Green dimmer Blue dimmer 0~255 CH 5 0~255 CH 6 Yellow dimmer...
- Page 10 There are a full range of accessories and other related products available for the SDX booth, please check out the Novopro website for more information. All Novopro products are thoroughly QC checked prior to dispatch but should you have any queries or questions then please contact your place of purchase or contact us at: info@novopro.co.uk...
