Haier HADG6CBS4B Installation And User Manual page 9

INSTALLING THE HOOD
Position the hood at the desired height respecting the minimum height
above the hob.

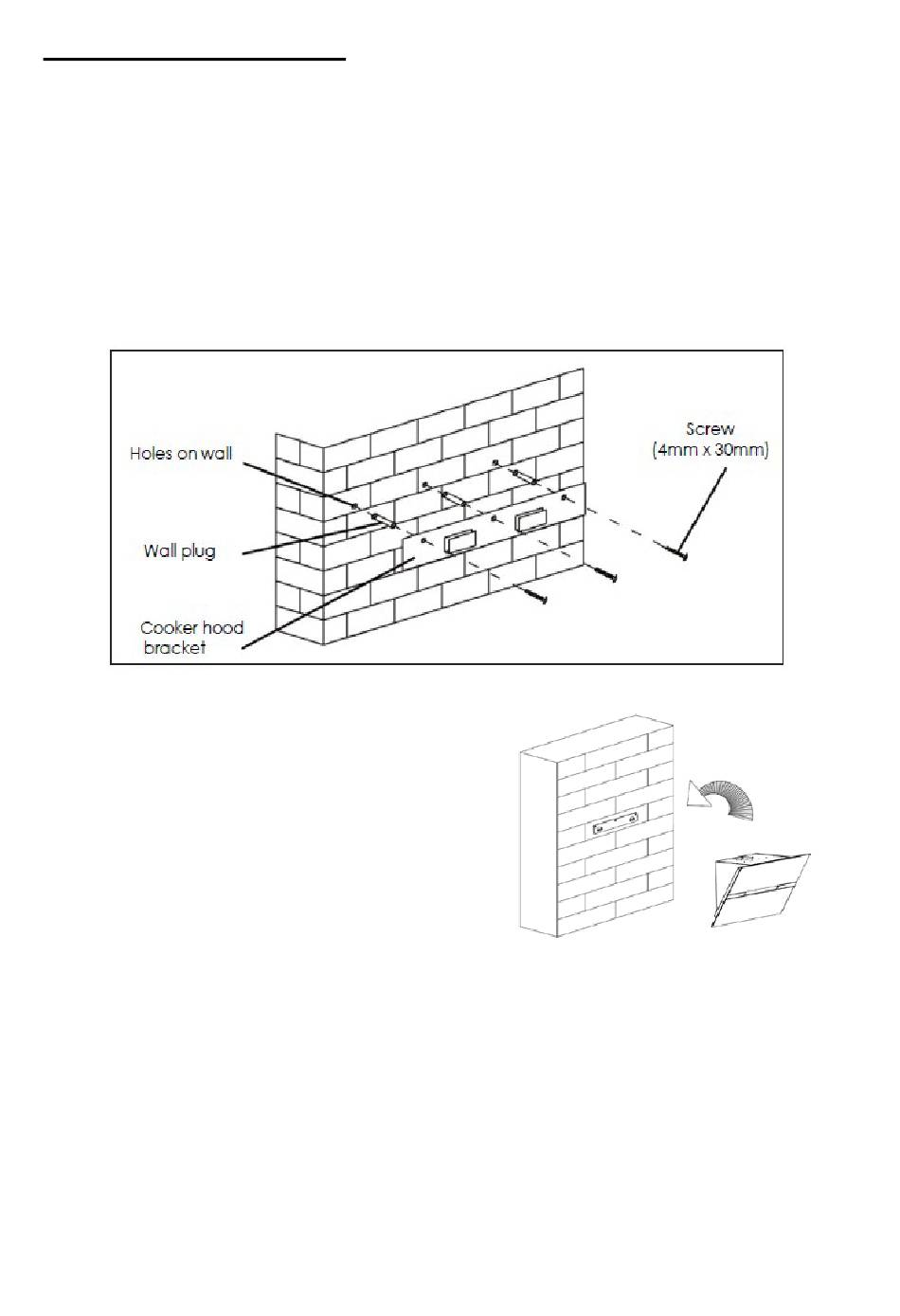

Mark the location of the wall bracket.(Placed the holes between 700 and
800 mm above the worktop) Remove the hood and position the wall bracket
to mark the locations of the holes on the wall.
Drill the 3 holes in the wall to insert the appropriate fastening system (screw
ST4x30mm)..
Hang the hood in the notches of the wall
bracket.
8
