Phason
PBx-10 control kit installation guide
The PBx-10 control board kit (K329001) is a replacement circuit board for the PBx-10 Power Block.
Follow the instructions, in the order they are listed, to replace the circuit board.

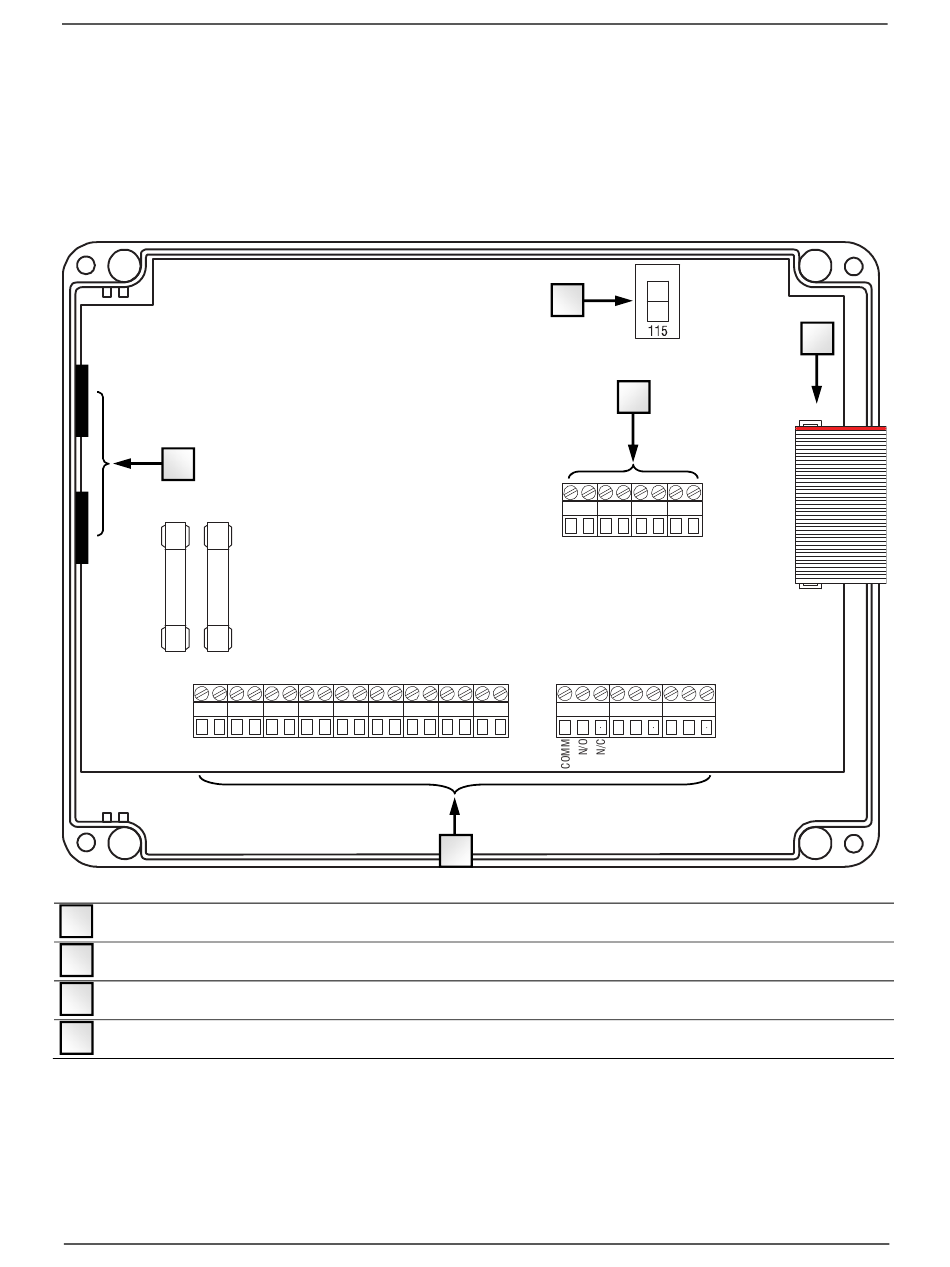

3
F1
F2
VAR1
VAR2 RLY1
1
Display cable: make sure the ribbon cable from the display is properly connected to the socket.
2
Terminal blocks: label all wires and cables before disconnecting them.
3
Triacs: remove the screws fastening the triacs stripping heat sink.
4
Voltage selection switch: set this switch to the correct voltage before installing the replacement circuit board.
32940100
L1 L2
RLY2
RLY3
RLY4
RLY5
RLY6
POWER
2
PBx-10 control kit installation guide
230
4
2
TEMP1
TEMP2 TEMP3 TEMP4
+ FB –
+ FB –
NEUT
ACT-1
ALARM
1
J1
ACT-2
2012-08-07
Advertisement
Related Manuals for Phason PBx-10
Summary of Contents for Phason PBx-10
- Page 1 PBx-10 control kit installation guide PBx-10 control kit installation guide The PBx-10 control board kit (K329001) is a replacement circuit board for the PBx-10 Power Block. Follow the instructions, in the order they are listed, to replace the circuit board.
- Page 2 Removing the old circuit board Before installing the kit or servicing the control, switch OFF the power at the source. 1. Switch off the power to the PBx-10. 2. Remove the cover from the unit. 3. Disconnect the ribbon cable from the socket.
