Phason
iWire Flex Radio installation guide
iWire Flex Radios (
model IWIRE-FLEX
Phason Flex-compatible device and provide wireless RS485 communication with other iWire Radios
and connected devices.
iWire Radios are for users who want to avoid running communication cable between buildings, or to
remote, hard-to-get-to devices or locations. Typical applications include using iWire Radios in place
of expensive trenching of underground CAT5 cable. The system is also ideal for reaching devices,
such as Weather Stations, that are normally mounted outside or in remote locations.
iWire Radios are for use exclusively in OMNI Select systems and are compatible
with all OMNI devices
How iWire works
An iWire network consists of two or more iWire Radios or iWire Flex Radios. One Radio on the
network is a
Master Radio
The Master Radio connects to the communication channel after the RS485 Converter. The Master
Radio communicates with all Remote Radios on the network. The Remote Radios send information
from the OMNI Select devices to the Master.

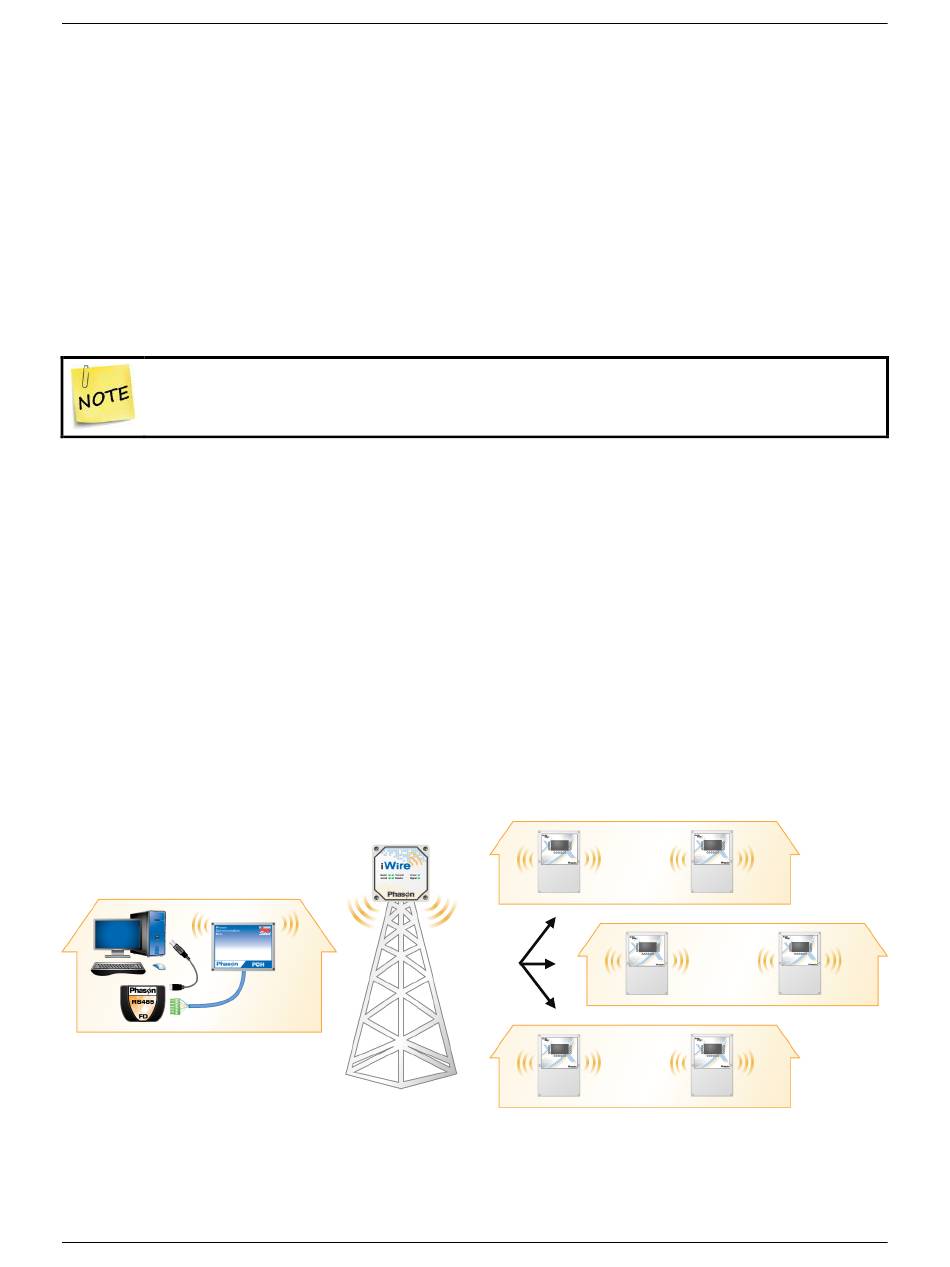

The example below shows an iWire Flex mounted in the Phason Communication Hub (PCH) as the
Master Radio. All other iWires are Remote Radios. A standard iWire Radio is mounted on a tower to
enhance communication between the office and the outer buildings. An iWire Flex is mounted in
each AutoFlex control in the buildings.
iWire Radios used outdoors and have a clear
line of sight have a range of up to 5 miles.
MASTER
iWire Radios used indoors have a
range of up to 500 feet.
33841000
) install inside the Phason Communication Hub (PCH) or any
PB-1 to PB-6 Power Blocks.
except
; all others are
Remote Radios
REMOTE
REMOTES
iWire Flex Radio installation guide
.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phason iWire Flex Radio
Summary of Contents for Phason iWire Flex Radio
- Page 1 OMNI Select devices to the Master. The example below shows an iWire Flex mounted in the Phason Communication Hub (PCH) as the Master Radio. All other iWires are Remote Radios. A standard iWire Radio is mounted on a tower to enhance communication between the office and the outer buildings.
- Page 2 Outdoor temperature probe connection (when connected to the PCH only) If you have the iWire Flex connected to a Phason Communication Hub, you can connect a Phason temperature probe for reading outdoor temperatures in OMNI Select. For more information, read Connecting a temperature probe on page 4.
- Page 3 2. Set the mode switches on all other Radios in the DOWN position. These are the radios that will go in the Flex devices. 3. Plug the radios into the RADIO socket on the Phason Communication Hub, and the SERIAL 1 sockets on the Flex-compatible devices.
- Page 4 Connecting a temperature probe If you have the iWire Flex connected to a Phason Communication Hub, you can connect a temperature probe for reading outdoor temperatures in OMNI Select. You cannot connect a temperature probe if the iWire Flex is connected to any other type of device, such as an AutoFlex.
- Page 5 Phason iWire Flex Radio installation guide Configure OMNI Select for the outdoor temperature probe 1. In the main window of the OMNI Select software, click and then Configuration Site 2. Click Site Information 3. Below Optional hardware accessories, select OUT-1.
