Sony ICF-24 Service Manual

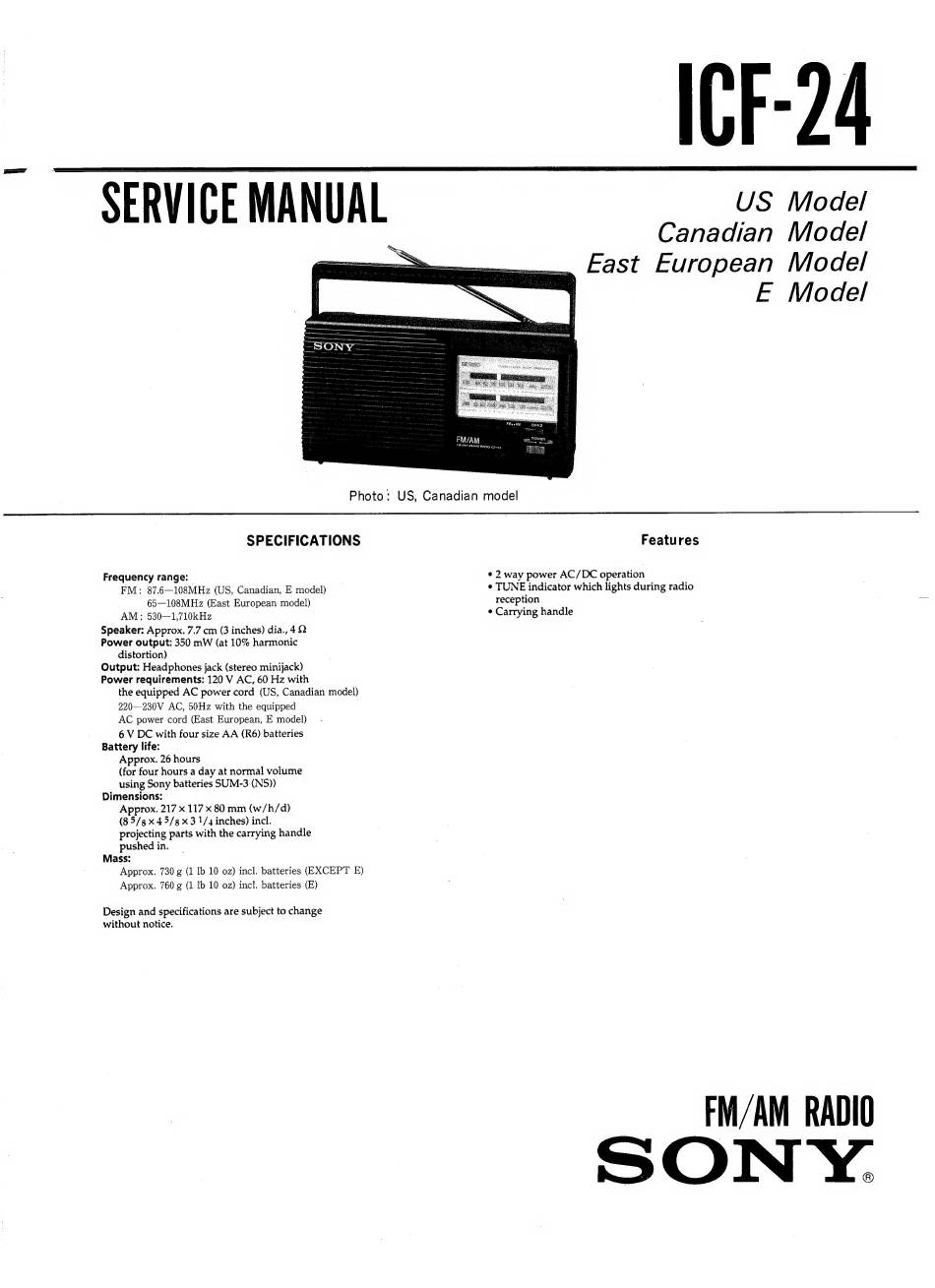

SERVICE MANUAL
GF -24
US Model
Canadian Model
East European Model
E Model
Photo: US, Canadian model
SPECIFICATIONS
Frequency range:
FM: 87.6—108MHz (US, Canadian, E model)
65—108MHz (East European model)
AM: 530—1,710kHz
Speaker: Approx. 7.7 cm (3 inches) dia., 4 Q
Power output: 350 mW (at 10% harmonic
distortion)
Output: Headphones jack (stereo minijack)
Power requirements: 120 V AC, 60 Hz with
the equipped AC power cord (US, Canadian model)
220--230V AC, 50Hz with the equipped
AC power cord (East European, E model)
6 V DC with four size AA (R6) batteries
Battery life:
Approx. 26 hours
(for four hours a day at normal volume
using Sony batteries SUM-3 (NS))
Dimensions:
Approx. 217 x 117 x 80 mm (w/h/d)
(8 5/3 x 45/3 x3 1/4 inches) incl.
projecting parts with the carrying handle
pushed in.
Mass:
Approx. 730 g (1 Ib 10 oz) incl. batteries (EXCEPT E)
Approx. 760 g (1 lb 10 oz) incl. batteries (E)
Design and specifications are subject to change
without notice.
Features
¢ 2 way power AC/DC operation
¢ TUNE indicator which lights during radio
reception
¢ Carrying handle
FM/AM RADIO
