U Series Corner Kit Instructions
To be used with:
• 50-3806
U30 Corner Install Kit - Left
• 50-3860
U30 Corner Install Kit - Right
• 50-3861
U50 Corner Install Kit - Left
• 50-3862
U50 Corner Install Kit - Right
1
1
2
3
The installation for each configuration and each unit remains the same as the method described in this manual.
• This manual also assumes that the unit has NOT been framed in place yet.
• Access to the outside face of the cabinet is required to secure the outer block off plate.
• You will need to attach framing standoffs to the top of the fireplace cabinet.
3
2

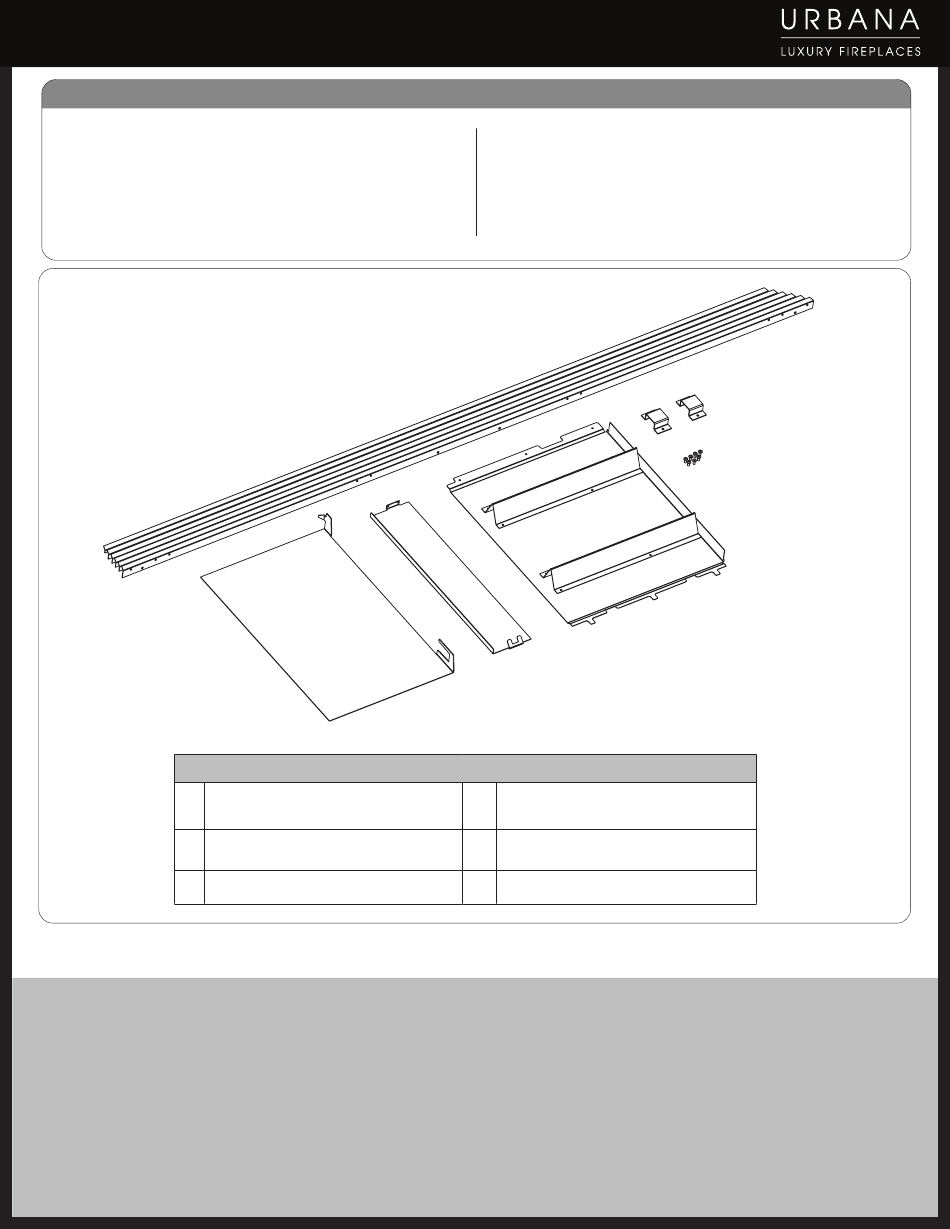

Kit Contents
Front Louver Assembly
Inner Block Off Plate
Front Trim
(50-3863 Used as example in this manual)
Take note before starting installation:
• This manual shows 1 of 3 corner kits configurations.
• 50-3863
U70 Corner Install Kit - Left
• 50-3864
U70 Corner Install Kit - Right
• 50-3885
U50 Single Sided Install Kit
• 50-3886
U70 Single Sided Install Kit
5
4
4
Outer Block Off Plate
5
Standoffs
6
Fasteners
6
| 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Urbana U Series
Summary of Contents for Urbana U Series
- Page 1 U Series Corner Kit Instructions To be used with: • 50-3806 U30 Corner Install Kit - Left • 50-3863 U70 Corner Install Kit - Left • 50-3860 U30 Corner Install Kit - Right • 50-3864 U70 Corner Install Kit - Right •...
- Page 2 Corner Kit Installation Remove outer glass (see installation manual). Remove the front and side louvers (see fireplace installation manual). Remove the lower trim by lifting up and out. Leave the vertical trim in place. Pull from the bottom and remove the back cover trim of the side being converted.
- Page 3 Slide bracket up and out of way of the glass. fig1 Insert front trim by sliding the tabs into block off plate tangs at top and bottom (fig1). Loosen bottom knobs, do not remove. The glass will want to fall forward, cradle it from impact but no not remove.
- Page 4 Attach X2 standoffs on top of cabinet using the provided fasteners above the side being converted. Insert tabs of outer block off plate Note into the inside of the cabinet of fireplace, If a single sided kit is being used (U50 or U70 only), repeat where the trim was installed in step 5.
- Page 5 If an extension is desired, an interal "false wall" must Corner Kit Framing (General) be constructed beside the unit within the enclosure to maintain chase draft geometry. All minimum air gaps The corner kit will block off the side corresponding to must be adhered to, see installation manual for details.
- Page 6 Min. Framed Width U50 56 3/4" U70 76 3/4" [1950mm] [1141mm] U70 2 3/4" [70mm] 210 sq in Min. Open Area U50 2 7/8" [74mm] 170 sq in Min. Open Area 3" Min. Solid Wall Min. Heat Release Height 76mm Clearance No framing obstructions...
