Atari 5200 Installing page 13

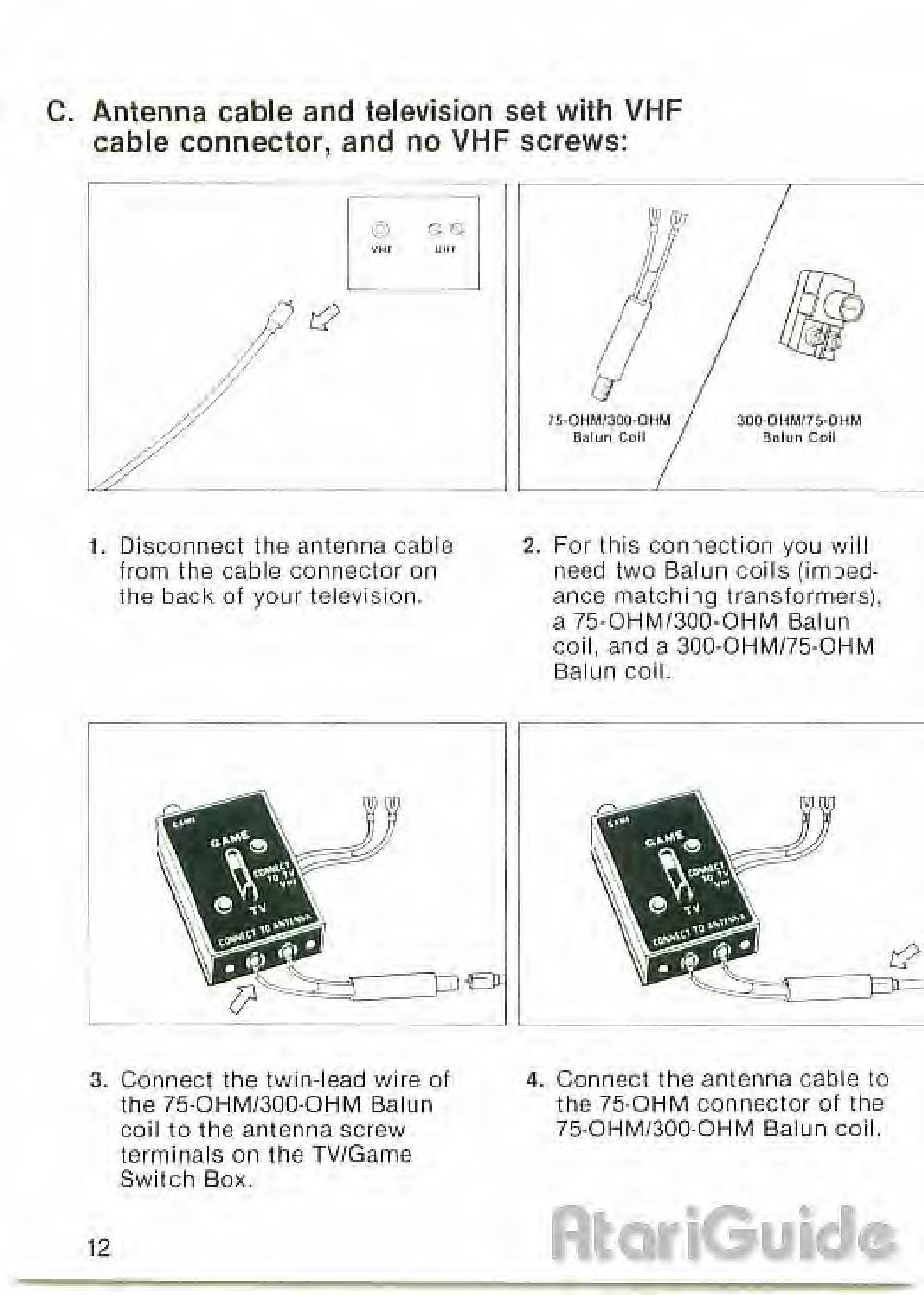

C.
Antenna
cable
and
television
set with
VHF
cable connector,
and no
VHF
screws:
p&
/
-
s
s
UHt
/
M^
u
1
l
m
ISrOHM^Oo-QHM
/
Balun Coil
/
iOOOHM/75-OHM
Balun
Coil
//
1.
Disconnect the antenna cable
from the cable connector
on
the
back
of
your
television.
2.
For
this
connection
you
will
need two Balun
coils
(imped-
ance matching
transformers),
a75-OHM/300-OHM
Balun
coil,
and
a
300-OHM/75-OHM
Balun
coil.
~J-r~-p€P-
3.
Connect
the twin-lead wire
of
the
75-OHM/300-OHM
Balun
coil to the
antenna screw
terminals
on
the
TV/Game
Switch Box.
12
4.
Connect
the
antenna
cable
to
the
75-OHM
connector
of the
75-OHM/300-OHM
Balun
coil.
