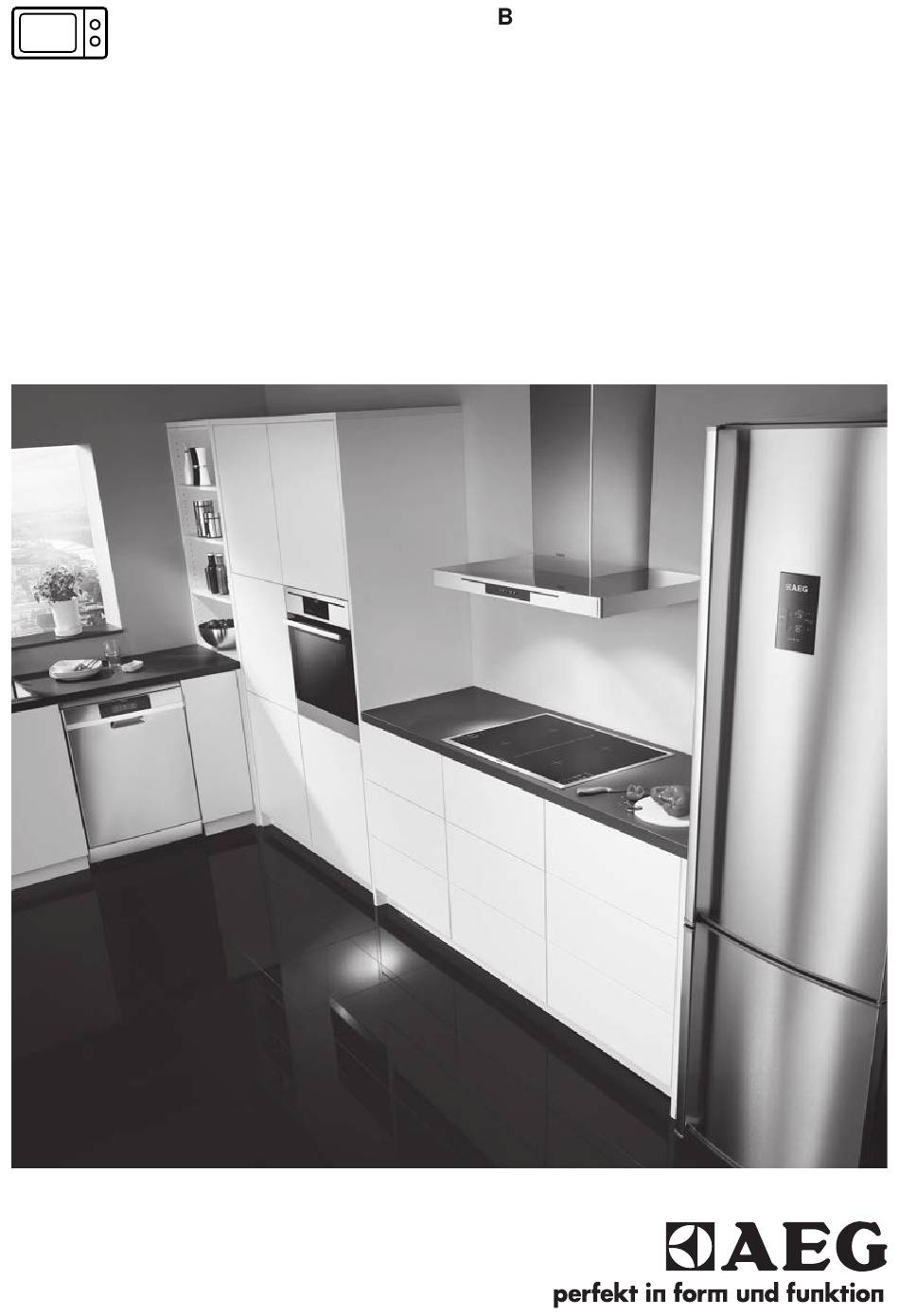

  • Page 1 User Manual MCD2664E...

  • Page 2: Table Of Contents

    11. ENVIRONMENT CONCERNS ......... . . 34 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler –...

  • Page 3: Safety Information

    ENGLISH 1. SAFETY INFORMATION IMPORTANT! IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire.
  • Page 4 Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged. Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a...
  • Page 5 ENGLISH Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended.
  • Page 6 involved.
  • Page 7 ENGLISH power supply cord to run over any hot to release steam and avoid burns. or sharp surfaces, such as the hot air Do not lean or swing on the oven door. vent area at the top rear of the oven. Do not play with the oven or use it as a If the power supply cord of this toy.
  • Page 8 GRILL mode, DUAL GRILL mode and AUTO COOK operation because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable. IMPORTANT! If you are unsure...

  • Page 9: Product Description

    ENGLISH 2. PRODUCT DESCRIPTION 2.1 Microwave Oven Grill heating element Front trim Oven lamp Control panel Door opening button Waveguide cover Oven cavity Seal packing Door seals and sealing surfaces Ventilation openings Outer cover Rear cabinet Power supply cord...
  • Page 10 2.2 Accessories Check to make sure the following accessories are provided: Turntable Turntable support High rack Low rack • Place the turntable support in the seal packing on the floor of the cavity. • Then place the turntable on the turntable support.

  • Page 11: Control Panel

    ENGLISH 3. CONTROL PANEL Digital display indicators Grill Microwave Dual Clock Cooking stages Plus/Minus Auto defrost bread Auto defrost Weight Auto cook indicators Auto cook button Auto defrost button Power level button Grill button Timer/Weight knob Start/Quick button Stop button Door open button...

  • Page 12: Before First Use

    4. BEFORE FIRST USE 4.1 Econ mode 4. Press the START/QUICK button. The display will show: The oven is set in energy save mode (Econ). 5. Rotate the TIMER/WEIGHT knob to adjust the hour. 1. Plug in the oven.
  • Page 13 ENGLISH 3. Press the STOP button. 4. The display will show: Econ. 5. Close the door. 6. The oven will count down from 3:00 to zero. 7. When zero is reached, the oven goes into Econ mode and the display goes blank.

  • Page 14: Operation

    5. OPERATION 5.1 Microwave safe cookware Microwave Cookware Comments safe Aluminium foil/ Small pieces of aluminium foil can be used to shield food containers from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer.
  • Page 15 ENGLISH 5.2 Microwave cooking advice Microwave cooking advice Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Size For even cooking make all the pieces the same size. Temperature of The initial temperature of food affects the amount of cooking time needed.
  • Page 16 Your oven can be programmed for up to Cooking time Increasing unit 90 minutes. The input unit of cooking 0-5 minutes 15 seconds time varies from 15 seconds to five 5-10 minutes 30 seconds minutes. It depends on the total length of...
  • Page 17 ENGLISH 5.4 Reduced power level Cooking mode Standard time Reduced power level Microwave 900 W 20 minutes Microwave 630 W Grill 20 minutes Grill-50 % Dual Grill Grill-20 minutes Grill-50 % IMPORTANT! If you cook the food over the standard time with only the same cooking mode, the power of the oven will lower automatically to avoid overheating (the microwave...
  • Page 18 5.6 Add 30 seconds The START/QUICK button allows you to Extend the cooking time operate the two following functions: You can extend the cooking time for multiples of 30 seconds if the button is Direct Start pressed while the oven is in operation.
  • Page 19 ENGLISH To cancel PLUS/MINUS, press the If you select MINUS, the display POWER LEVEL button 3 times. will show If you select PLUS, the display will show 5.8 Grill and dual grill cooking This microwave oven has two grill burning smell when using the grill cooking modes: for the first time, this is normal and does not indicate a fault with the...
  • Page 20 Dual grill cooking This mode uses a combination of grill Button Power setting power and microwave power. The Grill x 1 microwave power level is preset to 270 W. Grill x 2 270 W Grill x 3 450 W...
  • Page 21 ENGLISH 2. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 2.30 is displayed. 3. Check the display. 4. Press the GRILL button once. 5. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 5.00 is displayed. 6.
  • Page 22 5.10 Auto cook and auto defrost Auto cook and auto defrost Food Symbol Setting automatically works out the correct Gratinated fish fillet Microwave + cooking mode and cooking time. You grill can choose from 6 auto cook and 2 auto...

  • Page 23: Programme Charts

    ENGLISH 6. PROGRAMME CHARTS 6.1 Auto cook chart Weight (increasing Auto cook Button Procedure unit)/Utensils Beverage 1-6 cups • Place cup towards edge of turntable. (Tea/Coffee) 1 cup = 200 ml Boiled and 0.2-1.0 kg (100 g) Boiled potatoes: Peel the potatoes and cut jacket potatoes Bowl and lid them into similar sized pieces.
  • Page 24 6.2 Auto defrost chart Weight (increasing Auto defrost Button Procedure unit)/Utensils Meat/fish/poultry 0.2-1.0 kg (100 g) • Place the food in a flan dish in the Flan dish centre of the turntable. • When the audible bell sounds, turn the food over, rearrange and separate.
  • Page 25 ENGLISH 6.3 Recipes for auto cook Gratinated fish fillet ‘Italian’ Grilled skewers 0.5 kg 1.0 kg 1.5 kg 4 pieces 200 g 430 g 630 g fish fillet 400 g pork cutlets, cubed ½ tbsp 1 tbsp 1½ tbsp lemon juice 100 g streaky bacon ½...
  • Page 26 Spinach gratin Potato and courgette gratin 0.5 kg 1.0 kg 1.5 kg 0.5 kg 1.0 kg 1.5 kg 150 g 300 g 450 g leaf spinach, 10 g 15 g butter or defrosted, drained margarine to grease the dish...
  • Page 27 ENGLISH 6.4 Cooking charts Heating food and drink Quantity Power Time Food/drink Setting Method -g/ml- Level -Min- Milk, 1 cup Micro 900 W do not cover Water, 1 cup Micro 900 W do not cover 6 cups Micro 900 W 8-10 do not cover 1 bowl...
  • Page 28 Defrosting and cooking Standing Quantity Power Time Food Setting Method time Level -Min- -Min- Fish fillet Micro 900 W 9-11 cover One plate Micro 900 W 8-10 cover, stir after 6 minutes meal Broccoli/ Micro 900 W add 3-5 tbsps water,...

  • Page 29: Care And Cleaning

    ENGLISH 7. CARE AND CLEANING CAUTION! Heat up your oven regularly by using the grill. Remaining food or fat splashed can DO NOT USE COMMERCIAL OVEN cause smoke or a bad smell. CLEANERS, STEAM CLEANERS, Turntable and turntable support ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE Remove the turntable and turntable OR SCOURING PADS ON ANY PART...

  • Page 30: Troubleshooting

    8. TROUBLESHOOTING Problem Check if . . . The microwave • The fuses in the fuse box are working. appliance is not working • There has not been a power outage. properly? • If the fuses continue to blow, please contact a qualified electrician.

  • Page 31: Installation

    ENGLISH 9. INSTALLATION The microwave can be fitted in position A or B: Niche size Position 560 x 550 x 450 560 x 500 x 450 Measurements in (mm) 9.1 Installing the appliance 1. Remove all packaging and check carefully for any signs of damage. 2.
  • Page 32 9.2 Connecting the appliance to the power supply • The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply...
  • Page 33 ENGLISH GREEN & YELLOW IMPORTANT 13 AMP FUSE The wires in the mains lead are coloured in accordance with the following code: GREEN AND YELLOW EARTH BLUE NEUTRAL BROWN LIVE BROWN If you fit your own plug, the colours of BLUE the wires in the mains lead of your CORD CLAMP...

  • Page 34: Technical Information

    1000 W Microwave Frequency 2450 MHz (Group 2/Class B) Outside Dimensions: MCD2664E 594 mm (W) x 459 mm (H) x 404 mm (D) Cavity Dimensions 342 mm (W) x 207 mm (H) x 368 mm (D) Oven Capacity 26 litres Turntable ø...
  • Page 35 ENGLISH...
  • Page 36 www.aeg.com/shop...
