Sealey VS230.V4 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
9
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately by a
8
qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualified electrician.
1.2. GENERAL SAFETY
DO NOT touch heating parts with bare hands.
8
DO NOT touch live electrical parts or electrodes with bare skin or wet clothing.
8
DO NOT operate in the vicinity of containers under pressure, or in the presence of explosive dust, gases or fumes.
8
DO NOT cover or stick objects into any of the ventilation holes on the equipment.
8
WARNING! The magnetic fields created by high currents may affect the operation of pacemakers.
‰
WARNING! Wearers of vital electronic equipment should consult their Doctor before using Induction heater.
‰
Ensure area is adequately ventilated and dry.
9
Ensure ambient temperature is between -10 to 40 °C
9
Avoid using in bright sunshine or rain.
9
DO NOT use the machine in an environment where the air is polluted with conductive dust or gases.
8
WARNING! Due to the heat generated by the induction coils blistering of painted surfaces will happen if over heated.
‰
2. INTRODUCTION

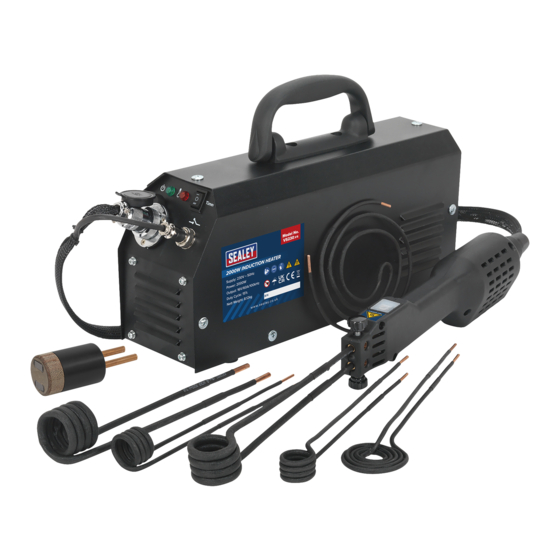

Mobile induction heater for fast heat delivery. Install appropriate coil and place over or around ferrous metal. Ideal for loosening
stubborn and seized fixings. Supplied with special dent induction block for panel expansion and induction pad for plastic trim/sticker
removal. Induction element delivers high heat fast and effectively. Supplied in storage case.
3. SPECIFICATIONS
Model No: ....................................................... VS230.V4
Supply: ....................................................................230V
Frequency: .........................................................50/60Hz
Power: ..................................................................2000W
Duty Cycle: ...............................................................15%
Output: ................................................. 16V/60A/100kHz
VS2303: ..........................................Direct Coil - Ø20mm
The duty-cycle is the number of minutes, expressed as a percentage, the machine can operate within a ten minute period without
overheating. The duty-cycle varies according to the output current.
© Jack Sealey Limited
2000W INDUCTION HEATER
VS230.V4
MODEL NO:
Wear protective Electrical shock
gloves hazard
Original Language Version
Warning: Do not use in
magnetic field the vicinity of a
pacemaker
VS2305: ..........................................Direct Coil - Ø30mm
VS2304: ............................................ Side Coil - Ø20mm
VS2306: ............................................ Side Coil - Ø30mm
VS2309: .............................................Pad Coil - Ø55mm
VS2310: ............................................. Flex Coil - 920mm
VS23111: ................................Ø29mm Induction Adaptor
VS230.V4
Keep away from
rain
Issue 2 (H,3,F) 02/10/23
