Vision3 Lighting PA12 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while lamp is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate with damaged or missing parts.
7. Do not disassemble beyond cap removal to facilitate lamp and/or
Installation:
Notes:
• This fixture should not be mounted in such a way that it is buried or in
direct contact with the ground or soil.
• Integral Driver LED models come with push button manual selection of
4 different outputs. See 'Changing Integral Driver LED Output Level'
instructions on next page. Output will be set at factory to highest setting,
unless otherwise specified when ordered.
• Integral Driver LED models also allow for 100-277V 0-10V dimming
(at three highest push button light level settings only) and 120V phase
dimming (at highest push button light level setting only). Integral Driver
LED models should only be used with compatible dimming systems.
Contact Vision3 Lighting for further information.
• COB LED's must be powered by a Vision3 Lighting approved LED driver
with the proper rating. Check specification sheet and fixture label for proper
ratings.
• When removing the cap from a COB model, take care to pull the cap
straight off. "Cocking" or pulling off to the side could break the Reflector.
• All ratings subject to change without notice. See website or contact V3 for
most current info.
Caution! Fixture will be hot when on. Remove power and allow fixture to
cool before performing any adjustments or maintenance.
1. Unpack the PA12 Staff Light from its shipping container.
2. Check that there are no damaged or missing components. Contact Vision3
immediately if there are any damaged or missing components.
3. For COB LED models: Install Accessory Lenses as explained in Acces-
sory Maintenance steps 1 thru 7 below and the Reflector as explained in
Changing COB LED Optics steps 3 & 4 below.
4. The PA12 Staff Light can be ordered with various mount options.
See mount option installation instructions for further installation
procedures. Note: If fixture is installed improperly, or in loose soil, it
is possible for it to topple over under its own weight (depending on
mount option and stem length). To prevent this, concrete anchoring of
some kind is recommended in all installations.
5. Connect the fixtures power leads to the power supply wires using
appropriate connectors (not supplied) per applicable codes. Note: Be
sure power/amperage being supplied matches requirements on Label.
a. Halogen/Integral Driver LED: black, white, green connect to
hot (typically black), neutral (typically white), ground (typically
green or bare copper), respectively.
b. COB LED: red and black connect to positive(+) lead (typically
red) and negative(-) lead (typically black) from Vision3
Lighting approved LED driver, respectively.
6. For Integral Driver LED models: Connect the fixtures dimming
leads to the dimming control wires using appropriate connectors
(not supplied) per applicable codes. The 0-10V(-) control wire
(typically gray) should attach to the fixtures white dimming lead,
and the 0-10V(+) control wire (typically purple) should attach to the
fixtures blue dimming lead. If 0-10V dimming is not being used, each
of the fixtures dimming leads should be cut and capped separately
©2011-2019 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
100-277V 20W Max. LED w/ Integral Driver
accessory installation or replacement.
8. Remove any debris accumulated in the cap periodically.
9. Do not install within 10 feet of a pool, spa, or fountain.
10. This is a line voltage fixture, use properly rated cable. Consult a
qualified electrician to ensure correct branch circuit conductor.
11. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved.
(connectors not supplied). Note: capping the dimming leads together
or allowing them to touch ground may prevent the LED from operating
normally. Make sure they are capped separately if not being used.
Fixture Aiming:
1. Loosen the Vertical Adjustment Screw using a 5/32" hex tool – do not
remove screw!
2. Grab fixture Body and push/pull to break grip of tapered knuckle lock. Be
sure to hold stem while doing this so you don't stress, bend, or break it.
3. Slightly tighten Vertical Adjustment Screw, using the 5/32" hex tool, so
that fixture holds position when released, but still moves when adjusted.
4. Slightly loosen the Horizontal Adjustment Screw (Available on K2
knuckle option only), using the 5/32" hex tool - do not remove screw!
5. Slightly tighten the Horizontal Adjustment Screw (Available on K2
knuckle option only) so that the fixture can be rotated, but still holds
position.
6. Adjust fixture to the desired angle. Do not force the fixture past the
natural stops built in to the knuckle. Note: Rotate fixture fully in opposite
direction if a stop is hit before reaching the desired position.
7. Tighten the adjustment screws using the 5/32" hex tool. Do not over
tighten! Tapered knuckle lock requires very little tightening to ensure
fixture is locked in position.
8. Adjust cap so that Drain Hole, if any, is oriented at the lowest point to
allow drainage.
PAR20 Halogen Lamp Maintenance (for certain models):
1. Remove power from fixture and let cool before touching. Caution!
Luminaire may still be hot!
2. Loosen the Cap Set Screw using a 3/32" hex tool – do not remove screw!
3. Remove the Cap. Twisting the Cap while removing reduces the risk of
damaging the O-ring.

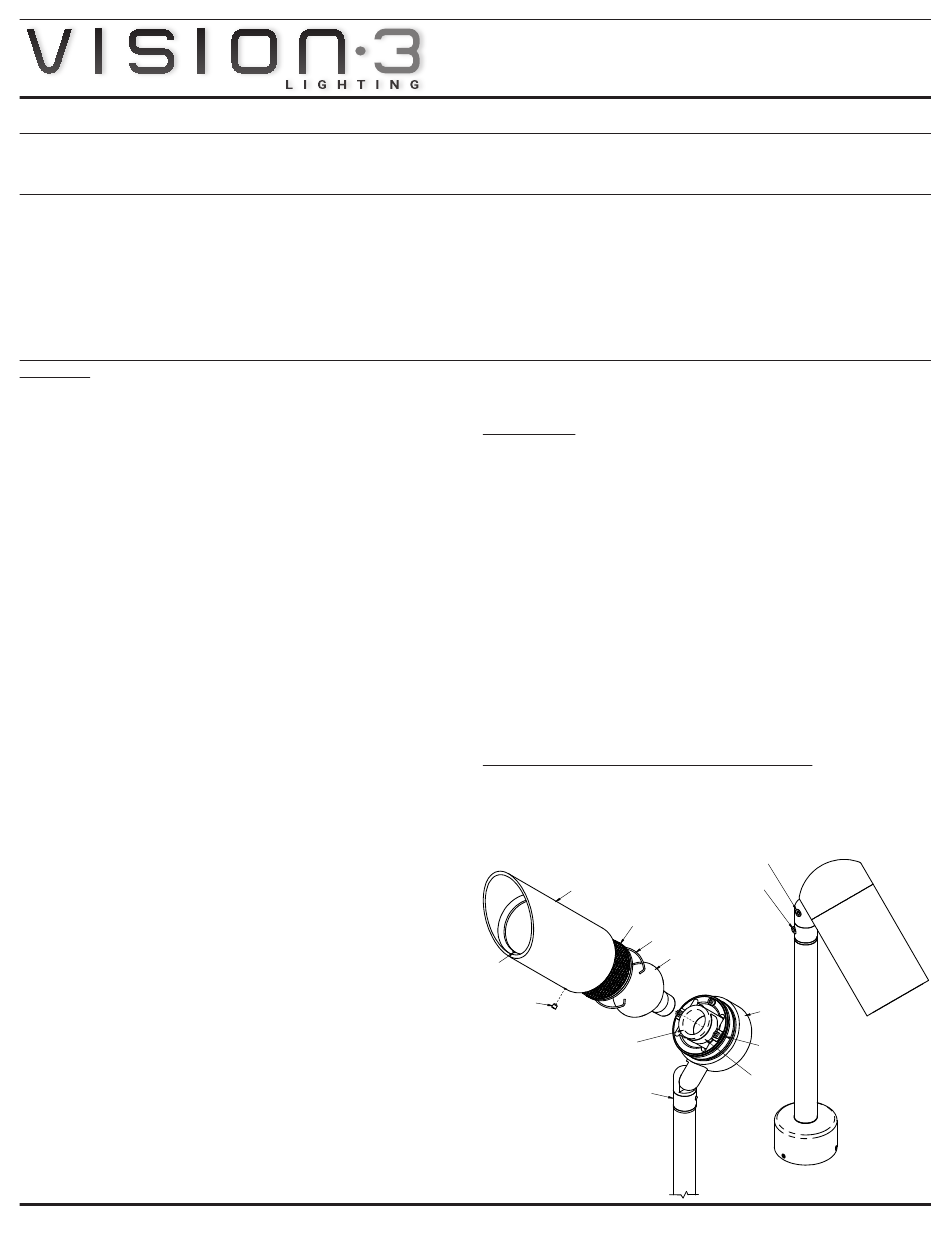

Cap
(C4 Option Shown)
Drain Hole
Cap Set Screw
Socket
Knuckle
(K2 Option Shown)
(559) 834-5749
- Page 1 -
MODEL PA12
LED Staff Light
21W Max. COB LED
Vertical Adjustment Screw
Horizontal Adjustment Screw
(K2 Knuckle Option Only)
Accessory Lenses
Accessory Clip
PAR20 Halogen Lamp
Body
O-ring
Label
Shown with MO1 Mount Cap option
(559) 834-4779 fax www.vision3lighting.com
revision 12/30/19
