Mimer X-Link Connection Manual

Connect a hytera md785

Advertisement

Quick Links

Page 1/4
Connect a Hytera MD785 to
Mimer X-Link
Also works with the Tetra mobile Hytera MT680
Interface Power Supply
+12VDC / max 0,3A.
See wiring diagram on following pages.

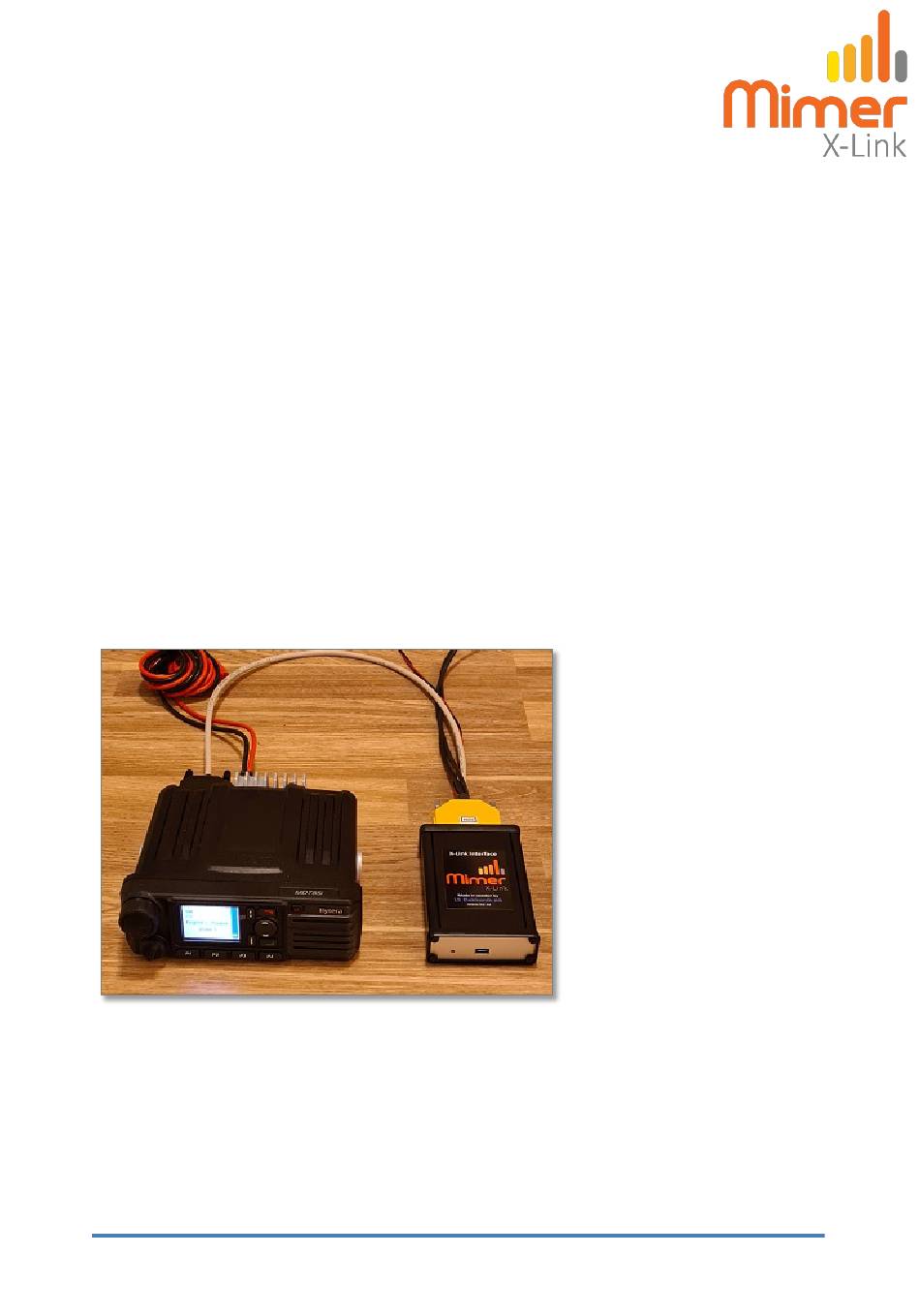

Hytera MD785 connected to a X-Link interface
Hytera MD785 B
www.lse.se
REE

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-Link and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mimer X-Link

  • Page 1 Page 1/4 Connect a Hytera MD785 to Mimer X-Link Also works with the Tetra mobile Hytera MT680 Interface Power Supply +12VDC / max 0,3A. See wiring diagram on following pages. Hytera MD785 connected to a X-Link interface Hytera MD785 B www.lse.se...
  • Page 2 Page 2/4 Radio programming MD785 • Port 16 shall be set to Ext. Mic PTT, active low. • Port 23 shall be set to Carrier Detect, active low See screen shot below. General Settings / Accessories Radio programming MT680 Similar settings as above will need to be done in the radio.
  • Page 3 Part of the Configuration software window Check/adjust the audio levels in both directions in the interface so that the users hears the X-Link with the same level as when listening to other radios. See the X-Link setup manual for details on setting the audio level.
  • Page 4 Page 4/4 Connection Cable: Select the proper configuration below depending on if your radio will be connected as Radio A or Radio B to the X-Link interface. Hytera MD785 B www.lse.se...
