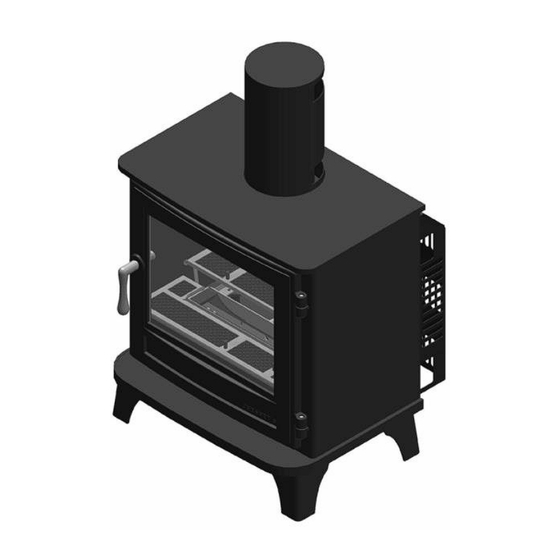

- Page 1 Installation & User Manual Model: Alchemy Salisbury Std Bioethanol Version 004. March. 2023...
- Page 2 Model Code: Alchemy BP/SALI/5 Please read this manual carefully for correct installation, use and maintenance of the fireplace and to familiarise yourself with the proper use of the product. Operate the fireplace in accordance with the instructions provided, so you can fully enjoy the product for many years.
-
Page 3: Table Of Contents
Contents 1. Supplied Parts ..................4 2. Safety Information ...................7 2.1 Explosion/ Hazard ..............7 2.2 Fire Positioning .................7 2.3 Ventilation ..................7 2.4 Fuelling the Fire ................8 2.5 Hot Surface Hazard ..............8 2.6 Using Accessories ..............8 3. Installation ..................11 3.1 Burner Clearance ..............11 3.2 Installing &... -
Page 4: Supplied Parts
1. Supplied Parts 1. Stove and Small Chimney 2. Remote Control 3. RC Handset 4 x AAA Batteries 5. Refill Hose Extension 4. AC 220V – 240V Mains Power Cable... - Page 5 6. Ceramic Logs Complete Log set Individual Ceramic Logs...
- Page 6 Place first layer of ceramic logs A, B and C on the grate, with logs B and C fitted onto pins. Place second layer of ceramic logs, D and E. Place last ceramic log F in position. You must only use our approved ceramic logs to ensure a safe and inviting fireplace. While using the ceramic logs, please ensure;...
-
Page 7: Safety Information
2. Safety Information Thank you for choosing an Alchemy Bioethanol fireplace, fully remote controlled. Please read this manual carefully for correct Installation, use and maintenance of the fireplace and familiarise yourself with the proper use of the product. Operate the fireplace in accordance with the instructions provided, so you can fully enjoy the product for many years. -
Page 8: Fuelling The Fire
IV. Alchemy Ltd is not liable for any damage caused by using the incorrect type of fuel. DO NOT POUR OVER LIVE FLAMES DO NOT FILL WHILE HOT 2.5 HOT SURFACE HAZARD... - Page 9 • Do not use any other decorative fuel effects other than our recommended goods. Bioethanol is the only fuel. • Alchemy BIO Stoves are designed to work with quality fully approved, Bioethanol Fuel. Poor quality of fuel may lead to undesirable results: •...
- Page 10 USER INSTRUCTIONS User Cautions: Your health and safety are paramount; therefore, we have taken all necessary consideration for the design, production, assembly and transport to ensure a pleasing and excellent performance for your Bioethanol fire. Please follow these instructions for assembly, use and maintenance as follow: •...
-
Page 11: Installation
3. Installation INSTALLATION PARAMETERS If installing in a setting with an open flue this needs to be sealed off. The floor must be level and the Burner positioned on a flat surface; this can be perfected with the adjustable feet. The Burner must only be placed on a non combustible surface and must be installed in accordance with the outlined safety requirements and clearances. - Page 12 Fig.1 For reasons of safety, under no circumstances can there be any flammable material within a 1m radius from the fireplace. Also, the manufacturer does not recommend positioning any heat sensitive materials or devices above the fireplace as it can significantly limit the materials properties and lifetime.
-
Page 13: Installing & Removing Appliance From Recess
3.2 INSTALLING & REMOVING APPLIANCE FROM RECESS To install the appliance into a recess, • Connect the Power cable to the fire on the rear port. DO NOT CONNECT TO MAINS SUPPLY UNTIL AFTER THE APPLIANCE IS SAFELY INSTALLED. • Once placed in, ensure the fire is level. •... -
Page 14: Levelling
3.4 LEVELLING THE STOVE This is done with levelling bolts behind each leg 3.5 VENTILATION It is recommended that you keep a good ventilation of the area in order to ensure a healthy level of oxygen, please see table below: Free air under burner Minimum Room Size (m³) All around... - Page 15 During the first firing the paint finish goes through a curing process which will soften the paint with the heat. As the stove cools down the paint will harden. This process can take several firings, and will depend on the temperature achieved and for how long the fire has been left to burn. It is also very important the paint is not touched during this process.
-
Page 16: Operating Remote Control And Turning On Burner
4.2 OPERATING REMOTE CONTROL AND TURNING ON BURNER Make sure the remote is loaded with batteries. Normally the handset is already paired from the factory however; if it requires to be done again follow Pairing Device instructions (see page 24). I. -
Page 17: Safety Systems
5. Safety Systems The Alchemy Bioethanol range incorporates several safety systems to ensure a complete peace of mind. 5.1 LEAK DETECTION SENSOR The Bio Fire has a leak detection sensor located underneath the burner on the lowest part of the sump and also on the under tray underneath the pumps as per images showing the sensors. -
Page 18: Bioethanol Fuelling Detection Switch
Turn the appliance OFF and isolate the mains supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Alchemy Ltd for injury caused by burning or scolding by a hot appliance. -
Page 19: Troubleshooting
8. Troubleshooting 8.1 There is smoke or a foreign smell coming from the Burner when burning a. There may be waste burning that should not be in the Burner. b. You are using the wrong fuel (it is essential that you ONLY use Bioethanol). c. - Page 20 8.5 RC Handset Error Codes The software installed will give an error/ stop coded if the bioethanol fire stopped or did not start from any reason. If the bio-fire stops a code is generated, and can be read on the RC handset. To get to the Stop Code screen, on the remote press both Menu buttons together until the MENU appears with three options.
- Page 21 6. High level sensor not reached, pump timed out Reason: The fuel has not reached the high level sensor in the burner during operation due to fuel running out, blockage in the fuel lines or faulty pump. Solution: Check for leaks, around fuel tank. Check fuel, refuel if no fuel. If leak found or still doesn’t turn on after refuelling, call engineer/dealer to check fuel lines and pump.
-
Page 22: Appendix 1 - Remote Control
Appendix 1 - Remote Control The appliance is in Standby mode when the power is switched on. You must have the power supply ON (—) before using the handset. The remote control works by radio signal which is configured at the factory with a unique signal code. - Page 23 1. Remote Control Functions Press both Menu buttons until a menu appears at top of screen. Three screen options will appear. To select options rotate dial until highlighted in RED and press select. • SET CLOCK • DEVICE • ADVANCED 1.1 SET CLOCK I.
- Page 24 1.2.1 DELETING DEVICE I. Scroll to DEVICE menu and press select. II. This gives details of the appliance and also gives the option to delete the appliance from the remote handset. Press and hold the delete option to remove appliance. III.
- Page 25 1.3 ADVANCED 1.3.1 SCREEN DIMMER I. Scroll to ADVANCE menu and press select. II. This function dims the screen of the remote. To switch dimmer on or off press SET option to toggle between ON and OFF.
-
Page 26: Appendix 2 - Rear Cover Spacers
Appendix 2 - Rear Cover Spacers The spacers come loose with a self tapper screws and need to be installed before fire is put into desired location. Appendix 3 - Pump Top Change Over (Recommended every two years) For servicing the rear cover can be removed by loosening x4 M5 nuts (they do not need to be removed) using an 8mm socket driver shown in the image above. - Page 27 To remove the Pump Top, the tabs on the side need to be pushed in as shown on images to release the top from the body. Image to the left shows pump attached to the rear cover, view from top. The same step of removing Pump Top, image shows pump without fire box, front view and a close up of the tab/catch mechanism.
-
Page 28: Appendix 4 - Dimensions And Spare Parts
Appendix 4 - Dimensions and Spare Parts 3.1 DIMENSIONS... - Page 29 3.2 SPARE PARTS ITEM NO. PART NUMBER DESCRIPTION QTY. 5BIO-001 GRATE FRONT 5BIO-002 GRATE REAR 5BIO-003 INNER FLUE 5BIO-004 OUTER FLUE 5BIO-005 REFUEL PUMP 5BIO-006 BACK COVER RBIO-003 FUEL PUMP TOP RBIO-002 FUEL PUMP COMPLETE RBIO-005 IEC POWER SOCKET RBIO-006 POWER LEAD 5BIO-008 LOG SET...
-
Page 30: Installer Checklist
9. Installer Checklist TO BE COMPLETED ON INSTALLATION... -
Page 31: Warranty Registration
10. Warranty Registration To validate and start your warranty please log on to: https://chesneys.co.uk/warranty-registration and complete the online form. In the event of a breakdown or claim you are required to contact the installer/dealer. They will need to investigate the matter and process the claim on your behalf if required. - Page 32 Electrical (Fan kits etc Dispose of at a local recycling centre in accordance with the WEEE directive. components if applicable) Alchemy Fires Ltd 194-196 Battersea Park Road, London, SW11 4ND...
