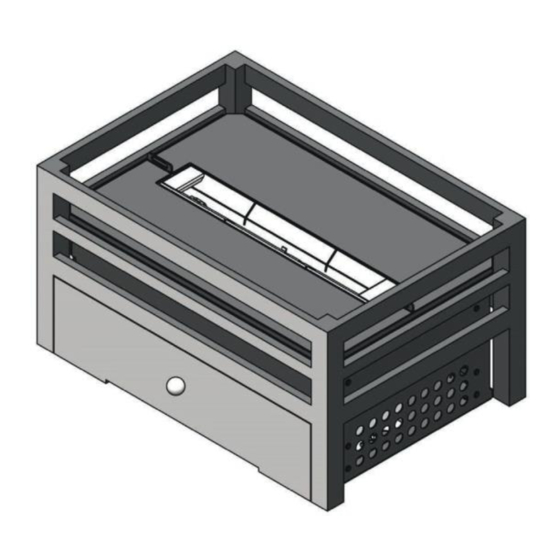

- Page 1 Installation & User Manual Model: FB18-MKIII Version 001-NP_IC-2024...
- Page 2 Please read this manual carefully for correct installation, use and maintenance of the appliance. Operate the appliance in accordance with the instructions provided. The appliance is in compliance with BS EN 16647. IMPORTANT SAFETY NOTICE: BIO-ETHANOL FUEL MUST BE BETWEEN 85% - 96.6% ALCOHOL...
-
Page 3: Table Of Contents
Contents 1. Supplied Parts ................4 2. Safety Information ..............6 3. Installation ................8 4. Operating the Appliance ............13 5. Safety Systems ................ 16 6. Maintenance ................17 7. Technical Information............... 18 8. Troubleshooting ................ 19 9. Appendices Appendix 1 –... -
Page 4: Supplied Parts
1. Supplied Parts ITEM NO. DESCRIPTION QTY. FB18-MKIII TOP PLATE - FRONT TOP PLATE - REAR RC HANDSET 4x AAA Batteries Fuel Filling Funnel AC 220V – 240V Mains Power Cable... - Page 5 Log Plate and Ceramic Logs Complete Log set Log Plate showing pin locations. Individual Ceramic Log...
-
Page 6: Safety Information
• Alchemy Ltd is not liable for any damage caused by using the incorrect type of fuel. • Do not refuel while the appliance is still hot. Allow at least 30 minutes before refuelling. - Page 7 NON-COMBUSTIBLE pebbles, logs or other refractory decorative fire accessories should not be used. • Do not use fittings or spare parts, other than those available from or recommended by Alchemy Ltd. • Always isolate the power to the appliance before moving, cleaning or servicing.
-
Page 8: Installation
3. Installation • While installing the appliance according to the instruction manual ensure local and national guidelines are observed. • The appliance must be positioned on a flat and level surface. • The elements of construction within a 1m radius of the appliance must be A1 classified non- combustible materials. - Page 9 VENTILATION • Bioethanol combustion requires oxygen (O ) and releases carbon dioxide (CO ) and water • It is important to ensure there is adequate ventilation in the area that the appliance is installed to ensure there is a fresh air supply and a healthy level of oxygen to allow for one room volume change of air per hour.
- Page 10 INSTALLATION IN A CHAMBER • The minimum chamber dimensions are 750mm wide x 750mm high x 350mm deep (see Figure 1). This is to ensure sufficient free flowing air to prevent excessive heat build-up and damage to the appliance. • Ensure the chamber is constructed from non-combustible materials.
- Page 11 INSTALLING THE APPLIANCE • A 13A switched mains socket is required to power the appliance. • If the socket is to be located in the chamber it must be below the highest point of the appliance. • The socket must be accessible at all times. If there are access issues to the socket an external switched spur can be introduced, which must be accessible at all times.
- Page 12 CERAMIC LOG LAYOUT • IMPORTANT: when using the log set remove the top plates from the appliance. • Please handle the logs with care as they are fragile. • Please ensure the logs are only placed on the correct pins on the top plate. •...
-
Page 13: Operating The Appliance
Operating the appliance FUELLING THE TANK Always ensure the appliance is cold before fuelling the tank and use the correct fuel. For first use it is recommended the tank is filled to it’s maximum capacity. Remove the top plate/log plate and unscrew the fuel tank cap. Insert the funnel into the fuel tank neck and carefully pour bioethanol fuel into the tank until the indicator ball level reaches the top of the tank window. - Page 14 OPERATING THE REMOTE CONTROL A. Touch power button to awaken handset. B. To turn on, hold power button until bar fills. The screen will display PRIMING for about 45 seconds. C. When the flame has established the unit will beep and the screen will display the level of heating.
- Page 15 FUEL NOTIFICATION When the tank is empty or does not have enough fuel, there will be an audible beep and a message of NO FUEL will appear on the display screen. When there is sufficient fuel in the tank for the appliance to operate, the fuel indicator will show a green bar.
-
Page 16: Safety Systems
5. Safety Systems LEAK DETECTION SENSOR The appliance has a leak detection sensor located underneath the burner on the lowest part of the sump as per image showing the sensor location. Thus, if there is a leak the appliance will turn off. A loud beep will sound if the safety is activated. -
Page 17: Maintenance
Turn the appliance off and isolate the mains supply. Ensure the appliance is cold before attempting any maintenance of the appliance. No liability can be accepted by Alchemy Ltd for injury caused by burning or scolding by a hot appliance. -
Page 18: Technical Information
7. Technical Information BIO-ETHANOL FB18 GROSS INPUT on High (Hs) (kW) Ethanol Consumption on High (L/Hr) GROSS INPUT on Low (Hs) (kW) Ethanol Consumption on Low (L/Hr) 0.35 Fuel Tank Volume Capacity These values are indicative only and may vary depending on the installation and denatured ethanol used. -
Page 19: Troubleshooting
8. Troubleshooting There is smoke or a foreign smell coming from the appliance when burning • There may be waste burning that should not be in the burner channel. • You are using the wrong fuel (it is essential that you ONLY use Bioethanol). •... - Page 20 8.5 RC Handset Fault Finding The software installed will give an error/ stop coded if the bioethanol fire stopped or did not start from any reason. If the appliance stops a code is generated, and can be read on the handset. The code number will help to see at which stage in the ignition process or operating the fault has happened.
- Page 21 Two minutes safety break (IGNITION PROCESS) Reason: The thermocouple safety sequence (3 – Thermocouple hot) has not completed. Solution: Wait another 2 mins to try turning on again. Low level sensor not reached, pump timed out Reason: The fuel has not reached the low level sensor in the burner during operation due to fuel running out, blockage in the fuel lines, debris in the burner or faulty pump.
- Page 22 B. Flame out (THERMOCOUPLE TEMP. DROP) Reason: Strong draught could have put the flame out or the thermocouple could be faulty. Solution: Remove source of draught and try relighting fire (after waiting for the safety sequence to finish). If fire still does not light, contact engineer/ dealer to check thermocouple.
-
Page 23: Appendices
Appendices APPENDIX 1 - REMOTE CONTROL The appliance is in Standby mode when the power is switched on. You must have the power supply ON (—) before using the handset. The remote control works by radio signal which is configured at the factory with a unique signal code. - Page 24 1. Remote Control Functions Press both Menu buttons until a menu appears at top of screen. Three screen options will appear. To select options rotate dial until highlighted in RED and press select. • SET CLOCK • DEVICE • ADVANCED 1.1 SET CLOCK I.
- Page 25 1.1.1 DELETING DEVICE I. Scroll to DEVICE menu and press select. II. This gives details of the appliance and also gives the option to delete the appliance from the remote handset. Press and hold the delete option to remove appliance. III.
- Page 26 1.2 ADVANCED 1.2.2 SCREEN DIMMER I. Scroll to ADVANCE menu and press select. II. This function dims the screen of the remote. To switch dimmer on or off press SET option to toggle between ON and OFF.
-
Page 27: Appendix 2 - Dimensions And Spare Parts
APPENDIX 2 - DIMENSIONS AND SPARE PARTS DIMENSIONS... - Page 28 SPARE PARTS PART ITEM NO. DESCRIPTION QTY. NUMBER FB18-007 TOP PLATE - FRONT FB18-008 TOP PLATE - REAR FB18-014 RC HANDSET...
-
Page 29: Installer Checklist
Installer Checklist THE BELOW FORM MUST BE COMPLETED BY THE INSTALLER ON COMPLETION AND IS REQUIRED IN THE EVENT OF A WARRANTY CLAIM... -
Page 30: Warranty Registration
Warranty Registration The appliance is covered by a 2-year warranty. The warranty must be registered within 28 days of installing the appliance. Failure to register within this time period will result in the warranty reverting to void from date of installation. Please complete the online form at the below website to register your warranty: https://chesneys.co.uk/warranty-registration In the event of a breakdown or claim you are required to contact the installer/dealer. - Page 31 Electrical (Fan kits etc Dispose of at a local recycling centre in accordance with the WEEE directive. components if applicable) Alchemy Fires Ltd 194-196 Battersea Park Road, London, SW11 4ND.
