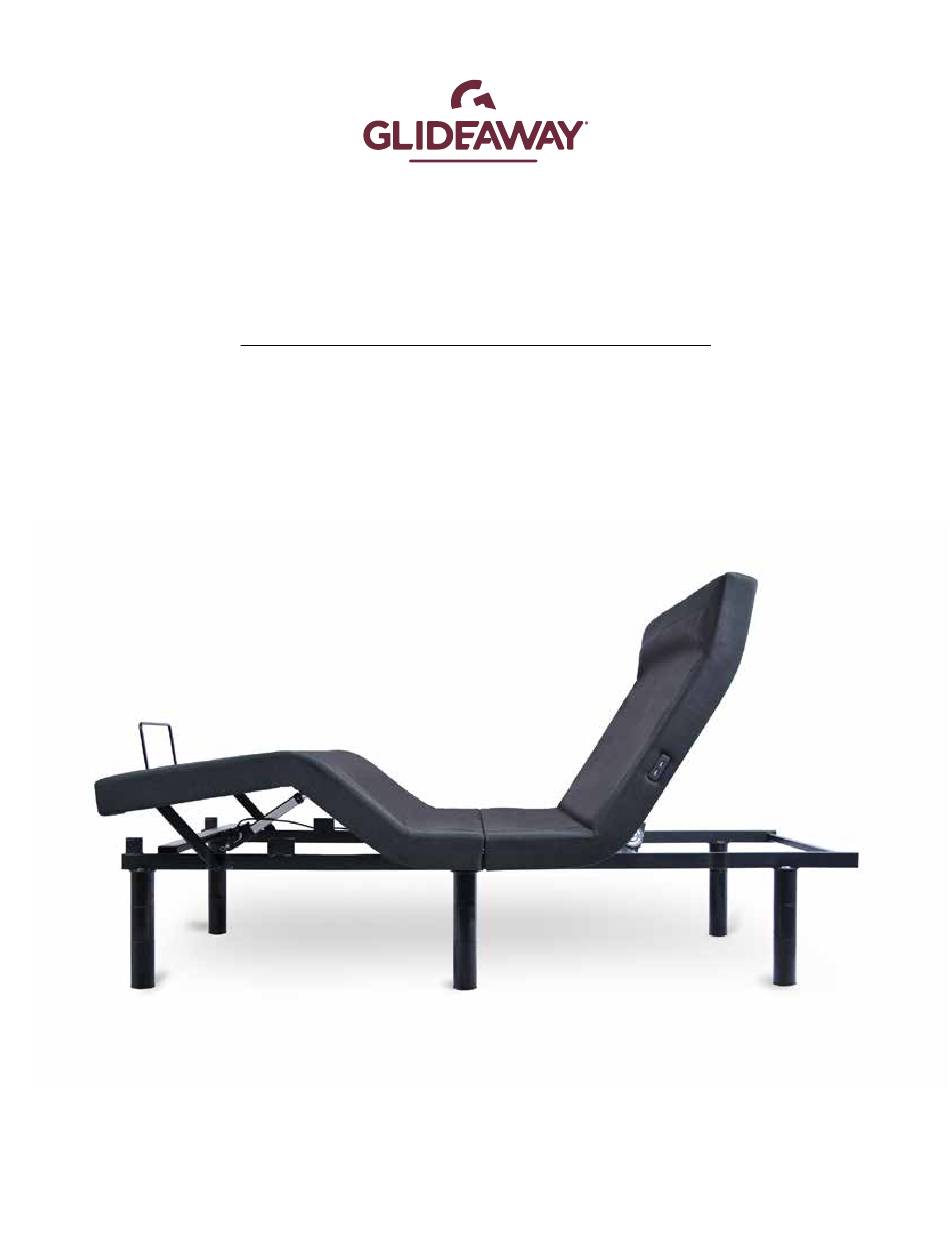

- Page 1 MOTION 600 OWNER’S MANUAL REV 11.23.20...
-
Page 2: Table Of Contents
OWNER’S MANUAL: MOTION 600 CONTENTS SAFETY INFORMATION WHAT IS INCLUDED ASSEMBLY REMOTE GUIDE OPERATION PAIRING REMOTE TROUBLESHOOTING REPROGRAMMING REMOTE ACCESSORIES BASE HEIGHT GUIDE APP INFORMATION RESOURCES USER INFO Please take a moment and write down the serial number in the space provided below, in case you need to refer to it in the future. -
Page 3: Safety Information
OWNER’S MANUAL: MOTION 600 SAFETY INFORMATION DANGER! OPEN BOX IN DO NOT OPEN FROM FLAT POSITION VERTICAL POSITION. THIS CAN DAMAGE BASE. ATTENTION! IMPORTANT SAFETY INSTRUCTIONS. SAVE THIS MANUAL! PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS PRODUCT. PROPER OPERATION OF YOUR ADJUSTABLE BED IS NECESSARY TO ENSURE THE LONG LIFE AND DURABILITY YOU EXPECT FROM A HIGH-QUALITY PRODUCT. - Page 4 OWNER’S MANUAL: MOTION 600 SAFETY INFORMATION WARRANTY WARNING! This bed is specifically designed to require no maintenance by you, the user. Any opening or tamper- ing with the control box, motors or hand controls (with the exception of the battery compartment, if equipped) will void the warranty.
- Page 5 OWNER’S MANUAL: MOTION 600 SAFETY INFORMATION SMALL CHILDREN AND PETS WARNING Immediately dispose of all packing materials, as they can pose a smothering risk to small children and pets. Injury could also occur if children or pets are permitted to play on or under the bed. Do not allow children to operate this bed without adult supervision.
-
Page 6: What Is Included
OWNER’S MANUAL: MOTION 600 WHAT’S INCLUDED Before discarding any packing materials, check the adjustable base shipping carton and verify the following items are included: (1) Power Supply (1) Remote Control (1) Foot Mattress Retainer (6) 3-in-1 Legs (1) AC Power Cord... -
Page 7: Assembly
OWNER’S MANUAL: MOTION 600 ASSEMBLY It is HIGHLY recommended to use two people for the installation of this product. To assemble, please perform the following steps: Carefully lift the base from the shipping carton, keeping the unit’s topside down. Remove the plastic wrapping from the bottom to access the bases. - Page 8 OWNER’S MANUAL: MOTION 600 ASSEMBLY Insert DC cord from base into the power supply. LOCK Insert the AC cord into the power supply. TO OUTLET Carefully rotate the base on its side, then lift and place on legs. WARNING DO NOT TILT or LEAN base on the installed legs when turning base over.
- Page 9 OWNER’S MANUAL: MOTION 600 ASSEMBLY Insert the mattress retainer bar upright as shown. Lift the battery cover and insert the two AAA size batteries (included) into the remote as shown in the figure. Replace the battery cover. Remote is already linked with the base.
-
Page 10: Remote Guide
OWNER’S MANUAL: MOTION 600 REMOTE GUIDE POSITIONS Lock Pairing PAIR Memory Position A MEMORY MEMORY Memory Position B Head Up Neck Tilt Forward Neck Tilt Backward Foot Up Foot Down FLAT Flat Zero Gravity Position Anti Snore Position ANTI SNORE Head Down SLEEP ENHANCEMENT™... -
Page 11: Operation
OWNER’S MANUAL: MOTION 600 OPERATION PAIR Locks and unlocks remote Pairs remote to base. control. Press and hold lock See page 14 for details. button until lock button flashes red. To unlock, press and hold for 5 seconds. MEMORY MEMORY... - Page 12 OWNER’S MANUAL: MOTION 600 OPERATION Press and hold the HEAD UP button to raise the head position. Release Press and hold the NECK Press and hold the NECK button when desired TILT FORWARD button TILT BACK button to position is reached.
- Page 13 OWNER’S MANUAL: MOTION 600 OPERATION WAVE TIMER INTENSITY Press the WAVE button to Set time for massage to run. Press the INTENSITY button increase and decrease the pulse to increase and decrease the of the massage. intensity of the massage.
-
Page 14: Pairing Remote
OWNER’S MANUAL: MOTION 600 PAIRING REMOTE NOTE: Your base comes with a ready-to-use, factory paired remote. Pairing instructions are for replacement remotes or trouble shooting purposes. PAIRING REMOTE TO BASE PAIRING REMOTE TO BASE Double click the PAIR button on the control box (light will turn blue during the pairing process). -
Page 15: Troubleshooting
OWNER’S MANUAL: MOTION 600 TROUBLESHOOTING In the event the base fails to operate, investigate the symptoms and possible solutions provided below: Remote control illuminates and appears to be operable, but no features of the base will activate. Unplug power cord, wait 30 seconds and plug in to reset electronic components. -
Page 16: Reprogramming Remote
OWNER’S MANUAL: MOTION 600 REPROGRAMMING REMOTE When syncing 2 TXL, SQ, SCK bases, the ANTI-SNORE, ZERO GRAVITY, MEMORY A and MEMORY B may need to be reprogrammed to match the 2 bases to the same program. ANTI-SNORE FLAT After connecting the sync cable into both bases, press the FLAT button on the remote. -
Page 17: Accessories
OWNER’S MANUAL: MOTION 600 ACCESSORIES HIGH PROFILE LEG KIT HEADBOARD BRACKET KIT Raise height of base to 20”. Attach base to headboard. SKU: GM6LEGEXT SKU: CB18HBBRKT MULTIFUNCTION BRACKET KIT ELEVATION KIT NOTE: 2 MULTIFUNCTION BRACKET KITS NOTE: Compatible with TXL and Q sizes only. -
Page 18: Base Height Guide
NOTE: Height will increase by 4" when used with ELEVATION KIT. DOWNLOAD THE APP This adjustable base* is compatible with our Glideaway Motion for Bluetooth remote app. Go to www.glideaway.com/app to learn more. *With Bluetooth module accessory, sold separately. RESOURCES Accessory Orders and Customer Service 1-855-581-3095 Warranty information is available at glideaway.com... - Page 19 MOTION 600 SLEEP WELL. LIVE BETTER. BE YOUR BEST. 8226 LACKLAND RD. ST. LOUIS, MO 63114 | GLIDEAWAY.COM | 314.426.3999...
