IDEAL INDUSTRIES 62-201 Instruction Manual

Coax Cable Mapper / Mapeador de cable coaxial / Mappeur de câbles coaxiaux
Instruction Manual / Manual de instrucciones / Manuel d'instructions
Features
• Four color coded remote terminators for mapping coax multiple locations
• Terminators are stored on the back of the main test unit when not in use
• F-type interface on main unit and remotes
• F-81 barrel adapter for attaching a remove to a terminated male F connector
• Identifies opens in a coaxial cable line (cut coax, unterminated ends, or loose connectors)
• Identifies shorts in coaxial cable line (shielding contacting conductor pin)
WARNING
Do not attach to live AC circuits. Not for use on electrical circuits or powered outlets. Attach only to
de-energized coaxial cable.
Instructions for Use
1) Attach one or more remote terminators to the coaxial cables that are to be mapped/identified.
Terminators can be pressed directly on to the wall plate outlets with female F ports. Loose or
patch cables will need an F-81 plus a terminator to map.
2) Connect the main test unit can be connected to the other end of one cable, generally where
cables are coming from (demarcation point).
3) Press the test button on the main unit. If the cable attached to the main tester is terminated at the
other end with one of the remotes, the corresponding PASS light will illuminate on the main unit.
4) Continue to test other cables in the same manner until they are identified.
5) Store the remotes by pressing them and F-81 into the tester housing when work is completed.
Troubleshooting
• Remove any splitters or active devices that are installed between the test point and the terminator.
Splitters may interfere with the mapping results. Testing each section of coax independently is
recommended for finding cabling issues.
• OPEN indicates the line under test has no terminator at the other end. When testing a patch cable
with a terminator on the other end, if open is illuminated, the cable connector may not be
terminated correctly.
• SHORT typically indicates a problem with the coax where a staple or other item may have
damaged the cable itself. It may also indicate an issue with the coax connector not being crimped
properly.
IDEAL INDUSTRIES, INC.
Sycamore, IL 60178, U.S.A.
800-435-0705
www.Idealind.com
IS 0053-1
Made in Taiwan / Hecho en Taiwán / Fabriqué à Taiwan
Battery Installation and Replacement
• Unscrew the two screws retaining the battery cap on the bottom of the tester.
• Replace batteries with 2x AAA batteries (1.5V ea., 3V total)
• Replace battery cap and re-install screws to secure cap.
Maintenance/Disposal
• Remove batteries when tester will not be used for an extended period of time.
• Do not expose the tester to moisture, high temperatures or high humidity.
• Remove dust with a dry cloth. Keep tester.
• Before each use, test the unit by placing one terminator on the main unit port and press
test button to ensure batteries and unit are working correctly.
• No user serviceable parts inside the tester
• Do not place equipment and its accessories in the trash. Items must be properly
disposed of in accordance with local regulations. Please see
www.epa.gov/recycle for additional information.
Specifications
• Batteries:
• Maximum Test Length:
• Operating Temperature:
• Storage Temperature:
• Dimensions:

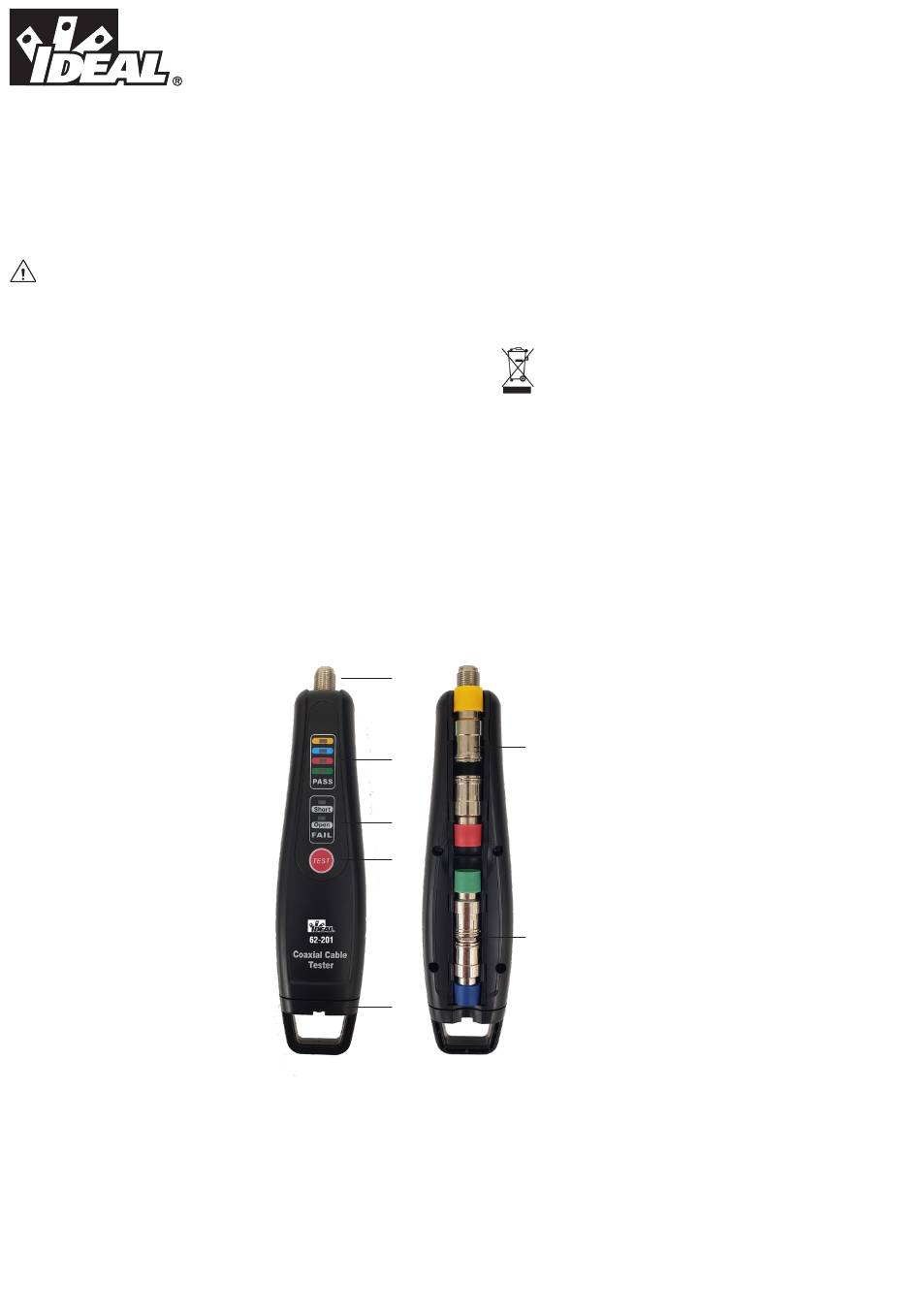

1
1) Main test port
2) Terminator identified LEDs
6
3) Error LED's
2
4) Test button
5) Battery compartment
6) Terminators (4)
7) F-81 barrel adapter
3
1) Puerto de prueba principal
2) LEDs identificados por terminador
4
3) LEDs de error
4) Botón de prueba
5) Compartimento de batería
6) Terminadores (4)
7
7) Adaptador cilíndrico F-81
1) Principal port de test
2) LEDs identifiées des terminateurs
3) LEDs d'erreur
5
4) Bouton de test
5) Compartiment de pile
6) Terminateurs (4)
7) Adaptateur à douille F81
3V (AAA 1.5V x 2)
1000m (3280 feet)
32° to 122°F (0° to 50°C)
14° to 140°F (-10° to 60°C)
6.5" L x 1.6" W x 1.3" D
62-201
