IDEAL INDUSTRIES, INC.

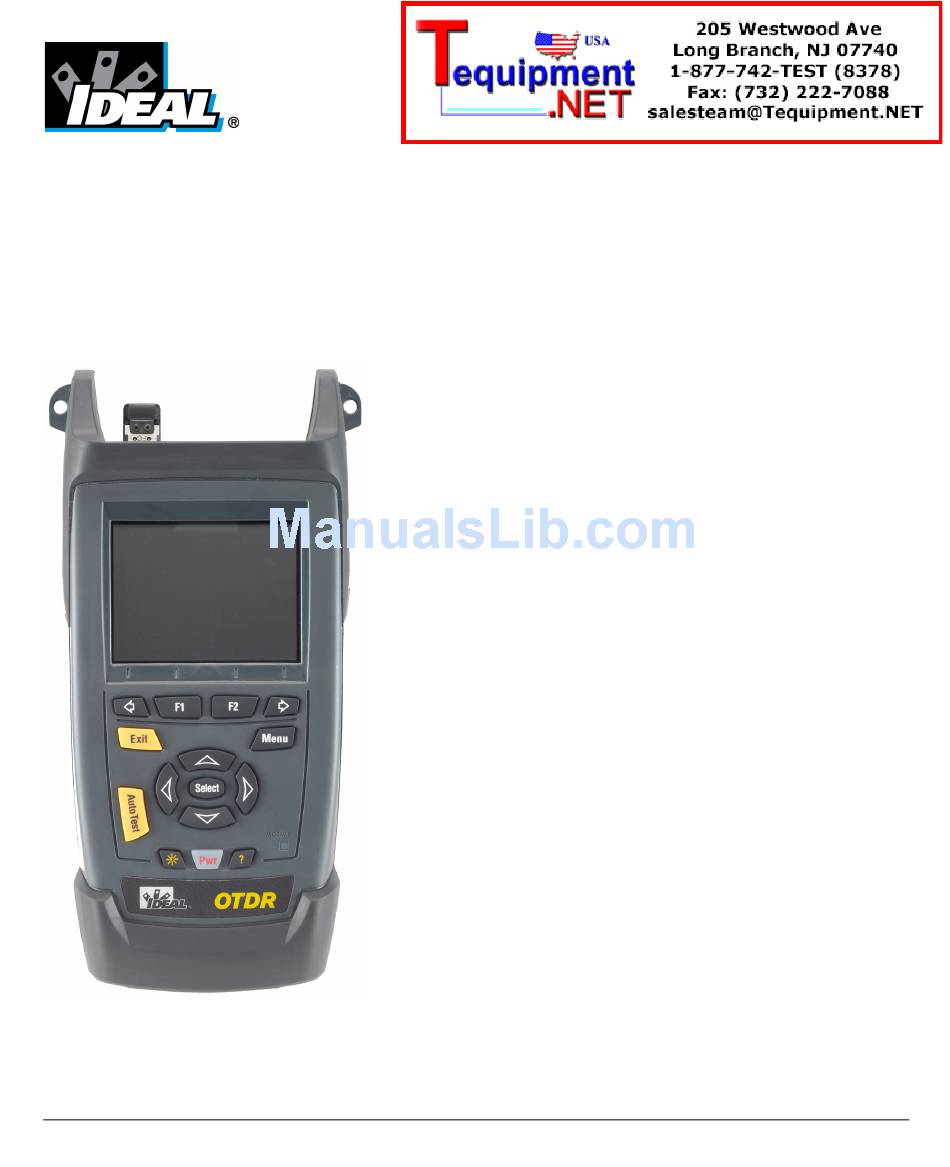

TECHNICAL MANUAL
IDEAL OTDR
Form number: 33-960 Series
Revision: September 12, 2008

Advertisement

Table of Contents
loading

Related Manuals for IDEAL INDUSTRIES OTDR

Summary of Contents for IDEAL INDUSTRIES OTDR

  • Page 1 IDEAL INDUSTRIES, INC. TECHNICAL MANUAL IDEAL OTDR Form number: 33-960 Series Revision: September 12, 2008...
  • Page 2 Copyright © 2008 IDEAL All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, be it electronically, mechanically, or by any other means such as photocopying, recording or otherwise, without the prior written permission of IDEAL (IDEAL).

  • Page 3: Table Of Contents

    Laser Safety Information (Units without VFL) ................9 Laser Safety Information (Units with VFL) ................10 Electrical Safety Information ....................10 3 Getting Started with Your OTDR ............... 11 Turning the Unit On and Off ....................11 Using Menus and Keypad .....................13 4 Customizing Your OTDR ................15 Selecting the Distance Units ....................15...
  • Page 4 Checking Available Memory ....................63 Creating Folders ........................63 Copying, Renaming, or Deleting Files and Folders ..............64 Transferring Results to a Computer ..................66 8 Using Your OTDR as a Light Source ............71 Activating/Deactivating a Light Source .................72 Modulating the Source Signal ....................73 9 Maintenance ....................75 Cleaning UI Connectors ......................76...
  • Page 5 Span End ..........................97 Continuous Fiber .........................98 End of Analysis ........................99 Non-Reflective Event ......................100 Positive Event ........................101 Launch Level ........................102 Fiber Section ........................103 Reflective Event (Possible Echo) ..................104 Echo ..........................105 Merged Reflective Event ....................106 Reflective Event .........................108 Index ......................109 OTDR...

  • Page 6: Certification Information

    Certification Information Certification Information F.C.C. Information Electronic test equipment is exempt from Part 15 compliance (FCC) in the United States. However, compliance verification tests are systematically performed on most IDEAL equipment. Information Electronic test equipment is subject to the EMC Directive in the European Union.
  • Page 7 European Community Directives: 89/336/EEC Electromagnetic Compatibility and 72/23/EEC Low Voltage Safety. Issued on 1st of July, 2008 For and on behalf of Ideal Industries at the above address Tony Kumeta, European General Manager Ideal Industries Limited...

  • Page 9: Introducing The Ideal Otdr

    Introducing the IDEAL OTDR The IDEAL OTDR is a compact handheld OTDR optimized for access/FTTx network testing. The unit can be equipped with optional power meter, visual fault locator (VFL), and fiber inspection probe. Main Features Test can be started by pressing a single key...
  • Page 10 Introducing the IDEAL OTDR Main Features Visual fault locator port and soft cap (optional) Power meter detector port (optional) Singlemode OTDR port Infrared port (for printer) On some models only: Singlemode OTDR port for in-service testing Inspection probe Multimode OTDR port...
  • Page 11 Introducing the IDEAL OTDR Main Features Other test utilities: Visual fault locator to inspect or identify fibers (optional) Video fiber inspection probe (optional) Power meter (optional) Safety label and serial number (under the stand) Quick reference labels Battery compartment (two rechargeable batteries)
  • Page 12 Main Features Other useful characteristics: Customizable test thresholds with visual pass/fail analysis Memory for 500 OTDR traces and possible data transfer to a computer Energy-saving features: automatic backlight or unit shutdown Multilingual graphical user interface Comprehensive online help available from each function and Quick...

  • Page 13: Power Sources

    Two lithium-ion rechargeable batteries (automatically take over if you disconnect the AC adapter/charger). Battery recharge is automatic when the AC adapter/charger is connected. Typical Applications You can use the OTDR for several applications, such as: Short-link testing Service activation Fault finder...

  • Page 14: Otdr Basic Principles

    OTDR Basic Principles OTDR Basic Principles An OTDR sends short pulses of light into a fiber. Light scattering occurs in the fiber due to discontinuities such as connectors, splices, bends, and faults. An OTDR then detects and analyzes the backscattered signals. The signal strength is measured for specific intervals of time and is used to characterize events.
  • Page 15 Introducing the IDEAL OTDR OTDR Basic Principles An OTDR uses the effects of Rayleigh scattering and Fresnel reflection to measure the fiber condition, but the Fresnel reflection is tens of thousands of times greater in power level than the backscatter.

  • Page 16: Conventions

    Introducing the IDEAL OTDR Conventions Conventions Before using the product described in this manual, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.

  • Page 17: Safety Information

    The product is safe under reasonably foreseeable conditions of operation but it may be hazardous if you use optics within a diverging or collimated beam. Do not view directly with optical instruments. Affixed to back (under the stand) OTDR...

  • Page 18: Laser Safety Information (Units With Vfl)

    (under the stand) connector panel Electrical Safety Information The AC adapter/charger provided with this unit (14.4 W/9 V) is specifically designed to work with your IDEAL OTDR. ARNING Use the AC adapter/charger indoors only. Any other AC adapter/charger or power source (for example, car outlet) must output at least 12 W.

  • Page 19: Getting Started With Your Otdr

    Getting Started with Your OTDR Turning the Unit On and Off When you turn the unit on, you may use it immediately under normal conditions. When the unit is turned off, it keeps the following parameters in its internal memory:...
  • Page 20 To turn the unit on: Press Pwr. The unit initializes for a few seconds and displays the OTDR Parameters pane. To enter the suspend mode: Hold down the Pwr key for about two seconds.

  • Page 21: Using Menus And Keypad

    Using Menus and Keypad You can access optical tools from the keypad or menu. Menu options may differ depending on your unit configuration. Status Bar Utility name (OTDR, File Manager, etc.) Trace name OTDR status (active/not active) Battery status and AC adapter/charger status...
  • Page 22 Getting Started with Your OTDR Using Menus and Keypad To activate F1/F2 functions: 1. Use the left/right function arrows (on each side of the F1/F2 keys) to display the desired function or parameter. 2. Press the F1 or F2 key located just below.

  • Page 23: Customizing Your Otdr

    Customizing Your OTDR Selecting the Distance Units There are three distance units available: meters, miles, and kilofeet. Note: The attenuation values are always expressed in dBs per kilometer. To select distance units: 1. Press Menu, select Setup > Unit, and then press Select.

  • Page 24: Selecting The Language Of Operation

    (default is English). If other languages become available in the future, you could access them by replacing the unit software (see Upgrading the IDEAL OTDR Software on page 94). Values are kept in memory when you turn the unit off.

  • Page 25: Setting The Date And Time

    Customizing Your OTDR Setting the Date and Time Setting the Date and Time When saving results, the unit also saves the corresponding date and time. You must enter the date according to the year-month-day format and the time according to the 24-hour format.

  • Page 26: Adjusting The Brightness

    Customizing Your OTDR Adjusting the Brightness Adjusting the Brightness To fit your work environment, you may adjust the LCD brightness. Values are kept in memory when you turn the unit off. To adjust the display brightness: Press the key repeatedly to switch between brightness levels (0-3-6-9).

  • Page 27: Selecting A Printer

    If you want to print on a network printer or if you want to print other type of reports, you must transfer the desired files on a computer on which OTDR Viewer is installed. To select a printer: 1. Press Menu, select Setup > Unit, and then press Select.

  • Page 28: Configuring The Power Management Settings

    Customizing Your OTDR Configuring the Power Management Settings Configuring the Power Management Settings When you do not use the unit for a while, the display may be dimmed to save power. You can set idle durations for AC adapter/charger and battery operation.

  • Page 29: Setting Up Your Otdr

    Setting Up Your OTDR Installing the Universal Interface (UI) The UI fixed baseplate is available for connectors with angled (APC) or non-angled (UPC) polishing. To install a UI connector adapter onto the UI baseplate: 1. Hold the UI connector adapter so the dust cap opens downwards.

  • Page 30: Cleaning And Connecting Optical Fibers

    Setting Up Your OTDR Cleaning and Connecting Optical Fibers Cleaning and Connecting Optical Fibers MPORTANT To ensure maximum power and to avoid erroneous readings: Always clean fiber ends as explained below before inserting them into the port. IDEAL is not responsible for damage or errors caused by bad fiber cleaning or handling.

  • Page 31: Setting General Otdr Parameters

    Setting General OTDR Parameters Setting General OTDR Parameters You can set preferences such as: Grid: You can display or hide the grid appearing on the graph’s background. By default, the grid is displayed. Zoom and markers: You can display or hide the zoom controls as well as the markers appearing on the graph.
  • Page 32 You can press Select one more time to clear the boxes. To revert to the factory-default settings: 1. Press Menu, select Setup > OTDR, and then press Select. 2. From the General pane, use the arrows to select Default, and then press Select to confirm.

  • Page 33: Setting The Acquisition Parameters

    The helix factor takes into account the difference between the length of the cable and the length of the fiber inside the cable; it does not vary with wavelengths. The length of the OTDR distance axis is always equivalent to the physical length of the cable (not the fiber). OTDR...
  • Page 34 Setting the Acquisition Parameters To set the IOR, backscatter, and helix factor parameters: 1. Press Menu, select Setup > OTDR, and then press Select. 2. Display the Acquisition pane (F1/F2 key). 3. Use the up/down arrows to select the wavelength box, and then press Select to open it.
  • Page 35 Enabling or Disabling the First Connector Check The first connector check feature is used to verify that the fibers are properly connected to the OTDR. It verifies the injection level and the reflectance of the first connector. It displays a message when a unusually high loss or reflectance occur at the first connection.

  • Page 36: Setting Analysis Parameters

    Setting Analysis Parameters Setting Analysis Parameters To define the actual fiber span start, you can set the launch fiber length. When you perform tests with your unit, you connect a launch fiber between your unit and the fiber under test. This is why, by default, the fiber span includes the launch fiber.
  • Page 37 As you enter the value, the application indicates the minimum or maximum value allowed. To revert to the factory-default settings: 1. Press Menu, select Setup > OTDR, and then press Select. 2. From the Acquisition pane, use the arrows to select Default, and then press Select.

  • Page 38: Setting Pass/Fail Thresholds

    Values appearing in the event table will also be displayed in white on a red background. To set pass/fail thresholds: 1. Press Menu, select Setup > OTDR, and then press Select. 2. Use the left/right function arrows until you see Pass/Fail Thresholds, and then display the pane (F1/F2 key).
  • Page 39 8. Press OK (F1/F2 key) to hide the keyboard. To revert to the factory-default settings: 1. Press Menu, select Setup > OTDR, and then press Select. 2. From the Pass/Fail Thresholds pane, use the arrows to select Default, and then press Select.

  • Page 40: Setting Macrobend Parameters

    Setting Macrobend Parameters Setting Macrobend Parameters Note: This function is available only with the optional FTTx software package. Your unit can locate macrobends by comparing the loss values measured at a certain location, for a certain wavelength (for example, 1310 nm) with the loss values measured at the corresponding location, but for a greater wavelength (for example, 1550 nm).
  • Page 41 Setting Macrobend Parameters To set macrobend parameters: 1. Press Menu, select Setup > OTDR, and then press Select. 2. Display the Macrobend pane (F1/F2 key). 3. If necessary, press Select to select the Display macrobend check box. If you clear the check box, the application will not detect macrobends.

  • Page 42: Setting Storage Parameters

    1310 nm and 1550 nm for your test). The native format contains all wavelengths in a single trace file. To set the autonaming scheme: 1. Press Menu, select Setup > OTDR, and then press Select. 2. Use the left/right function arrows until you see Storage, and then display the pane (F1/F2 key).
  • Page 43 Select to confirm. To revert to the factory-default for file format and autonaming scheme: 1. Press Menu, select Setup > OTDR, and then press Select. 2. Use the left/right function arrows until you see Storage, and then display the pane (F1/F2 key).

  • Page 45: Testing Fibers

    This function is available only with the optional FTTx software package. Manual (advanced): offers all the tools you need to perform complete OTDR tests and measurements manually and gives you control over all test parameters. Real time: enables to view sudden changes in the fiber link. In this mode, trace is refreshed instead of averaged.

  • Page 46: Testing In Auto Mode

    OTDR SM Live for filtered wavelength). AUTION Never connect a live fiber to the OTDR SM or OTDR MM port. Any incoming signal greater than –40 dBm will affect the OTDR acquisition. Any incoming signal greater than –20 dBm could damage your OTDR permanently.
  • Page 47 Testing Fibers Testing in Auto Mode 3. Press Menu, select OTDR, and then press Select. 4. Use the left/right function arrows until you see Parameters, and then display the pane (F1/F2 key). 5. Select the test mode as follows: 5a. Use the arrows to select the OTDR mode list, and then press Select to open the list.
  • Page 48 Testing Fibers Testing in Auto Mode 8. Specify whether the unit must keep the fiber settings for all acquisitions or not, as follows: 8a. Use the arrows to select the Keep parameters list, and then press Select to open it. 8b.

  • Page 49: Testing In Fault Finder Mode

    OTDR SM Live for filtered wavelength). AUTION Never connect a live fiber to the OTDR SM or OTDR MM port. Any incoming signal greater than –40 dBm will affect the OTDR acquisition. Any incoming signal greater than –20 dBm could damage your OTDR permanently.
  • Page 50 Testing Fibers Testing in Fault Finder Mode 3. Press Menu, select OTDR, and then press Select. 4. Use the left/right function arrows until you see Parameters, and then display the pane (F1/F2 key). 5. Select the test mode as follows: 5a.

  • Page 51: Testing In Manual (Advanced) Mode

    OTDR SM Live for filtered wavelength). AUTION Never connect a live fiber to the OTDR SM or OTDR MM port. Any incoming signal greater than –40 dBm will affect the OTDR acquisition. Any incoming signal greater than –20 dBm could damage your OTDR permanently.
  • Page 52 Testing Fibers Testing in Manual (Advanced) Mode 5. Select the test mode as follows: 5a. Use the arrows to select the OTDR mode list, and then press Select to open it. 5b. Use the up/down arrows to select Manual, and then press Select to confirm.
  • Page 53 9b. Use the up/down arrows to select the desired duration for the acquisition, and then press Select to confirm. 10. Press Auto Test to start the acquisition. You can stop the acquisition at any time by pressing Auto Test once again. OTDR...

  • Page 54: Monitoring Fiber In Real Time Mode

    OTDR SM Live for filtered wavelength). AUTION Never connect a live fiber to the OTDR SM or OTDR MM port. Any incoming signal greater than –40 dBm will affect the OTDR acquisition. Any incoming signal greater than –20 dBm could damage your OTDR permanently.
  • Page 55 Testing Fibers Monitoring Fiber in Real Time Mode 5. Select the test mode as follows: 5a. Use the arrows to select the OTDR mode list and press Select to open the list. 5b. Use the up/down arrows to select Real time, and then press Select to confirm.
  • Page 56 If you only want to stop monitoring, press Auto Test once again. If you are ready to start a test, proceed as follows: 1. Press Exit to exit the Trace pane. 2. In the displayed panel, open the OTDR mode list, and then select Manual. IDEAL...

  • Page 57: Launch Conditions For Multimode Measurements

    (five close-wound turns around a mandrel tool of a given diameter). Your unit has been conditioned for 62.5 MMF testing. However, you can also test with 50 MMF fibers. OTDR...
  • Page 58 Loss measurements can be turns around the mandrel tool) slightly pessimistic (higher loss) on the patchcord connecting when compared to loss the OTDR to the fiber under measurements done with a test. 50 MMF source compliant to As per FOTP-34: FOTP34, Method A2.

  • Page 59: Managing Test Results

    Trace Info. (trace information) pane Summary Pane This pane is displayed once the test is complete if you selected the corresponding feature (see Setting General OTDR Parameters on page 23). You can also select Summary (F1/F2 keys). Pass/Fail status of fiber under test...

  • Page 60: Events Pane

    Managing Test Results Events Pane Events Pane This pane shows the list of events found during the test. You can select Events (F1/F2 keys) to display the pane. Values appearing in white on a red background exceed the defined thresholds. Wavelength of the displayed trace Use left/right arrows to switch between the different...

  • Page 61: Trace Pane

    Relative power at markers A and B (use left/right arrows to move markers) Loss difference between markers A and B Distance between markers A and B Events (use up/down Reflectance value arrows to view them in Loss value turn) OTDR...

  • Page 62: Trace Info. Pane

    Managing Test Results Trace Info. Pane Trace Info. Pane After acquiring a trace, you might want to view details about the acquisition. You can also include information about the tested fiber and job or add comments. This information is saved along with the trace. Some of the information is common to all wavelengths (location A and B, cable ID and fiber ID).
  • Page 63 Trace Info. Pane To document results: 1. Once a trace has been acquired or reopened, press Menu, select OTDR, and then press Select. 2. Use the left/right function arrows until you see Trace Info., then display the pane (F1/F2 key).

  • Page 64: Using Markers

    (see Setting General OTDR Parameters on page 23). To move a marker: 1. Press Menu, select OTDR, and then press Select. 2. Use the left/right function arrows until you see Trace, and then display the pane (F1/F2 key). 3. Use Next Marker (F1/F2 key) to select the marker to move.

  • Page 65: Using Zoom Controls

    Note: If you want the application to automatically zoom on the defined fiber span, see Setting General OTDR Parameters on page 23. Note: If you do not see the zoom controls on your unit, they are probably hidden (see Setting General OTDR Parameters on page 23).
  • Page 66 Managing Test Results Using Zoom Controls To view specific portions of the graph: 1. Press Menu, select OTDR, and then press Select. 2. Use the left/right function arrows until you see Trace, and then display the pane (F1/F2 key). 3. Display the Manual Zoom pane (F1/F2 key).

  • Page 67: Printing Test Results

    Full Trace. 2. Press Full Trace (F1/F2 key) to revert to complete graph view. Note: If the Automatic zoom on fiber span feature is selected in the OTDR setup, the application will zoom in between span start and span end.

  • Page 68: Opening Trace Files

    Your unit can display traces saved in native (.trc) and Bellcore (.sor) formats. To open trace files: 1. Press Menu, select OTDR, and then press Select. 2. Use the left/right function arrows until you see Open, then display the pane (F1/F2 key).

  • Page 69: Saving Files

    Parameters for Images on page 93. Ping files. For information on storage settings, see Setting Storage Parameters for Ping Tests on page 98. Trace route files. For more information on storage settings, see Setting Storage Parameters for Trace Route Tests on page 99. OTDR...
  • Page 70 Managing Test Results Saving Files To save files: 1. Use the left/right function arrows until you see Save, and then display the pane (F1/F2 key). 2. If desired, press New Folder to create folders (for more information, see Creating Folders on page 63).

  • Page 71: Checking Available Memory

    Managing Test Results Checking Available Memory Checking Available Memory You can save up to 500 OTDR traces in the unit’s memory. To view the available memory on your unit: 1. Press Menu, select File Manager/Info. > File Manager, and then press Select.

  • Page 72: Copying, Renaming, Or Deleting Files And Folders

    Managing Test Results Copying, Renaming, or Deleting Files and Folders Copying, Renaming, or Deleting Files and Folders You can copy, rename, or delete folders or single files directly from your unit. To copy files: 1. Press Menu, select File Manager/Info. > File Manager, and then press Select.
  • Page 73 Select to select it. 3. Select Delete Files (F1/F2 key). Note: If the Delete Files feature is not available, it is probably because the item is not selected. Press Enter to select it. 4. Answer Yes (F1/F2 key) to confirm the deletion. OTDR...

  • Page 74: Transferring Results To A Computer

    Transferring Results to a Computer Transferring Results to a Computer You can transfer files from your OTDR to a USB memory drive, or a computer. You can also transfer data from a storage device or from a computer to your OTDR.
  • Page 75 You can now manage your files and folders as you wish. Note: You can connect a memory drive even while File Manager is open. MPORTANT Transferred files are not automatically deleted from your unit. 3. When you have finished, remove the card or the memory drive. OTDR...
  • Page 76 To transfer files or folders between your unit and a computer: MPORTANT You must install Microsoft ActiveSync on the computer you want to use with your OTDR. Otherwise, you will not be able to transfer data. Before connecting your unit to a computer, you must install the required software on the computer.
  • Page 77 Managing Test Results Transferring Results to a Computer 3. Once ActiveSync indicates that the computer and the OTDR are connected, right-click the ActiveSync icon then select Explore to access the files and folders stored on your OTDR. On the computer desktop, double-click My Computer. Double-click Mobile Device to access the files and folders stored on your unit.

  • Page 79: Using Your Otdr As A Light Source

    Using Your OTDR as a Light Source You can use your OTDR as a light source. The source signal uses the OTDR ports. This signal can be: continuous (constant power over the temperature range, but about 3 dB lower than maximum) modulated (270 Hz, 1 kHz or 2 kHz, 270 Hz blink, 1 kHz blink or 2 kHz blink).

  • Page 80: Activating/Deactivating A Light Source

    1. Connect the fiber under test to the source port (see Cleaning and Connecting Optical Fibers on page 22). If your unit is equipped with two OTDR ports, ensure that you connect the fiber to the appropriate port, depending on the wavelength you intend to use.

  • Page 81: Modulating The Source Signal

    Using Your OTDR as a Light Source Modulating the Source Signal Modulating the Source Signal When you turn the unit on, the signal is continuous (unmodulated) by default. When you switch wavelengths, the modulation remains the same. Modulation is indicated in the Source pane.

  • Page 83: Maintenance

    If any liquids are spilled on or into the unit, turn off the power immediately and let the unit dry completely. ARNING Use of controls, adjustments, and procedures for operation and maintenance other than those specified herein may result in hazardous radiation exposure. OTDR...

  • Page 84: Cleaning Ui Connectors

    Maintenance Cleaning UI Connectors Cleaning UI Connectors Regular cleaning of UI connectors will help maintain optimum performance. There is no need to disassemble the unit. MPORTANT If any damage occurs to internal connectors, the module casing will have to be opened and a new calibration will be required. To clean UI connectors: 1.
  • Page 85 Verifying the surface of the connector WHILE THE UNIT IS ACTIVE WILL result in permanent eye damage. 7. Put the UI back onto the instrument (push and turn clockwise). 8. Throw out cleaning tips and wiping cloths after one use. OTDR...

  • Page 86: Recharging Main Batteries

    Maintenance Recharging Main Batteries Recharging Main Batteries The charge status of both batteries is shown on the Unit Information pane (press Menu, select File Manager/Info. > Information, and then press Select). The charge status is also indicated by the LEDs on the left side of the unit: Status LED Battery Charge Status...

  • Page 87: Replacing Batteries

    For optimum reliability, put the battery lock back in place, as shown in the figure above. 5. Close the battery compartment door; you cannot turn on the unit if the battery door is open. OTDR...

  • Page 88: Recalibrating The Unit

    Maintenance Recalibrating the Unit Recalibrating the Unit Manufacturing and service center calibrations are based on the ISO/IEC 17025 Standard, which states that calibration documents must not contain a recommended calibration interval, unless this has been previously agreed upon with the customer. Validity of specifications depends on operating conditions.

  • Page 89: Upgrading The Ideal Otdr Software

    USB cable MPORTANT You must install Microsoft ActiveSync on the computer you want to use with your OTDR. Otherwise, you will not be able to upgrade the software. Before connecting your unit to a computer, you must install the required software on the computer.
  • Page 90 2. Follow the on-screen instructions. All the necessary components, including ActiveSync, will be installed on your computer. 3. Once the installation is complete, turn on the OTDR. 4. Connect the provided USB cable to the computer (type A end) and your OTDR (type B end).

  • Page 91: Recycling And Disposal (Applies To European Union Only)

    Except for reasons of safety or environmental benefit, equipment manufactured by IDEAL, under its brand name, is generally designed to facilitate dismantling and reclamation. For complete recycling/disposal procedures and contact information, visit the IDEAL Web site at www.europe.idealindustries.de. OTDR...

  • Page 93: 10 Troubleshooting

    The application displays a The fiber under test is too Ensure that the fiber under message indicating that a long. test is shorter than the “Non-resolved fiber end” maximum length the OTDR event has been found. can measure. OTDR...
  • Page 94 Turn the unit on again to reset You can no longer view the Shut down the unit by OTDR application. pressing Pwr and holding it down. You will hear a first beep; release the key after you hear a second beep.
  • Page 95 Light has been detected on Disconnect the fiber from the message indicating that a the OTDR port during the OTDR port. Press OK to close “live fiber error” occurred. acquisition or while you the message. were monitoring a fiber in Start another acquisition real-time mode.

  • Page 96: Obtaining Online Help

    Troubleshooting Obtaining Online Help Obtaining Online Help Context-sensitive help is conveniently available at all times to guide you through the use of your unit. To obtain online help about the current function: On the unit keypad, press the ? key. To navigate in the online help: Use up/down arrows to scroll through help page.

  • Page 97: Customer Support And Technical Assistance

    North and South America Sales and Service Tel: 858-279-2955 / 800-854-2708 9145 Balboa Avenue Fax: 858-278-5141 San Diego, CA 92123, USA IDEAL Industries (Canada), Inc. 33 Fuller Road Tel.: 905-683-3400 / 800-527-9105 Ajax, Ontario L1S 2E1, Canada Fax: 905-683-0209 Ideal_Canada@idealindustries.com IDEAL Industries (U.K.) Ltd.
  • Page 98 Fax: 1300 765 801 / 61300 765 801 GPO BOX 5124 Mobile: 0405 123 100 / 61405 123 100 Sydney, NSW 2001, Australia Ideal_Australia@idealindustries.com IDEAL Industries China L.L.C Unit 505, Tower W1, The Towers, Tel.: 86-10... / 86-10... Oriental Plaza Fax: 86-10-8518-3143 No.

  • Page 99: Transportation

    Pack the unit in its original packing material when shipping. Avoid high humidity or large temperature fluctuations. Keep the unit out of direct sunlight. Avoid unnecessary shocks and vibrations. OTDR...

  • Page 101: 11 Warranty

    IDEAL shall not be liable for damages resulting from improper usage or unauthorized modification of the product, its accompanying accessories and software. OTDR...

  • Page 102: Exclusions

    Warranty Exclusions Exclusions IDEAL reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (UI) used with IDEAL products are not covered by this warranty.

  • Page 103: Service And Repairs

    After repair, the equipment will be returned with a repair report. If the equipment is not under warranty, you will be invoiced for the cost appearing on this report. IDEAL will pay return-to-customer shipping costs for equipment under warranty. Shipping insurance is at your expense. OTDR...

  • Page 104: Ideal Service Centers Worldwide

    Warranty IDEAL Service Centers Worldwide IDEAL Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. IDEAL...

  • Page 105: A Description Of Event Types

    The Span Start of a trace is the event that marks the beginning of the fiber span. By default, the Span Start is placed on the first event of a tested fiber (typically the first connector of the OTDR itself). Span End The Span End of a trace is the event that marks the end of the fiber span.

  • Page 106: Continuous Fiber

    Description of Event Types Continuous Fiber Continuous Fiber Reflected power (dB) Continuous fiber Distance (km) This event indicates that the selected acquisition range was shorter than the fiber length. The fiber end was not detected because the analysis process ended before reaching the end of the fiber.

  • Page 107: End Of Analysis

    The analysis ended before reaching the end of the fiber because the signal-to-noise ratio was too low. The pulse width should therefore be increased so the signal reaches the end of the fiber with a sufficient signal-to-noise ratio. There is no loss or reflectance specified for end-of-analysis events. OTDR...

  • Page 108: Non-Reflective Event

    Description of Event Types Non-Reflective Event Non-Reflective Event Reflected power (dB) Non-reflective event Linear downward slope due to Rayleigh backscatter Distance (km) This event is characterized by a sudden decrease in the Rayleigh backscatter signal level. It appears as a discontinuity in the downward slope of the trace signal.

  • Page 109: Positive Event

    (backscatter and backscatter capture coefficients). A loss value is specified for positive events. The loss specified does not indicate the true loss of the event. The true loss has to be measured by performing bidirectional fiber measurements and bidirectional analysis. OTDR...

  • Page 110: Launch Level

    Description of Event Types Launch Level Launch Level Reflected power (dB) Launch level event position Second event Launch level Linear area Distance (km) This event indicates the level of the signal launched into the fiber. The figure above shows how the launch level is measured. A straight line is plotted using least-square approximation to fit all trace points in the linear area between the first and second detected events.

  • Page 111: Fiber Section

    Detected events are distinct—even if they cover more than one point on the trace. A loss value is specified for fiber section events. No reflectance is specified for this type of event. Each fiber section has its own length, attenuation and loss value. OTDR...

  • Page 112: Reflective Event (Possible Echo)

    In the example above, the launched pulse hits the third connector, is reflected back to the OTDR and reflected again into the fiber. It then reaches the third connector a second time and is reflected once more to the OTDR.

  • Page 113: Echo

    In the example above, the launched pulse travels up to the end connector and is reflected back toward the OTDR. Then, it reaches the second connector and is reflected again toward the end connector. It is then reflected back to the OTDR.

  • Page 114: Merged Reflective Event

    Description of Event Types Merged Reflective Event Merged Reflective Event Reflected power (dB) Reflective events Point A Δ Total loss ( Point B Merged Reflective event position Distance (km) This symbol denotes a reflective event combined with one or more other reflective events.
  • Page 115 The total loss (Δ dB) equals the power difference between the point where the first event begins (point A) and the point on the projected straight line located just below the first event (point B). No loss value can be specified for the subevents. OTDR...

  • Page 116: Reflective Event

    Description of Event Types Reflective Event Reflective Event Reflected Clipped level power (dB) Reflective events Distance (km) Reflective faults appear as spikes in the fiber trace. They are caused by an abrupt discontinuity in the index of refraction. Reflective events cause a significant portion of the energy initially launched into the fiber to be reflected back toward the source.

  • Page 117: Index

    ..........25 conventions, safety........8 reverting to default........ 27 copying files ..........64 backscattering..........7 creating folders ........... 63 basic OTDR theory ......... 6 customer service.......... 95 battery charge status ....... 1, 13, 78 compartment........... 3 description..........5 data printing ..........59 maintenance recommendations ....
  • Page 118 Index detection thresholds end of fiber..........28 factory-default settings reflectance..........28 analysis parameters........ 29 reverting to default ....... 29 IOR, backscatter, helix factor ....27 splice loss ..........28 pass/fail thresholds ........ 31 disk space............ 63 fail value............30 disk, restoring system........86 Fault finder mode, acquiring traces .....
  • Page 119 LED, battery charge status......1 key for............ 13 light source. see source obtaining ..........88 Lithium-Ion battery. see battery ....5 opening trace files ........60 loading traces..........60 ORL thresholds ..........30 loss thresholds ..........30 OTDR...
  • Page 120 ......25 infrared ............ 2 basic theory ..........6 power meter ..........2 general parameters........ 23 printer............2 thresholds..........30 singlemode OTDR ........2 USB ............2 VFL............2 power meter panes optional ........... 3 Events ............ 52 port............
  • Page 121 ........17 unit............12 trace signal modulation ........73 acquisition in Auto mode....... 38 singlemode OTDR port ........2 acquisition in Fault finder mode .... 41 software upgrade........81 acquisition in Manual mode....43 acquisition in Real time mode....46 saving files ..........
  • Page 122 Index trace files managing ..........64 opening ..........60 saving ............ 61 Trace Info. pane .......... 54 Trace pane........... 53 transportation requirements ....75, 91 turning unit on and off ....... 11 typical applications ........5 baseplate ..........21 connector adapter ......... 21 dust cap..........
  • Page 123 www.europe.idealindustries.de...

Table of Contents
