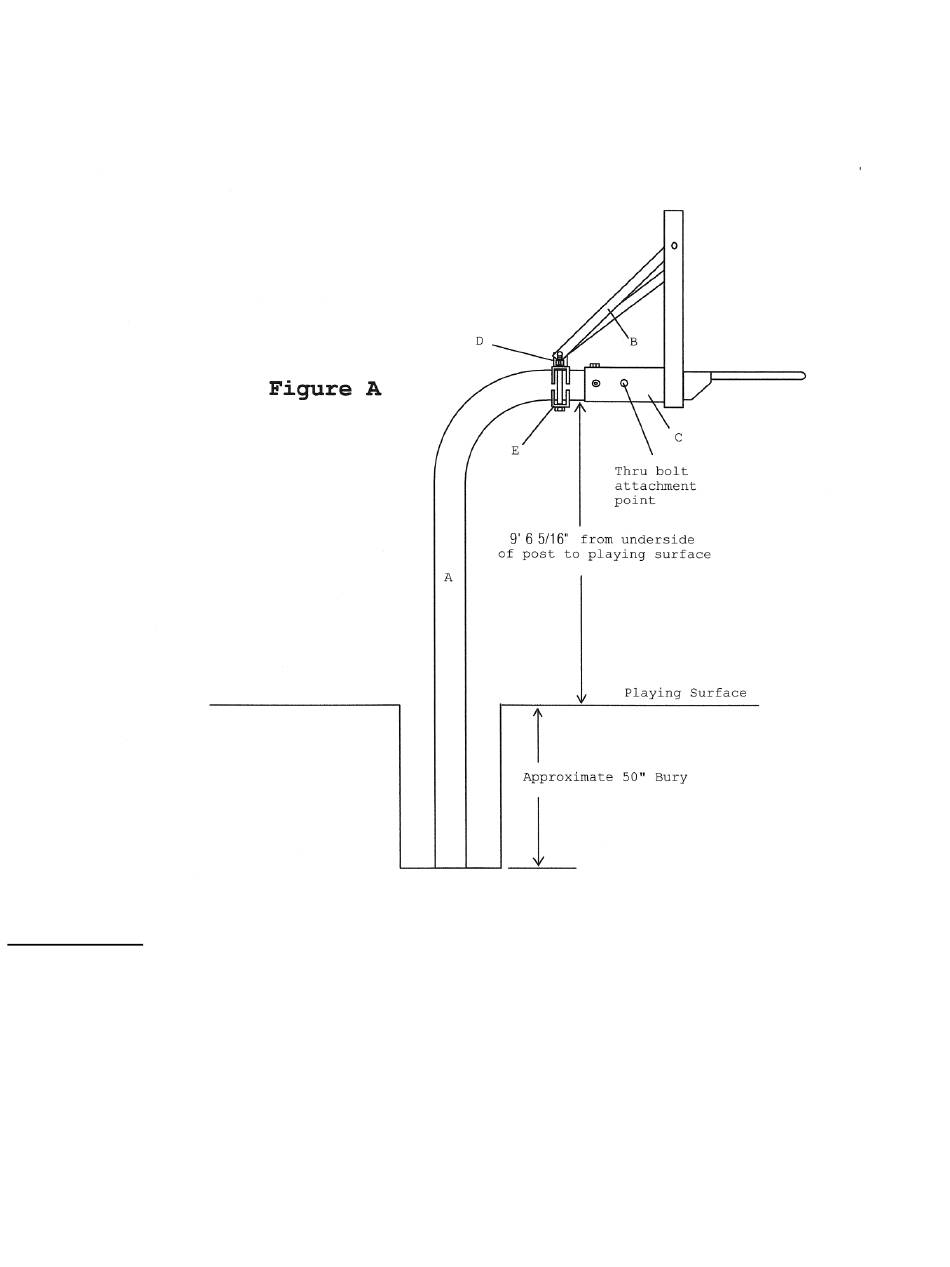

Bill of Materials
A (1) Bent Post
B (2) Backboard Brace
C (1) Nosecone
D (1) T-Clamp
E (1) Saddle Clamp
F (2) ½" Hex Nut
G (2) ½" Lock Washer
H (5) 3/8" x 1 ¼" Hex Bolt
NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to First
Team customer service at 1-888-884-6677.
First Team, Inc.
Brute Series
Assembly Instructions
(rev. 12/30/2021)
I (6) 3/8" Flat Washer
J (4) 3/8" Lock Washer
K (4) 3/8" Hex Nut
L (1) 3/8" x 6 ½" Hex Bolt
M (2) ½" x 9" Hex Bolt
N (4) 3/8" x 1 ½" Hex Bolt
O (4) 3/8" x 2 ½" Hex Bolt
P (2) 3/8" x 1" Hex Bolt
Advertisement
Related Manuals for First Team Brute Series
Summary of Contents for First Team Brute Series
- Page 1 First Team, Inc. Brute Series Assembly Instructions (rev. 12/30/2021) Bill of Materials I (6) 3/8” Flat Washer A (1) Bent Post J (4) 3/8” Lock Washer B (2) Backboard Brace K (4) 3/8” Hex Nut C (1) Nosecone L (1) 3/8” x 6 ½” Hex Bolt D (1) T-Clamp M (2) ½”...
- Page 2 FT222 (42”x72” acrylic backboard) be certain that all four rim grommets are inserted into the rim holes before attaching rim. Grommets prevent backboard from cracking while tightening rim bolts! DO NOT PROCEED if rim grommets are missing, call First Team immediately for replacements 1-888-884-6677. NOTE: GASKETS ARE NOT REQUIRED FOR NON-ACRYLIC BACKBOARDS (steel, aluminum, fiberglass). Simply attach rim, backboard and nosecone together as shown in Figure B using the bolts provided with the rim.
