First Team, Inc.
Bill of Materials

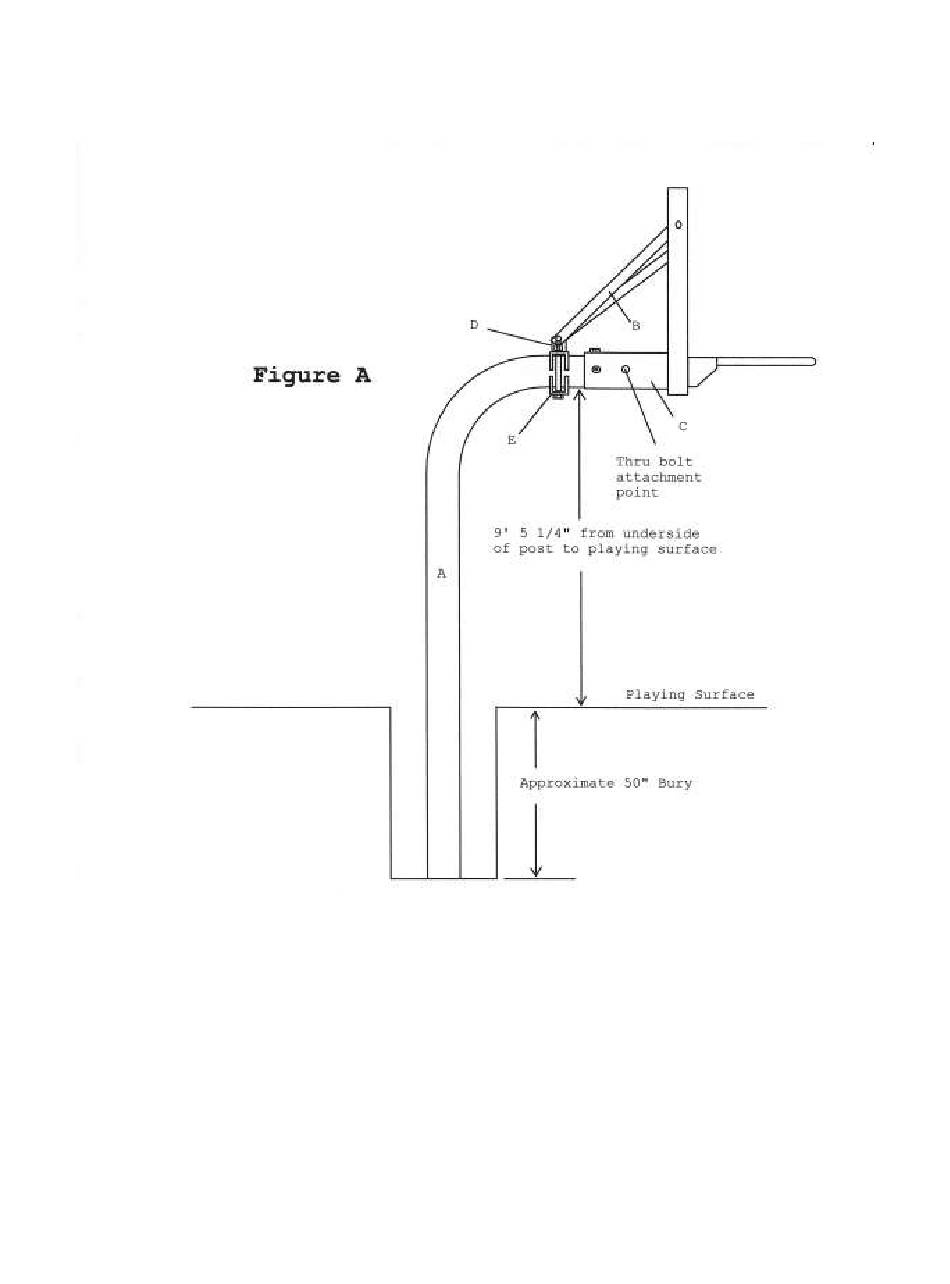

A (1) Bent Post
B (2) Backboard Brace
C (1) Nosecone
D (1) T-Clamp
E (1) Saddle Clamp
F (2) ½" Hex Nut
G (2) ½" Lockwasher
H (5) 3/8" x 1 ¼" Hex Bolt
I (6) 3/8" Flatwasher
NOTE: Immediately unpack all components and cross check against bill of materials. Report any
shortages to First Team customer service at 1-888-884-6677.
Tyrant Series
Assembly Instructions
J (4) 3/8" Lockwasher
K (4) 3/8" Hex Nut
L (1) 3/8" x 7 ½" Hex Bolt
M (2) ½" x 10" Hex Bolt
N (4) 3/8" x 1 ½" Hex Bolt
O (4) 3/8" x 2 ½" Hex Bolt
Advertisement
Table of Contents
Related Manuals for First Team Tyrant Series
Summary of Contents for First Team Tyrant Series
- Page 1 O (4) 3/8” x 2 ½” Hex Bolt G (2) ½” Lockwasher H (5) 3/8” x 1 ¼” Hex Bolt I (6) 3/8” Flatwasher NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to First Team customer service at 1-888-884-6677.
- Page 2 Grommets prevent backboard from cracking while tightening rim bolts! DO NOT PROCEED if rim grommets are missing, call First Team immediately for replacements 1-888-884-6677. NOTE: GASKETS ARE NOT REQUIRED FOR NON-ACRYLIC BACKBOARDS (steel, aluminum, fiberglass).
- Page 3 11. A half inch hole is located on either side of the nosecone. Using the holes as a guide, drill a 7/16” hole through the silver Tyrant post. Finally, permanently secure the nosecone to the Tyrant post using the 3/8”x 7 1/2” hex bolt and remaining 3/8” flatwashers, lockwasher and hex nut.
