First Team, Inc.
Bill of Materials
A (1) RetroFit36 H-Frame Bracket
B (8) 5/16" x 1" Round Machine Screw
C (8) 5/16" Flatwasher
D (8) 5/16" Lockwasher
E (8) 5/16" Hex Nut
*Note: Immediately unpack components and cross check with bill of
materials. Report any shortages to First Team customer service at 1-888-884-
6677.
RETROFIT36
Assembly Instructions

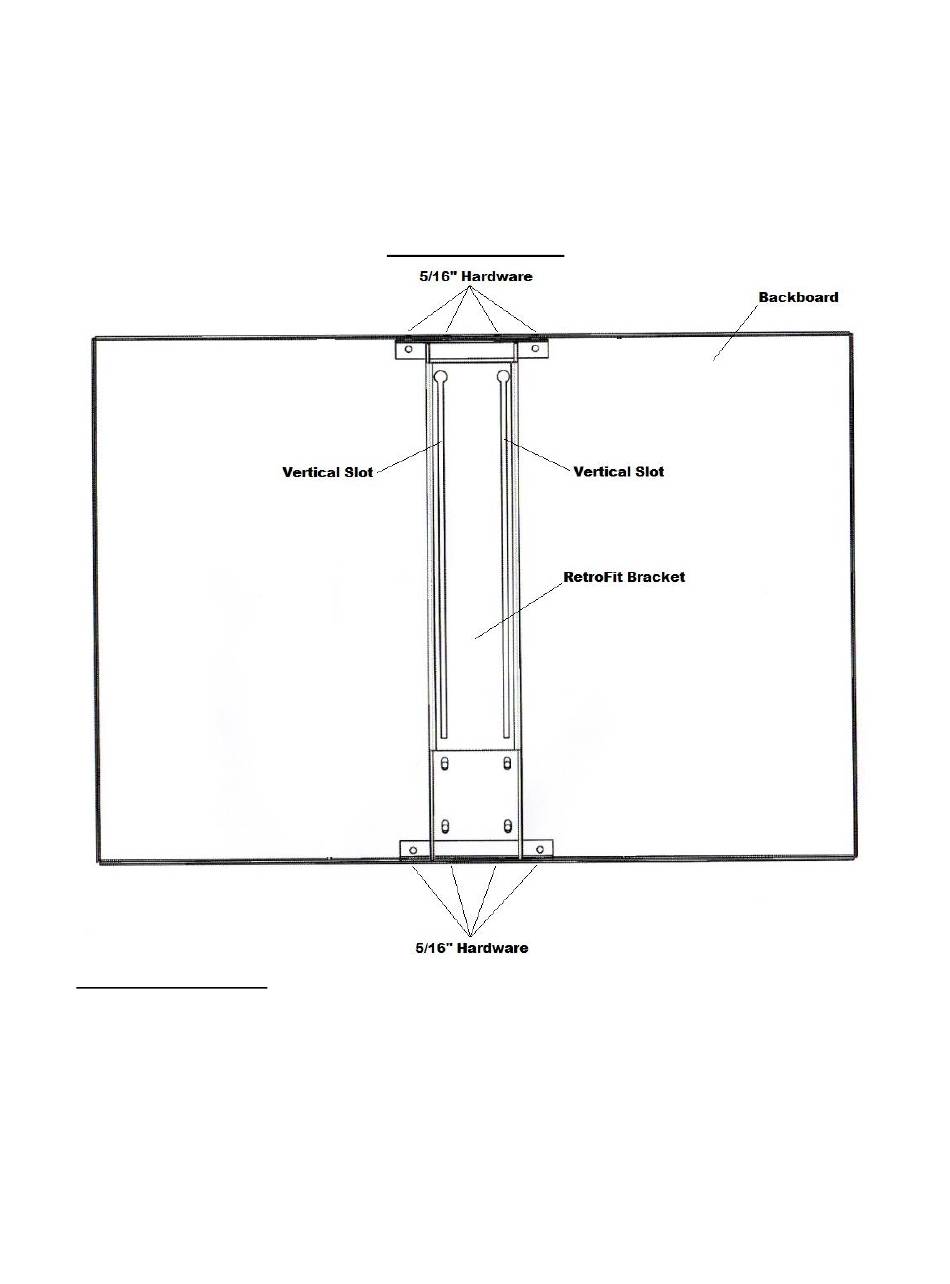

FIGURE A
F (4) 3/8"x 1 ½" Carriage Bolt
G (4) 3/8" Flatwasher
H (4) 3/8" Lockwasher
I (4) 3/8" Hex Nut
Advertisement
Table of Contents
Related Manuals for First Team RetroFit36 III
Summary of Contents for First Team RetroFit36 III
- Page 1 H (4) 3/8” Lockwasher D (8) 5/16” Lockwasher I (4) 3/8” Hex Nut E (8) 5/16” Hex Nut *Note: Immediately unpack components and cross check with bill of materials. Report any shortages to First Team customer service at 1-888-884- 6677.

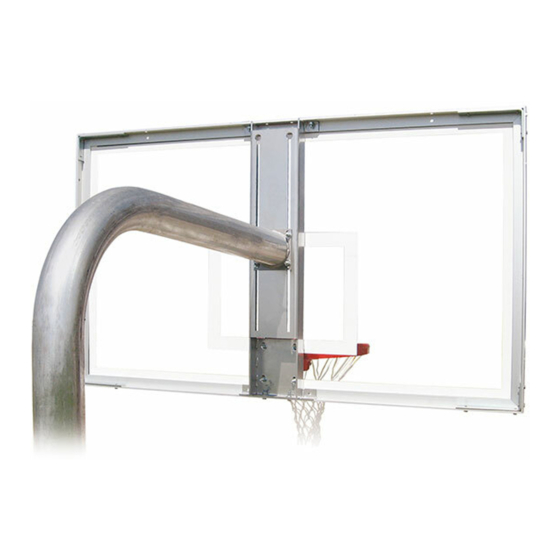

- Page 2 1. Your RetroFit36 H-Frame Backboard Support is designed to allow most First Team (36” tall) backboards to be hung on virtually any existing basketball post having a minimum 6”x6” mounting plate at the end of the post’s extension arm. 2. Unpack and lay backboard face down on flat surface.
- Page 3 7. Mount the rim to the Backboard/H-Frame assembly using the hardware supplied in the rim box. If you purchased an acrylic backboard make sure to place the second rubber gasket (included with backboard) between the face of the backboard and the backplate of the rim.
