Operating
voltage
1A to 12Vdc
12 or 24 Vdc
500mA to 24Vdc
The security lock can be electrically commanded for the controlled closing of sliding doors.
Counterlock with rollaway pin, invisible when the door is open
Fixing of the lock:
1. Find the lock position on the fixed frame
2. Make a hole in the frame that can hold the lock and a further hole for the cylinder passage
3. Make the electrical wiring
4. Fix the lock
MOUNTING INSTRUCTIONS
ARCA KEY SLIDE

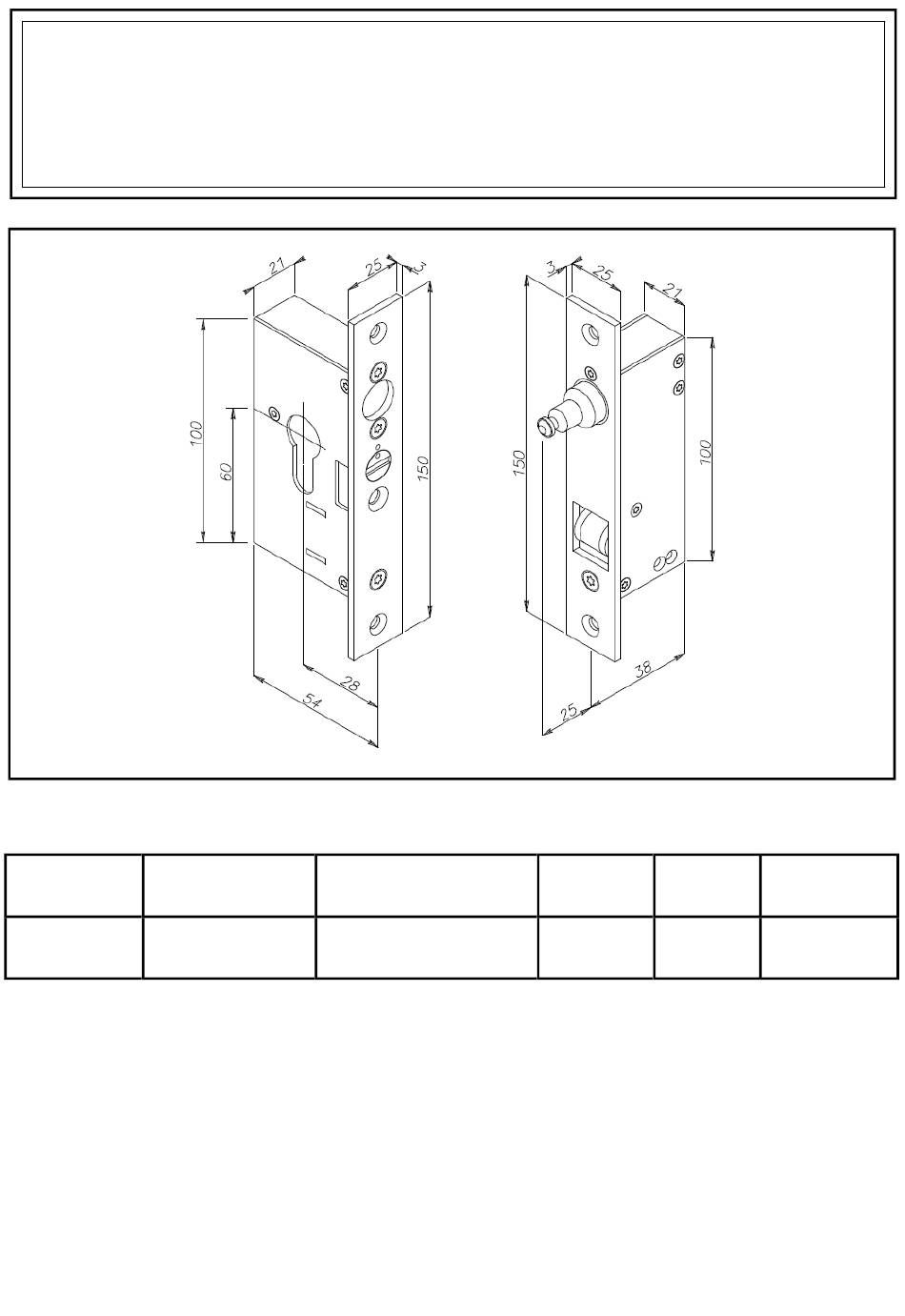

ART. 23822 – 23824 – 23822FG – 23824FG
TECHNICAL CHARACTERISTICS
Absorbed
current
breaking and entering
Resistance to
800Kg
FUNCTIONING
INSTALLATION
Release
Inserted
under load
pin signal
Max. 50N
Yes
Nr.
1303/1659
Rev. 0
17/10/13
Open
release lever
Version "FG"
only
Advertisement
Related Manuals for Opera ARCA KEY SLIDE 23822
Summary of Contents for Opera ARCA KEY SLIDE 23822
- Page 1 MOUNTING INSTRUCTIONS 1303/1659 ARCA KEY SLIDE Rev. 0 ART. 23822 – 23824 – 23822FG – 23824FG 17/10/13 TECHNICAL CHARACTERISTICS Operating Absorbed Resistance to Release Inserted Open voltage current breaking and entering under load pin signal release lever 1A to 12Vdc Version “FG”...
- Page 2 Fixing of the counterlock: 1. Hook up the counterlock to the lock and, approaching the door, find its correct position 2. Make a hole in the frame that can house the counterlock 3. Fix the counterlock Testing: Close the door and check its holding force Operate the electrical or manual release to release the door If the door does not close: Be sure that lock and counterlock are aligned...
- Page 3 USAGE INSTRUCTIONS Close the door checking its holding force Activate the electrical release and check if the door is released Attention: don't pull the door before having pushed the appropriate botton FIXED COUNTERPLATE Item CF Fixing the fixed counterplate: 1. Hook up the fixed counterplate to the lock and, approaching the door, find its correct position 2.
- Page 4 Via Portogallo 43 – 41122 Modena (MO) – Italy – Tel. +39 059 451708 – Fax +39 059 451697 Internet: www.opera-italy.com e-mail: info@opera-access.it...
