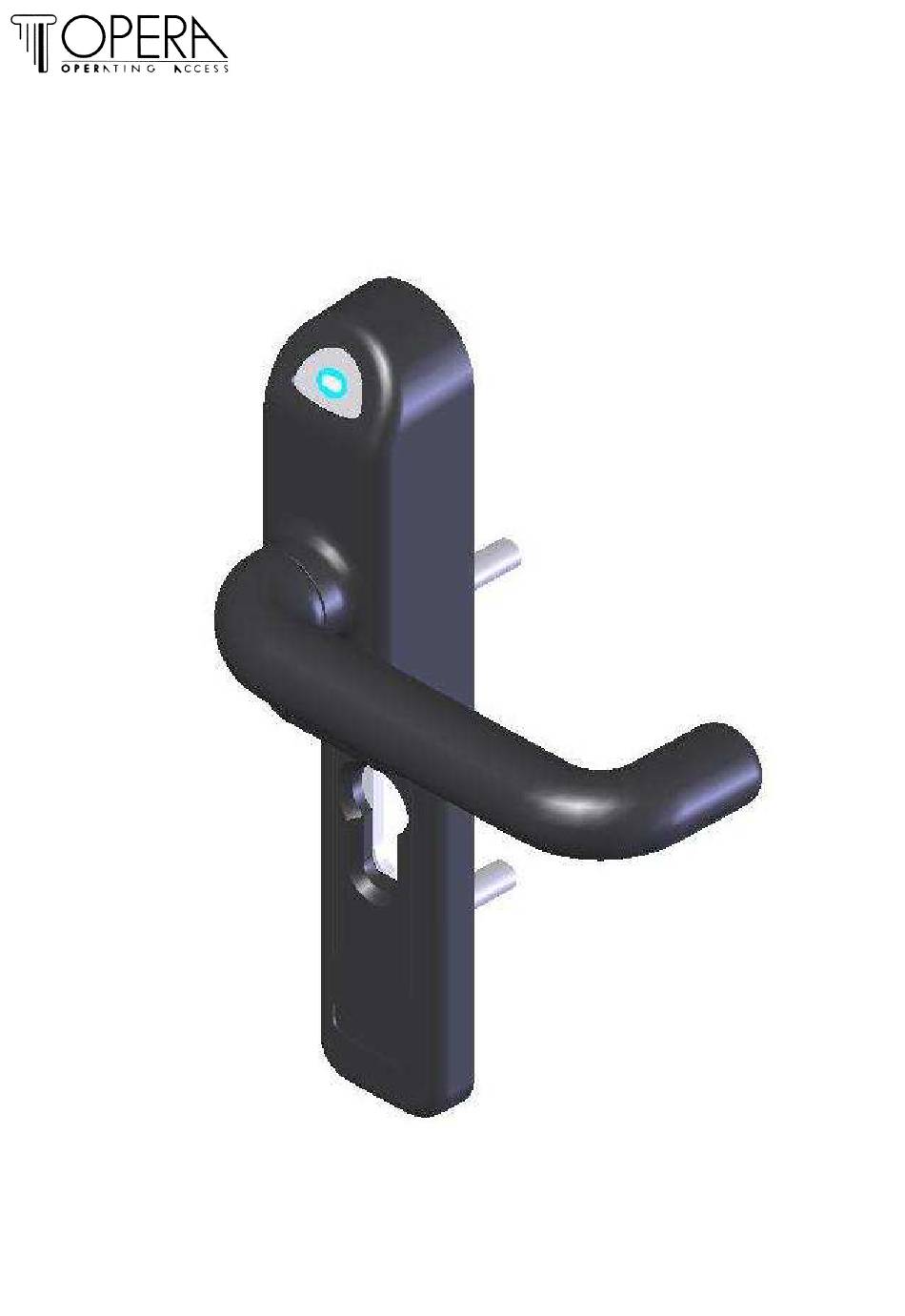

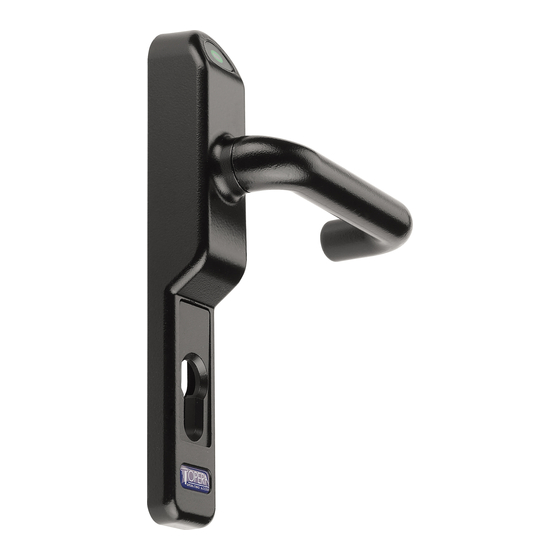

- Page 1 ELECTRIC HANDLE...
-
Page 2: Technical Specifications
(in neutral) when there is no power and the door is therefore impossible to open (art. 40800 - 40801), whereas with the second type (fail safe) the handle is enabled when there is no power and it is therefore possible to open the door (art. 40600 - 40601). - Page 3 • Select the cylinder plate that matches the lock c/c distance (72 or 92) and insert it in its seat. If half cylinders or no cylinder is used, insert the blind plate. • Fix the rear plate with the screws, being sure to position fitting bushes...
-
Page 4: Operation
OPERATION With power switched on directly (without timer) 406 Series The electric handle is disabled (in neutral) with the red LED lit. When the power is switched off the LED goes out and the handle allows the door to be opened. This state is limited to the time the power is off. -
Page 5: Enabling And Disabling The Buzzer
signals according to the selected timing. In this mode, the electric handle will remain enabled either for the set time or until it is operated. OPEN RELEASE LEVER If you want to keep the door enabled for a time decided at the user's discretion then it is necessary to fit a switch in parallel to the opening button that will keep the door enabled until it is switched off. -
Page 6: Examples Of Installation
EXAMPLES OF INSTALLATION Cross bar with square spindle to drive a mortice lock. Push bar with square spindle to drive a mortice lock. - Page 7 Handle with square spindle to drive a mortice lock. Cross bar with square spindle to drive a mortice lock.
- Page 8 Push bar with square spindle to drive a mortice lock. Handle with square spindle to drive a mortice lock.
-
Page 9: Connection Diagram
CONNECTION DIAGRAM With direct current activation art. 40600 – 40601* – 40800 - 40801* Power Supply 230 Vac WHITE (POWER) 12 / 24 Vdc GRAY (POWER) With direct current activation art. 40600 – 40601* – 40800 - 40801* Transformer 230 Vac... - Page 10 With opening contact art. 40601 Power Supply 230 Vac WHITE (POWER) 12 / 24 Vdc GRAY (POWER) RED (OPENING) GREEN (GND) DO NOT POWER BLUE (PROGRAMMING) POSITIVE POWER ORANGE (OPEN COLLECTOR) 12/24 Vdc MAX 30 mA With opening contact art. 40601 Transformer 230 Vac WHITE (POWER)
- Page 11 With opening contact art. 40801 Power Supply 230 Vac WHITE (POWER) 12 / 24 Vdc GRAY (POWER) RED (OPENING) GREEN (GND) DO NOT POWER BLUE (PROGRAMMING) POSITIVE POWER ORANGE (OPEN COLLECTOR) 12/24 Vdc MAX 30 mA With opening contact art. 40801 Transformer 230 Vac WHITE (POWER)
- Page 12 Connection diagram between electric handle and intercome Power Supply 230 Vac WHITE (POWER) 12 / 24 Vdc GRAY (POWER) RED (OPENING) GREEN (GND) BLUE (PROGRAMMING) ORANGE (OPEN COLLECTOR) COM. N.O. RELAY MODULE ART. 05258 (on demand) 12 Vac INTERCOME Internet: www.opera-italy.com e-mail: info@opera-access.it...
