Specifications
Model
Holding Force
Current Drew
Optional Bracket

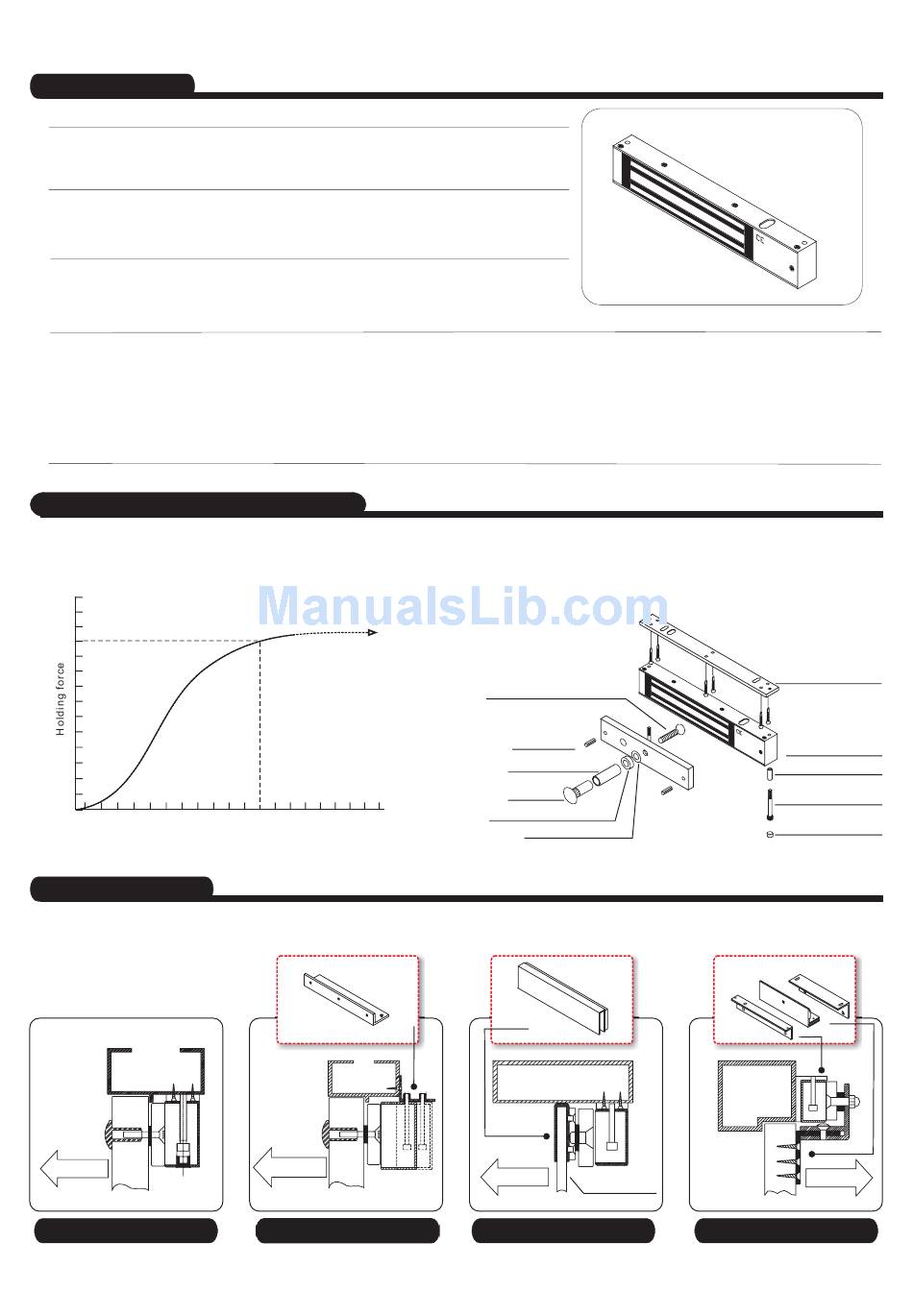

Holding Force Curve & Accessories
The holding force of the electromagnetic lock depends on the voltage of
the power supply. The graph below illustrates the change of the holding
force under different voltage. The holding forces of the electromagnetic
lock were tested by "Colinear" force.
Voltage
Optional Bracket
Identify the door swinging direction and inspect the door frame header to determine if bracket is required. A L- bracket, LZ-bracket or U-bracket(optional)
may be required for the electromagnet depending on the frame header and swinging direction.
Out-swinging
Regular Installation
All Rights Reserved.
PMUAMEM Ver. E
Publish
:2007.01.24

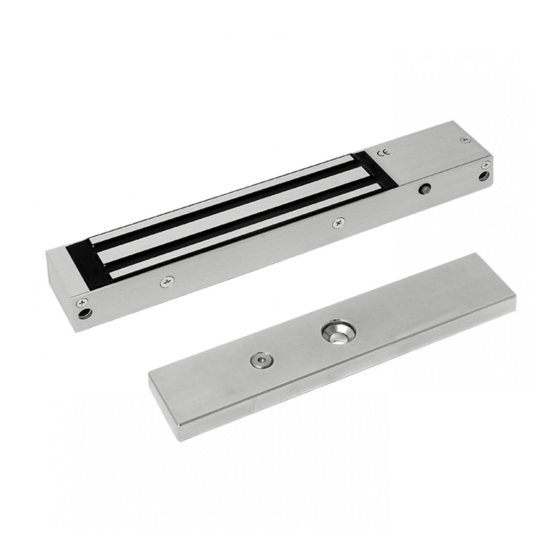

Electromagnetic Lock Installation Instruction
(Indoor Series)
13700
600 lbs(272 Kg)
500mA@12VDC
250mA@24VDC
L-300, EM-10001L bracket for narrow
door frames.
LZ-300, LZ-300N, EM-10001LZ bracket for
in-swinging doors.
(12 VDC)
" L " Bracket
Narrow frame
Out-swinging
With L-bracket for
narrow door frames
Please note that the actual accessory pack varies according to the
electromagnetic lock model.
Armature screw
Guide Pins
Door spacer
Sexnut Bolt
Rubber Washer
Washer
UBK Bracket
Frameless
Out-swinging
Glass Door
With U-bracket for frameless
glass door leaf
Mounting Plate
Electromagnet
Brass Sleeves
Armature
Plate
Fixing screw
Anti-tamper Cap
" L Z " Bracket
In-swinging
With LZ-bracket for
in-swinging door frames
4-1
Advertisement
Related Manuals for Opera 13700
Summary of Contents for Opera 13700
- Page 1 Electromagnetic Lock Installation Instruction (Indoor Series) Specifications Model 13700 Holding Force 600 lbs(272 Kg) 500mA@12VDC Current Drew 250mA@24VDC L-300, EM-10001L bracket for narrow door frames. Optional Bracket LZ-300, LZ-300N, EM-10001LZ bracket for in-swinging doors. Holding Force Curve & Accessories The holding force of the electromagnetic lock depends on the voltage of Please note that the actual accessory pack varies according to the the power supply.
- Page 2 Regular Installation Template Template Out-swinging door Fold the mounting template along Close the door, find a mounting Place the template against the door Installation Steps the dotted line to a 90-degree location on the door frame near the and frame. Drill two holes in the frame angle.
- Page 3 With LZ bracket for In-swinging doors The "X" value is 48mm which is the minimum requirement width of the door frame for Model No.13700 600 lbs electromagnet locks. In-swinging Installation Steps of LZ bracket for In-swinging doors Find a mounting location on the...
- Page 4 Important Notes Power Input Power Control Device In-swinging During the installation procedure, it Be aware that it is better to install Do not install a diode in parallel The electromagnetic locks are fail- is important to make sure that the the electromagnet lock inside the with any magnetic lock.
