Champion Power Equipment 91050 Owner's Manual

Champion Power Equipment 91050 Owner's Manual

3 in. (7.6 cm) chipper-shredder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

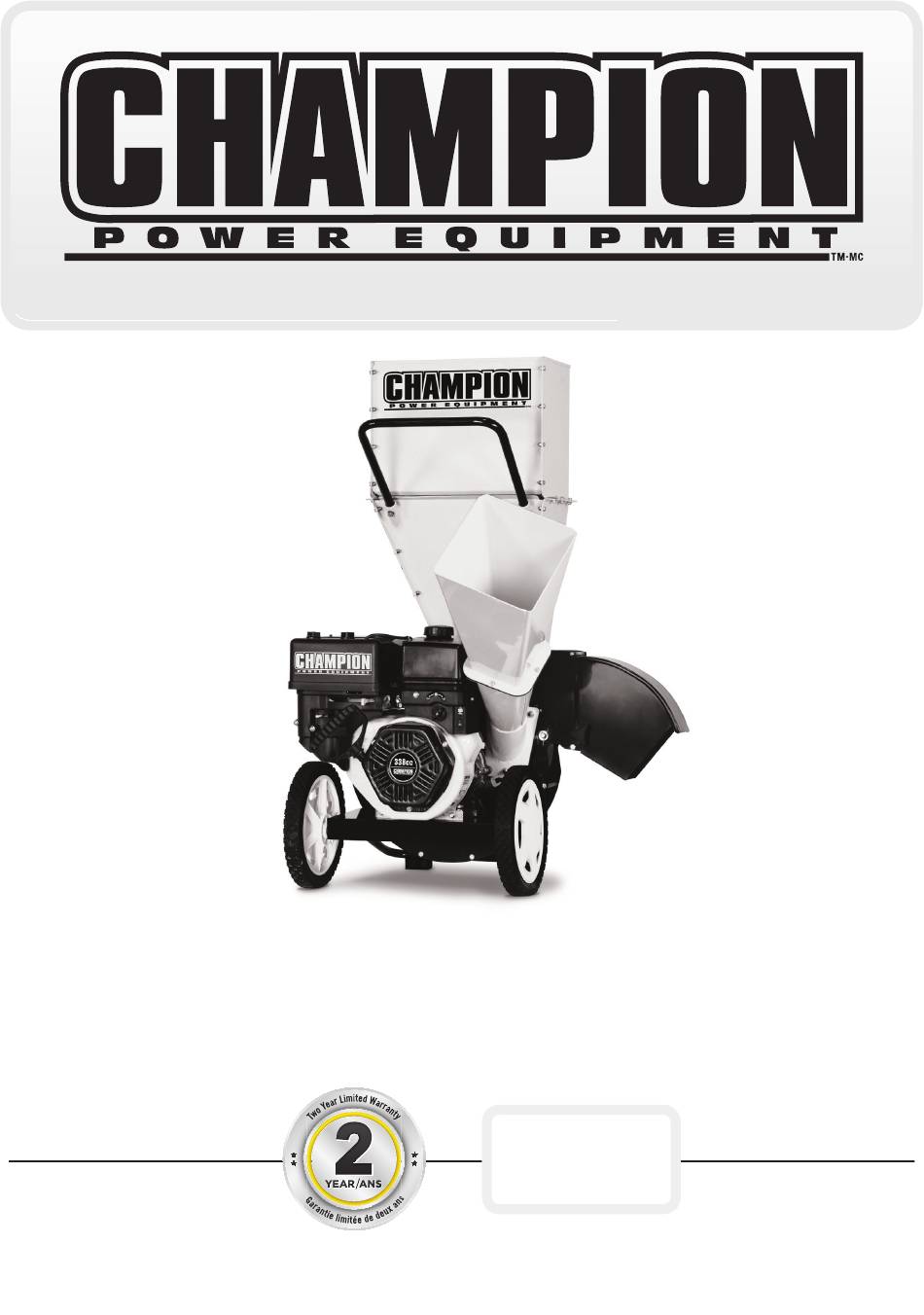

OWNER'S MANUAL
3 in. (7.6 cm)
Chipper-Shredder
MODEL NUMBER
91050
12039 Smith Ave.
SAVE THESE INSTRUCTIONS
Santa Fe Springs, CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
www.championpowerequipment.com
REV 91050-20180821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 91050 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Power Equipment 91050

Summary of Contents for Champion Power Equipment 91050

  • Page 1 OWNER’S MANUAL 3 in. (7.6 cm) Chipper-Shredder MODEL NUMBER 91050 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs, CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. www.championpowerequipment.com REV 91050-20180821...
  • Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.

  • Page 3: Table Of Contents

    91050 3 in. (7.6 cm) Chipper-Shredder TABLE OF CONTENTS Introduction ......Maintenance and Storage .

  • Page 4: Introduction

    INTRODUCTION Introduction Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.

  • Page 5: Manual Conventions

    91050 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.

  • Page 6: Safety Rules

    91050 ENGLISH SAFETY RULES DANGER Read this manual thoroughly, and understand all safety rules before operating the chipper-shredder. Become familiar with the product and know how to stop the product immediately if needed. Failure to follow safety instructions and familiarize one’s self with product operation could result in serious property damage, injury or death.
  • Page 7 91050 ENGLISH SAFETY RULES WARNING DANGER Fuel and fuel vapours are highly flammable and Projectile Hazard extremely explosive. Fire or explosion can cause severe burns or death. Pieces of debris may be ejected from the chipper- Unintentional startup can result in entanglement, shredder while operating.

  • Page 8: Training

    91050 ENGLISH SAFETY RULES Training Preparation 1. Read the Operator’s Manual completely before 1. Be thoroughly familiar with all controls and with attempting to use this chipper-shredder. proper use of the equipment. 2. Make sure the spark plug wire is disconnected until 2.

  • Page 9: Operation

    91050 ENGLISH SAFETY RULES Operation Maintenance and Storage 1. Before starting this chipper-shredder, review all 1. Always shut off the power source and disconnect safety rules. Failure to follow these rules may result the spark plug wire and ground the engine, while in serious injury to the operator or bystanders.

  • Page 10: Controls And Features

    91050 ENGLISH CONTROLS AND FEATURES Read this owner’s manual before operating your chipper-shredder. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Chipper-shredder (1) Throttle (7) Wheels – 12 in. (30.5 cm) never flat.

  • Page 11: Parts Included

    91050 ENGLISH CONTROLS AND FEATURES Parts Included Your 91050 gasoline powered chipper-shredder ships with the following parts: – Collection Bag - 2 Bushel (70 L) Capacity ..– Oil Funnel ......

  • Page 12: Assembly

    91050 ENGLISH ASSEMBLY Your chipper-shredder requires some assembly. This unit Install the Handle Cont’d. ships from our factory without oil. It must be properly serviced with fuel and oil before operation. If you have any questions regarding the assembly of your chipper-shredder, call our help line at 1-877-338-0999.

  • Page 13: Install The Chute Deflector

    91050 ENGLISH ASSEMBLY 4) Install the Chute Deflector Collection Bag Cont’d. 1. Align the chute deflector (#57) and the hinge NOTE spacers (#58) up with the hinge mounting holes on the flailing housing. (A) Always inspect the collection bag prior to use. Do not use a frayed, worn, or damaged collection bag.

  • Page 14: Add Engine Oil

    91050 ENGLISH ASSEMBLY Add Engine Oil Add Engine Oil Cont’d. CAUTION CAUTION DO NOT attempt to crank or start the engine before The engine is equipped with a low oil shut-off and it has been properly filled with the recommended will stop when the oil level in the crankcase falls type and amount of oil.

  • Page 15: Add Engine Fuel

    91050 ENGLISH ASSEMBLY Add Engine Fuel Add Engine Fuel Cont’d. 1. Use clean, fresh, regular unleaded fuel with a NOTE minimum octane rating of 85 and an ethanol Our engines work well with 10% or less ethanol content of less than 10% by volume.

  • Page 16: Operation

    91050 ENGLISH OPERATION Chipper-Shredder Location Work Area Never operate the chipper-shredder indoors or inside Always operate the chipper-shredder outdoors in a large, any confined spaces, enclosures or buildings; including open area on solid ground that will allow for good footing garages, basements, and sheds.

  • Page 17: Before Each Use Inspect The Chipper-Shredder

    91050 ENGLISH OPERATION Before Each Use Inspect the Chipper-Shredder Starting the Engine Cont’d. 1. Make sure the spark plug wire has been disconnected 7. Pull the starter cord slowly until resistance is felt and and engine has been grounded. then pull rapidly. SEE NOTE BELOW.

  • Page 18: Chipper-Shredder Operation

    91050 ENGLISH OPERATION Chipper-Shredder Operation Chipper-Shredder Operation Cont’d. DANGER DANGER If the impeller or blades strike a foreign object, This machine has rotating blades and parts capable stop engine immediately. Do not continue use until of amputating body parts. This machine can also chutes and unit have been thoroughly inspected.

  • Page 19: Chipping And Shredding Tips

    91050 ENGLISH OPERATION Chipping and Shredding Tips Chipping and Shredding Tips Cont’d. Chipping NOTE 1. Make sure wood is less than 3 in. (7.6 cm) in After all material has been processed it is diameter. recommended that the unit run for short period to 2.

  • Page 20: Emptying The Collection Bag

    “ON,” and To alleviate high altitude issues other than the natural restart the engine. power loss, Champion Power Equipment can provide a high altitude carburetor main jet. The alternative main NOTE jet and installation instructions can be obtained by contacting Customer Support.

  • Page 21: Maintenance And Storage

    91050 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. DANGER Always disconnect the spark plug wire during times of inactivity, cleaning and maintenance. This will prevent any accidental start up that may cause damage or injury.

  • Page 22: Air Filter

    91050 ENGLISH MAINTENANCE AND STORAGE Air Filter Flail Housing and Impeller Cleaning 1. Unscrew wing nut to remove the air filter cover. 1. Make sure spark plug wire is disconnected. 2. Remove the supporter and foam element. 2. Disconnect the recoil housing on the front of the 3.

  • Page 23: Blade Sharpening

    91050 ENGLISH MAINTENANCE AND STORAGE Blade Sharpening Blade Sharpening Cont’d. Sharpening of the shredder blade, flail blades 6. Once the 7/16 screw, lock washer, and washer are and chipper blades are required maintenance to removed, the impeller (#29) can be removed from be performed by a professional service center or the cam shaft of the engine.

  • Page 24: Maintenance Schedule

    6. Clean the engine according to the maintenance section. *To be performed by knowledgeable, experienced owners or 7. Change the oil. Champion Power Equipment certified dealers. 8. Remove the spark plug and pour about 1⁄2 ounce (14.8 mL) of oil into the cylinder. Crank the engine Storage slowly to distribute the oil and lubricate the cylinder.

  • Page 25: Specifications

    ..... . 338 cc Your Champion Power Equipment product is designed – Type ..... . .

  • Page 26: Parts Diagram

    91050 ENGLISH SPECIFICATIONS Parts Diagram...

  • Page 27: Parts List

    91050 ENGLISH Part number Description Part number Description SMJ-25 Wheel Cap SMJ-03-02 Chipper Blade GB/T 91-2000 GB/T 889.1- Cotter Pin Ø3.2×20 Lock Nut M8 (Ø3.2×20) 2000(M8) GB/T 95-2000 (Ø12) Washer Ø12 SMJ-03-04 Shredder Blade SMJ-10 12 in. Wheel SMJ-24 Washer GB/T 95-2000 (Ø10)

  • Page 28: Engine Parts Diagram

    91050 ENGLISH SPECIFICATIONS Engine Parts Diagram...

  • Page 29: Engine Parts List

    91050 ENGLISH Engine Parts List Part Number Description Part Number Description 45.040001.00 Retainer, Intake Valve Spring, Up 23.061006.01 Recoil Handle, Big 45.040007.00 Retainer, Exhaust Valve Spring, Up 1.5789.0608 Flange Bolt M6 x 8 45.040008.00 Rotator, Exhaust Valve 46.061100.00.2 Recoil Starter Cover, Black 46.040004.00...

  • Page 30: Troubleshooting

    91050 ENGLISH TROUBLESHOOTING Problem Cause Solution Engine will not start No fuel Add fuel Faulty spark plug Replace spark plug Unit loaded during startup Remove load from unit Engine starts but runs roughly Low oil level Fill crankcase to the proper level Place chipper-shredder on a flat, level...
  • Page 31 Please register within ten (10) days Limits of Implied Warranty and Consequential Damage from date of purchase. Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental Repair/Replacement Warranty or consequential claim by anyone from using this product.
  • Page 32 United States Environment Protection Agency (U.S. EPA) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2018 small off-road engine (SORE) and engine powered equipment.
  • Page 33 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 34 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
