OWNER'S OPERATION AND INSTALLATION MANUAL
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
WARNING: This appliance is equipped for natural and
propane gas. Field conversion is not permitted other than
between natural or propane gases.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm CST,
Monday through Friday or email contact@factorybuysdirect.com

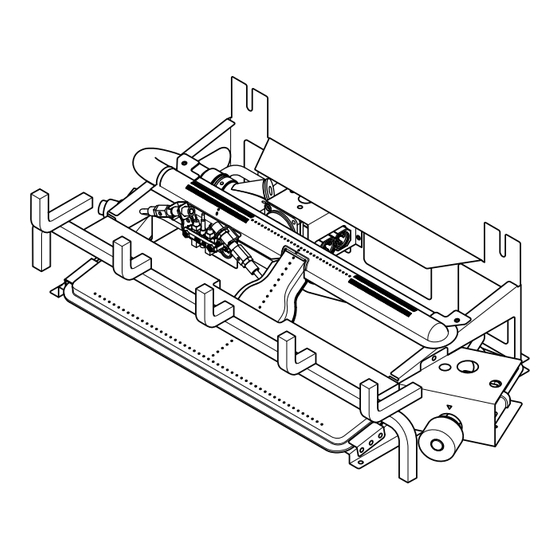

VENT-FREE GAS
LOG CHASSIS
DUAL FUEL THERMOSTAT
MODEL
FDLT24/30-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duluth Forge FDLT30-1
Summary of Contents for Duluth Forge FDLT30-1
- Page 1 VENT-FREE GAS LOG CHASSIS OWNER’S OPERATION AND INSTALLATION MANUAL DUAL FUEL THERMOSTAT MODEL FDLT24/30-1 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. —...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Operation ..........19 Specifications ..........5 Inspecting Burners........21 Product Features ........5 Care And Maintenance ......22 Product Identification ......... 5 Troubleshooting ........23 Qualified Installing Agency ......6 Replacement Parts ........27 Local Codes.......... -
Page 3: Safety
SAFETY DANGER: Carbon monoxide WARNING: Do not attempt to poisoning may lead to death! access or change the setting of the fuel selection means. CARBON MONOXIDE POISONING: Early Access to and adjustment of signs of carbon monoxide poisoning resemble the fuel selection means must the flu, with headaches, dizziness or nausea. - Page 4 SAFETY 7. Before using furniture polish, wax, carpet WARNING: Do not place cloth- cleaner, or similar products, turn heater off. ing or other flammable material If heated, the vapors from these products on or near the appliance. Never may create a white powder residue within burner box or on adjacent walls or furniture.
-
Page 5: Specifications
SPECIFICATIONS Model FDLT24/30-1 Ignition Electronic Piezo Ignitor Gas Type Natural Gas Propane Gas Maximum Input Rating 33,000 Btu/Hr 33,000 Btu/Hr Minimum Input Rating 25,000 Btu/Hr 20,000 Btu/Hr Manifold Pressure 4" W.C. 9" W.C. Inlet Gas Pressure* (inches Max. 9.5" Max. 14" of water) (*for purposes of Min. -
Page 6: Qualified Installing Agency
LOCAL CODES Install and use heater with care. Follow all State of Massachusetts: The installation local codes. In the absence of local codes, must be made by a licensed plumber or use the latest edition of The National Fuel gas fitter in the Commonwealth of Mas- Gas Code, ANSI Z223.1/NFPA 54*. -
Page 7: Air For Combustion And Ventilation
AIR FOR COMBUSTION AND VENTILATION WARNING: This heater shall WARNING: This heater shall not be installed in a room or not be installed in a confined space space unless the required vol- or unusually tight construction ume of indoor combustion air unless provisions are provided is provided by the method de- for adequate combustion and... - Page 8 AIR FOR COMBUSTION AND VENTILATION VENTILATION AIR Ventilation Air From Inside Building Ventilation Air From Outdoors Provide extra fresh air by using ventilation This fresh air would come from an adjoining grills or ducts. You must provide two perma- unconfined space. When ventilating to an nent openings: one within 12"...
-
Page 9: Installation
INSTALLATION NOTICE: This heater is intended WARNING: Never install the for use as supplemental heat. heater Use this heater along with your • in a bedroom or bathroom primary heating system. Do not • in a recreational vehicle install this heater as your pri- •... - Page 10 INSTALLATION IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form too much moisture. See Air for Combustion and Ventilation, pages 7 and 8. Before beginning assembly or operation of the product, make sure all parts are present.
- Page 11 INSTALLATION If Using Mantel at least 8" up. If noncombustible material is less than 12", you must install the fireplace You must have noncombustible material(s) hood accessory. Even if noncombustible above the fireplace opening. Noncombustible material is more than 12", you may need the materials (such as slate, marble, tile, etc.) hood accessory to deflect heat away from must be at least 1/2"...
- Page 12 INSTALLATION FLOOR CLEARANCES A. If installing appliance on the floor level, B. If combustible materials are less than 14" you must maintain the minimum distance to the fireplace, you must install appliance of 14" to combustibles (see Figure 8). at least 5" above the combustible flooring (see Figure 9).
- Page 13 INSTALLATION GAS SELECTION Insert Gas Fitting Insert Gas Fitting This appliance is factory for Propane Gas for Natural Gas preset for propane gas. No changes are required for connecting to propane. Only a qualified installer or service techni- cian can perform gas selection and connecting to gas supply.
- Page 14 INSTALLATION FOR NATURAL GAS INSTALLATION: YELLOW 1. Remove the metal cap installed over the NG regulator inlet. Metal 2. Install metal cap over propane regulator inlet. This will keep debris out of regulator. Metal Cap Use only the metal cap. DO NOT use an off the shelf 3/8"...
- Page 15 INSTALLATION CONNECTING TO GAS SUPPLY WARNING: A qualified ser- CAUTION: For natural gas, vice technician must connect check your gas line pressure heater to gas supply. Follow all before connecting heater to gas local codes. line. Gas line pressure must be no greater than 9.5"...
- Page 16 INSTALLATION Typical Inlet Pipe Diameters Install sediment trap in supply line as shown Use 3/8" black iron pipe or greater. Installa- in Figure 13. Place sediment trap where it is tion must include an equipment shutoff valve, within reach for cleaning. Place sediment trap union, and plugged 1/8"...
- Page 17 INSTALLATION CHECKING GAS CONNECTIONS WARNING: Never use an open WARNING: Test all gas piping flame to check for a leak. Apply and connections, internal and a noncorrosive leak detection external to unit, for leaks after fluid to all joints. If bubbles form, installing or servicing.
- Page 18 INSTALLATION PRESSURE TESTING HEATER GAS CONNECTIONS 1. Open equipment shutoff valve (see Figure 17, page 17). Apply a noncorrosive leak 15, page 17). detection fluid to all joints. Bubbles form- ing show a leak. 2. Open main gas valve located on or near gas meter for natural gas or open propane 5.
-
Page 19: Operation
OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING not use any phone in your building. WARNING: If you do not fol- • Immediately call your gas supplier low these instructions exactly, a from a neighbor’s phone. Follow the fire or explosion may result caus- gas supplier’s instructions. - Page 20 OPERATION 8. Turn control knob counterclockwise CAUTION: Do not try to ad- to the desired heating level. The main just heating levels by using the burner should light. Set control knob to equipment shutoff valve. any heat level between 1 (LO) and 5 (HI). Note: Please wait one minute after shut- ting off heater to allow the control valve WARNING: If input gas...
-
Page 21: Inspecting Burners
INSPECTING BURNERS IMPORTANT: Owner’s should check pilot flame pattern and burner flame pattern often. Incorrect flame patterns indicate the need for cleaning (see Care and Maintenance, page 22) or service. WARNING: Only a qualified service person should service and repair heater. This includes maintenance requiring replacement or alteration of components. -
Page 22: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian. -
Page 23: Troubleshooting
CARE AND MAINTENANCE ODS/PILOT Ignitor Use a vacuum cleaner, pressurized air, or a Natural Gas Thermocouple Electrode small, soft bristled brush to clean. Burner Propane A yellow tip on the pilot flame indicates dust Gas Burner and dirt in the pilot assembly. There is a small pilot air inlet hole about 2"... - Page 24 TROUBLESHOOTING Problem Possible Cause Corrective Action Using natural gas and I n l e t p r e s s u r e e x c e e d s Bypass pressure switch. See pilot will not light. 9.5" WC. instructions below.
- Page 25 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
- Page 26 TROUBLESHOOTING Problem Possible Cause Corrective Action Heater produces un- 1. Heater is burning vapors from 1. Open a window to ventilate wanted odors. paint, hair spray, glues, etc. room. Stop using odor caus- See IMPORTANT statement, ing products while heater is page 25.
-
Page 27: Replacement Parts
REPLACEMENT PARTS Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. • Model and serial number of your heater If they can’t supply original replacement •... -
Page 28: Parts
PARTS MODEL FDLT24/30-1 This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 27 of this manual. ITEM PART # DESCRIPTION 161338-01 Ignitor PARTS AVAILABLE - NOT SHOWN 18UDC1013B-01 Hardware Package GLEMB25 Embers WZL039-01... -
Page 29: Accessories
ACCESSORIES To purchase these heating accessories please visit our website www.factorybuysdirect.com or give us a call at 1-855-607-6557. EQUIPMENT SHUTOFF VALVE For all models. Equipment shutoff valve with 1/2" NPT tap. INSTALLATION KIT Existing Gas Line Flexible Connector Shutoff Valve Flare &... - Page 30 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ www.factorybuysdirect.com 200376-01B...
- Page 31 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ www.factorybuysdirect.com 200376-01B...
-
Page 32: Warranty
WARRANTY KEEP THIS WARRANTY Model _______________________________ Serial No. ____________________________ Date Purchased _______________________ Keep receipt for warranty verification. REGISTER YOUR PRODUCT AT WWW.FACTORYBUYSDIRECT.COM FACTORY BUYS DIRECT LIMITED WARRANTIES New Products Standard Warranty: Factory Buys Direct warrants this new product and any parts thereof to be free from defects in material and workmanship for a period of one (1) year from the date of first purchase from an authorized dealer provided the product has been installed, maintained and operated in accordance with Factory Buys Direct’s warnings and instructions.
