VENT-FREE GAS LOGS
INSTALLATION INSTRUCTIONS
MODELS
FVFLC18-1 & FVFLC18-2
For Use With FDLR18-1 Chassis

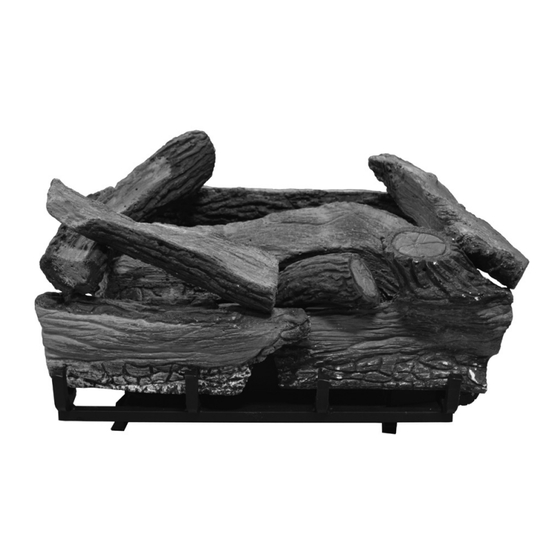

FVFLC18-1 Shown
PFS
®
US
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm EST,
Monday through Friday or email info@factorybuysdirect.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FVFLC18-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Duluth Forge FVFLC18-1

  • Page 1 VENT-FREE GAS LOGS INSTALLATION INSTRUCTIONS MODELS FVFLC18-1 & FVFLC18-2 For Use With FDLR18-1 Chassis FVFLC18-1 Shown ® Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm EST, Monday through Friday or email info@factorybuysdirect.com...
  • Page 2 TABLE OF CONTENTS Safety ............3 Local Codes..........4 Qualified Installing Agency ......4 Installation Guidelines ....... 5 Installing Logs..........6 Parts ............7 Warranty ............ 8 SAVE THIS BOOK INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. This log set has been tested and approved to ANSI Z21.11.2 standard for Unvented Heaters and also com- plies with ANSI Z21.60 Decorative Vented Appliances for...
  • Page 3 INSTALLATION GUIDELINES Proper Log Placement Candles Log placement is critical to proper burner Avoid the use of scented or decorative can- performance. Logs must be correctly posi- dles while the log set is in operation. Candles tioned onto the burner. The illustrations in this produce a residue in the air that creates a soot manual show the proper pinned position for like substance.
  • Page 4 INSTALLING LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. CAUTION: After installation and periodically thereafter, check to ensure that no yellow flame comes in contact with any log.
  • Page 5 INSTALLING LOGS MODEL FVFLC18-1 1. Insert log #1 into slots in rear log bracket. 4. Place log #5 onto logs #1 and #3. 2. Insert log #2 into slots in middle log 5. Place log #6 onto logs #1 and #4.
  • Page 6 INSTALLING LOGS MODEL FVFLC18-2 1. Insert log #1 into slots in rear log bracket. 5. Place log #5 on over the right side of logs #1, #2 and #3. 2. Insert log #2 into slots in middle log bracket. 6. Place log #6 onto logs #2 and #4 as shown below.
  • Page 7 PARTS MODELS FVFLC18-1 AND FVFLC18-2 ITEM FVFLC18-1 FVFLC18-2 DESCRIPTION FVFLC18-1-1 FVFLC18-2-1 Log 1 FVFLC18-1-2 FVFLC18-2-2 Log 2 FVFLC18-1-3 FVFLC18-2-3 Log 3 FVFLC18-1-4 FVFLC18-2-4 Log 4 FVFLC18-1-5 FVFLC18-2-5 Log 5 FVFLC18-1-6 FVFLC18-2-6 Log 6 FVFLC18-1-7 FVFLC18-2-7 Log 7 FVFLC18-1-8 Log 8 This list contains replaceable parts used in your heater.
  • Page 8 Factory Buys Direct 500 Brown Industrial Parkway Canton, GA 30114 1-855-607-6557 200235-01 Rev. A 05/15...
