VENT - FREE GAS LOGS
INSTALLATION INSTRUCTIONS
MODELS
FVFLC18 - 1 & FVFLC18 - 2
LOG CLUSTER
For Use With FDLR18-1, FLT18-1,
FLM18-1-NG, and FLM18-1-LP Chassis

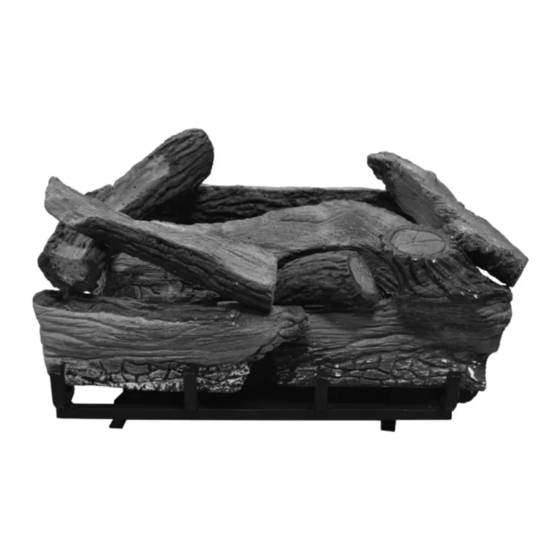

FVFLC18-1 Shown
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm CST,
Monday through Friday or email contact@factorybuysdirect.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Duluth Forge FVFLC18-1
Summary of Contents for Duluth Forge FVFLC18-1
- Page 1 LOG CLUSTER For Use With FDLR18-1, FLT18-1, FLM18-1-NG, and FLM18-1-LP Chassis FVFLC18-1 Shown Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm CST, Monday through Friday or email contact@factorybuysdirect.com...
- Page 2 TABLE OF CONTENTS Safety ............2 Local Codes..........2 Qualified Installing Agency ......3 Installation Guidelines ....... 5 Installing Logs..........4 Parts ............7 SAVE THIS BOOK INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. This log set has been tested and approved to ANSI Z21.11.2 standard for Unvented Heaters and also com- plies with ANSI Z21.60 Decorative Vented Appliances for...
- Page 3 INSTALLATION GUIDELINES Qualified Installation Agency Candles Avoid the use of scented or decorative can- This set should only be installed by a qualified dles while the log set is in operation. Candles installation agency. produce a residue in the air that creates a soot Proper Log Placement like substance.
- Page 4 INSTALLING LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. CAUTION: After installation and periodically thereafter, check to ensure that no yellow flame comes in contact with any log.
- Page 5 INSTALLING LOGS 3. Place log #3 into the area between the 5. Place log #5 into notches in logs #1 and front log bracket and grate fingers. #3 at the right as shown. 4. Place log #4 into notches in logs #1 and 6.
- Page 6 INSTALLING LOGS MODEL FVFLC18 - 2 1. Insert log #1 onto shelf at rear of grate. 5. Place log #5 on over the right side of logs The features at bottom will locate log. #1, #2 and #3. Make sure it is placed into the notches 2.
- Page 7 PARTS MODELS FVFLC18 - 1 AND FVFLC18 - 2 ITEM FVFLC18-1 FVFLC18-2 DESCRIPTION FVFLC18-1-1 FVFLC18-2-1 Log 1 FVFLC18-1-2 FVFLC18-2-2 Log 2 FVFLC18-1-3 FVFLC18-2-3 Log 3 FVFLC18-1-4 FVFLC18-2-4 Log 4 FVFLC18-1-5 FVFLC18-2-5 Log 5 FVFLC18-1-6 FVFLC18-2-6 Log 6 FVFLC18-2-7 Log 7 This list contains replaceable parts used in your heater.
- Page 8 Factory Buys Direct.com 2701 Industrial Drive Bowling Green, KY 42101 1-855-607-6557 200235-01 Rev. C 02/22...
