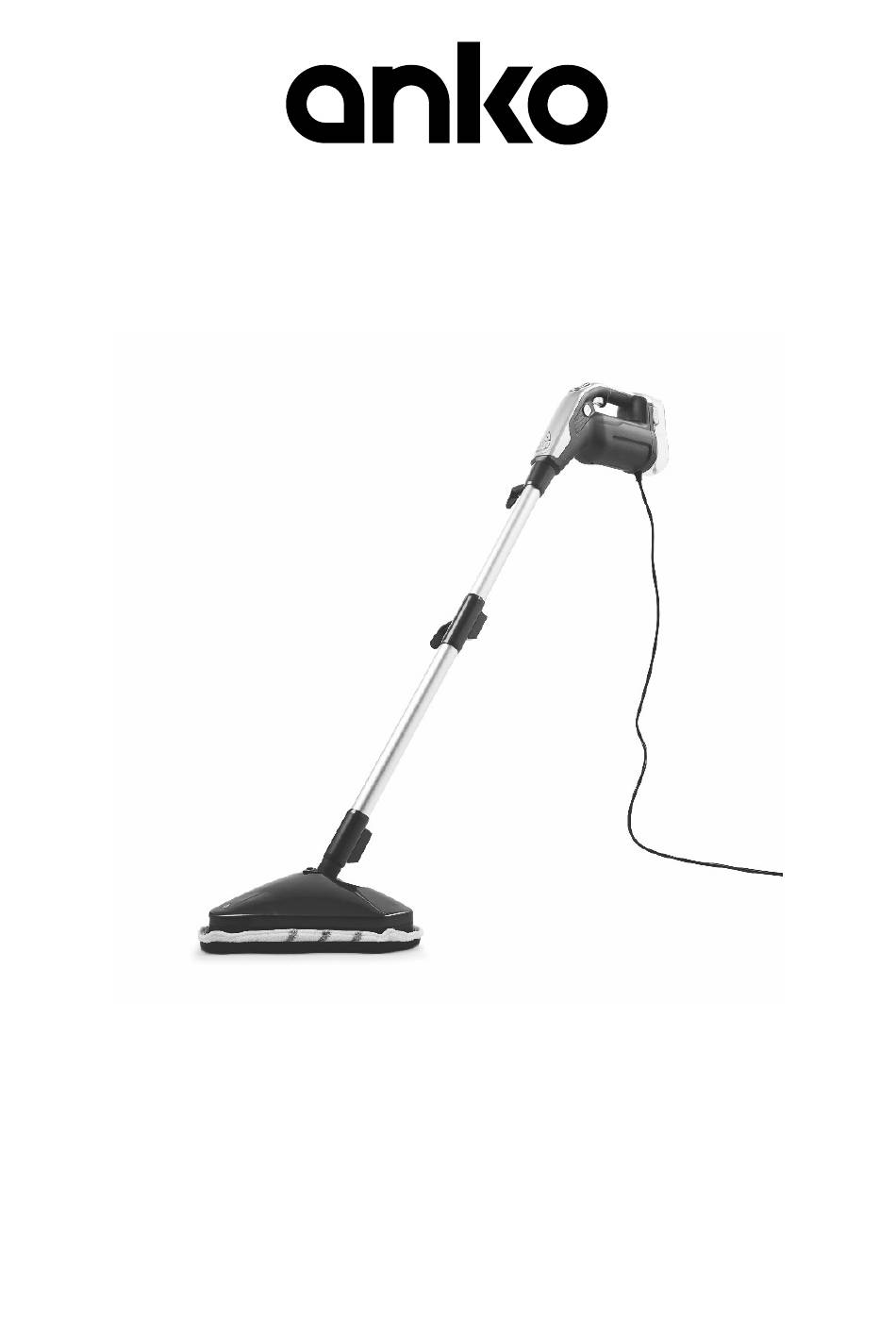

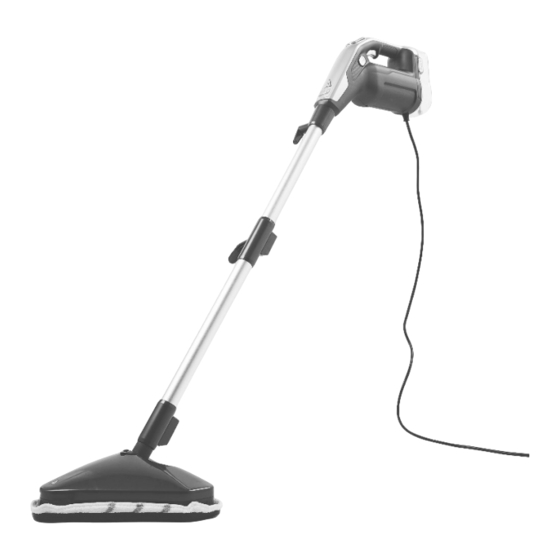

2 in 1 Floor and Hand Steamer
Model No.: JC-229
Rev 1
READ AND SAVE THESE INSTRUCTIONS
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us.
User Manual
Advertisement
Table of Contents
Related Manuals for anko JC-229
Summary of Contents for anko JC-229
- Page 1 2 in 1 Floor and Hand Steamer User Manual Model No.: JC-229 Rev 1 READ AND SAVE THESE INSTRUCTIONS Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
- Page 2 Page 2 of 24...
-
Page 3: Table Of Contents
Warnings ......................4 Safety Direction ....................4 Recommended Floor Surfaces ................5 Transporting your Steam Mop / Hand Steamer ..........6 Components ......................6 Tools ........................7 Tool Suggested Uses ..................8 Assembly – As a Steam Mop ................8 Attaching the Floor Head ................. -
Page 4: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Recommended Floor Surfaces
Disconnect the plug from the wall socket and let cool before changing the micro fibre cleaning pad. This appliance must be earthed. The use of an Earth Leakage Safety Switch is highly recommended. If unsure, consult an electrician. DO NOT use without the microfibre cleaning pad fitted. DO NOT store or use the appliance near or in high temperature areas. -
Page 6: Transporting Your Steam Mop / Hand Steamer
DO NOT add any other agents into the water tank, such as rust removers, odour counter-reacting agents, alcohol, cleaners, solvents, detergents, etc. as this may cause serious injury to the user and may damage the appliance and floor surface. Transporting your Steam Mop / Hand Steamer To move your Steam Mop / Hand Steamer from room to room, unplug the unit and carry using the handle. -
Page 7: Tools
Tools Large Scrub Brush Scraper Tool Small Scrub Brush Angle Nozzle Extension Spigot Steamer Cloth – Use on Window Squeegee Grout Cleaning Tool Window Squeegee Page 7 of 24... -
Page 8: Tool Suggested Uses
Tool Suggested Uses Item Description Suggested Usages Used for gently cleaning Ovens, stove tops, bathtubs, Large Scrub Brush taps, tiles, grout, toys, etc Used for gently cleaning Ovens, stove tops, bathtubs, Small Scrub Brush taps, tiles, grout, toys, etc This must be fitted to the Hand Steamer for attaching the Extension Spigot tools. - Page 9 To do this, grasp the Extension Tube, insert the end small end of one tube into the • end of the other extension tube as shown below, and push in hard, all the way, until it locks in place. • Next, the assembled Extension Tubes need to be assembled into the Steam Unit.
-
Page 10: Attaching The Floor Head
WARNING: The steam head attachments are extremely HOT during and after use. Wait for the product to cool down before touching and removing components. • To remove the Extension Tube assembly, press the large button on the top of the Steam Unit and at the same time, pull the Extension Tubes straight out. -
Page 11: Micro Fibre Pad
10 Micro Fibre Pad To fit the Micro Fibre Pad, place the Micro Fibre Pad on the floor with the plain face • facing up. Lift the steam mop up and position centrally over the Micro Fibre Pad and then lower •... - Page 12 Pull the plug out and fill the water tank to the very top using the supplied water • beaker, then refit the plug ensuring it is firmly secured. The Water tank can now be refitted to the Hand Steamer Unit by aligning with the •...
-
Page 13: Steam Rate
The display will illuminate Red colour indicating the unit is • heating, and the indicator light above the word “High” will illuminate. Note: the default setting is “High” Steam rate. After approximately 20 – 30 seconds, depending on the water •... -
Page 14: Using On Carpets
• Press once and the Steam Rate will change to “Medium” rate. Press again and the Steam Rate will change to “Low” rate. • Press again and the Steam Rate will cycle back around to “High” rate. • and so on. 13 Using on carpets This appliance is supplied with a Carpet Slider which allows you to use the Steam Mop on carpets. -
Page 15: Operation - As A Hand Steamer
14 Operation – As a Hand Steamer With the Hand Steamer Unit switched off and unplugged, remove the Floor Head • and extension tubes from the Hand Steamer Unit as shown previously. Fill the water tank as described earlier under the section “Operation – As a Steam •... - Page 16 Then rotate the tool clockwise to lock onto the tabs. • • To remove the tool, rotate the tool anticlockwise and firmly pull it straight off. Note: This method is the same for all the small tools. • With the required tool fitted and locked in place, ensure the power cord is fully unwound, then insert the plug into the power point and switch on.
-
Page 17: Steam Rate
• After approximately 20 – 30 seconds, depending on the water temperature, the display will change to a Blue colour indicating the unit is ready to use. Note: A small amount of water may initially be ejected from the base when heating starts. -
Page 18: Window Squeegee
16 Window Squeegee The Window Squeegee can be used in two different ways. To use to clean windows or shower screens etc., fit the Window Squeegee to the “Tool Spigot” as described previously. Switch on and when the steam starts, start to move the Window Squeegee up and down the glass surface. -
Page 19: User Maintenance
17 User Maintenance WARNING: The appliance must be switched off and the plug must be removed from the power point before any maintenance, cleaning or replacement of the Microfibre Pad or Tools etc. NOTE: To maximise the performance of your steam mop / hand steamer, you should clean the Microfiber Pad regularly. -
Page 20: Cleaning The Steam Mop / Hand Steamer / Tools
Let the mop produce steam until the vinegar/water solution is used up. • • Repeat the above procedure as many times as necessary until a normal steam flow rate is achieved. After cleaning, the water tank and pipes etc. need flushing out with clean water. •... -
Page 21: Wall Mount Storage
To quickly release the power cord, the top hook can be rotated to allow the power • cord to slip off as shown below. Rotate the hook back before winding the cord back on. If storing away as a Handheld Steamer without the extension tubes fitted, loosely •... -
Page 22: Troubleshooting
1000mm 23 Troubleshooting Power Not Switched On. Switch On at power point and on the side of the Steamer Unit No Power to Power Point Check your circuit breakers. The water has not heated up. Allow approximately 20 – 30 No Steam. -
Page 23: Warranty Against Defect
24 Warranty Against Defect 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 24 Page 24 of 24...
