If you get stuck, give customer service a call at 1-855-816-6868
You can also reach us at contact@stanleymounts.com

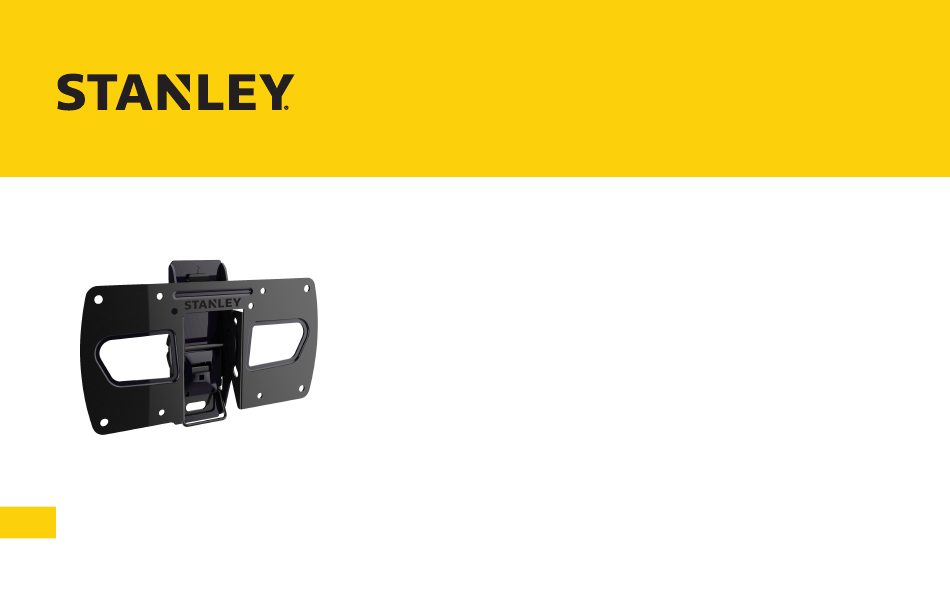

TV Mount Installation Guide
Thank you for choosing Stanley – the hardware of choice
for Architects, Contractors, and Home Owners for its quality,
performance and dependability.
Enclosed are your step-by-step instructions for an install made
easy.
Model: TMR-EC3103T
www.stanleymounts.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stanley TMR-EC3103T
Summary of Contents for Stanley TMR-EC3103T
- Page 1 Model: TMR-EC3103T TV Mount Installation Guide Thank you for choosing Stanley – the hardware of choice for Architects, Contractors, and Home Owners for its quality, performance and dependability. Enclosed are your step-by-step instructions for an install made easy. If you get stuck, give customer service a call at 1-855-816-6868 You can also reach us at contact@stanleymounts.com...
-
Page 2: Getting Started
Caution: Please read the entire manual before proceeding View warranty and disclaimer on page 14 Getting Started Before we start, let’s make sure we have the correct mount along with all the required tools and hardware to complete the installation. The TV must be a Flat Panel TV between 13”-39”... -
Page 3: Parts & Hardware
Caution: This product contains small items that could be a choking hazard if swallowed. Parts & Hardware Caution: Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts or previously used parts! D1 x4 D2 x4... - Page 4 Select TV Screws TV bracket. Flat Back Hand thread screws into the threaded inserts on the back your TV to determine which Flat Back: Screw diameter to use. Mount the spacers A5 above the TV bracket. TV bracket. Determine wheter your TV has a at back or an irregular Irregular back Insert Hole...
- Page 5 Step 1:Assemble TV Bracket Determine if you are necessary to assemble the bracket VESA Pattern VESA Pattern extenders. (mm) (mm) 75x75 200x200 100x100 100x200 Assemble TV bracket extenders to TV bracket. Fasten the screws D1 and Nuts D2. Only use TV Bracket if the hole patterns of your TV is 75x75 or 100x100 or 100x 200.
- Page 6 Step 2: Attach TV Bracket Position your TV bracket over your TV hole pattern, making sure the brackets are vertically centered and VESA Pattern VESA Pattern level. (mm) (mm) Install TV bracket with the screw 75x75 200x200 100x100 and washer or spacer you selected 100x200 for your TV.
- Page 7 Step 3A: Install Wall Plate on Drywall with Wood Stud Note: For Concrete skip to Step 3B Use the stud nder to locate Min. 1 1/2” the stud, and then draw (38mm) a vertical line on the center of the stud. Min.
- Page 8 Remove the wall plate and drill the pilot holes with a 3/16” drill bit Align the wall plate with the pilot holes and insert 2 bolts through the washer in the pilot holes and tighten. Finalize level of wall plate before tightening.
- Page 9 Step 3B: Install Wall Plate On Solid Concrete or Concrete Block Wall Level the wall plate and make 2 marks with pencil to show where to drill the pilot holes. Remove the wall plate and drill the pilot holes with a 3/8” drill bit.
- Page 10 Insert the anchors into the 4 pilot holes. Tap with hammer Align wall plate with pilot holes and anchors. Insert 4 bolts through washers and anchors then tighten with wrench. Finalize level of wall plate before tighening. Tools Required: Hammer Wrench...
- Page 11 Step 4: Hang Your TV Warning: TV should always be lifted by 2 people. Hang the TV by hooking the TV bracket over the top lip of the wall plate. After the TV is hanging properly on the wall plate , press on the bottom of the TV to the wall plate until you hear an audible “snap”...
- Page 12 Adjustment: Tilt Loosen the knob on the TV bracket to adjust the tilt of your TV. 2 Tighten the knob when you achieve the perfect angle of view.
-
Page 13: Removing The Tv
Removing the TV Warning: TV should always be lifted by 2 people. Disconnect all cables from the TV. Pull the release hook down to unlock the TV from the wall plate. Pull the buttom of the TV from the wall enough to lift the TV up and off of wall palte. - Page 14 SUNCRAFT SOLUTIONS INC. LIMITED WARRANTY SUNCRAFT SOLUTIONS INC. LIMITED WARRANTY SUNCRAFT SOLUTIONS, INC. warrants its products to be free of defects in material and for a particular purpose and warranties of merchantability. SUNCRAFT SOLUTIONS, INC. will not workmanship for the product’s Warranty Period. The Warranty Period commences on the original be liable for any damages whatsoever arising out of the use or inability to use its products, even if purchase date of the product and the sales receipt serves as proof of purchase.
-
Page 15: General Disclaimer
GENERAL DISCLAIMER General Disclaimer Disclaimer – Suncraft Solutions Inc. has extended every effort to ensure the accuracy and is damaged or missing. In the event that replacement parts or hardware are needed, please contact completeness of this manual. However, Suncraft Solutions Inc. does not claim that the information Customer Service at 1-855-816-6868 or service@suncraftsolutions.com .
