Vision TC-HDMIIP/3 Product Manual page 3

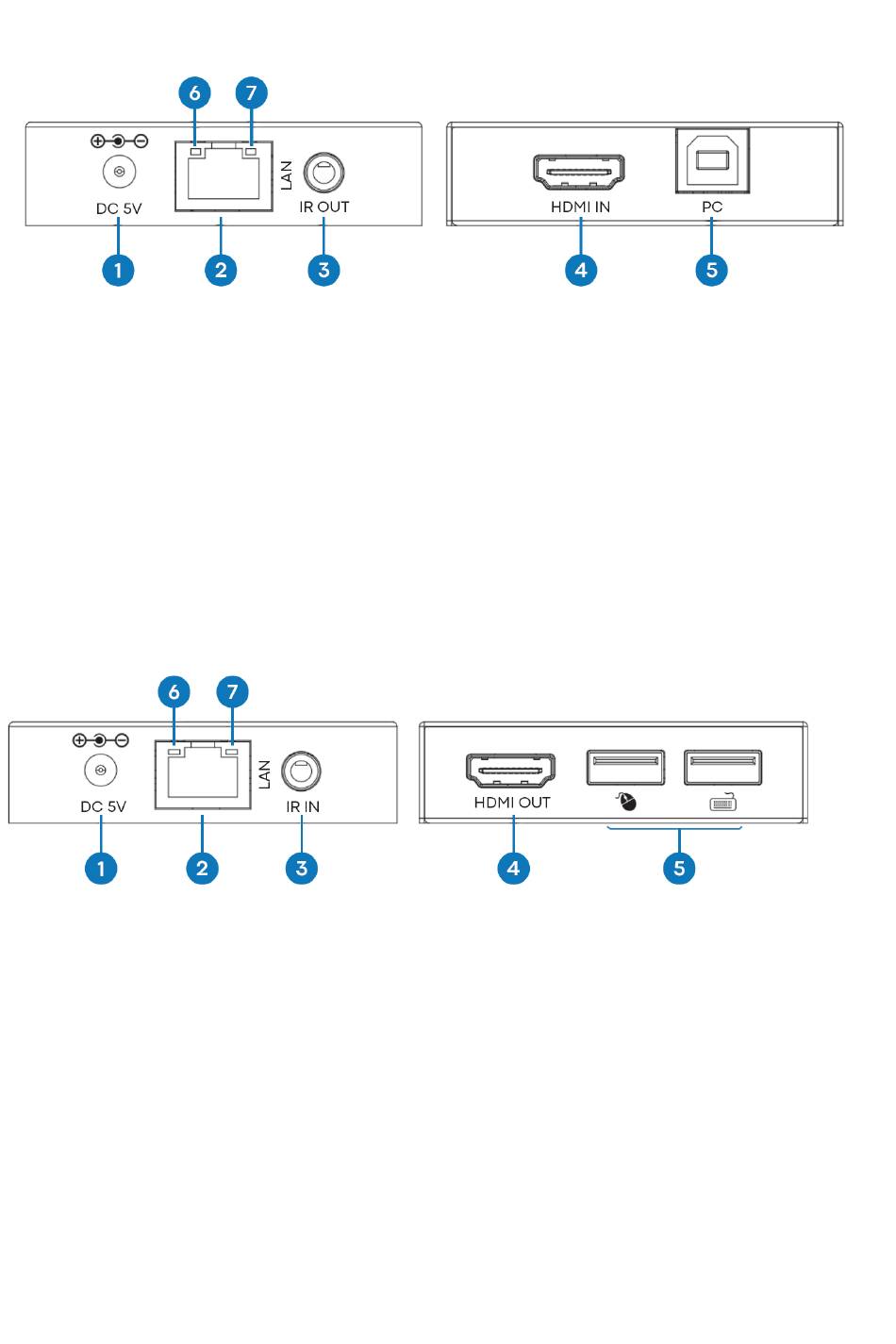

TRANSMITTER
1. Power Input 5V/1A
2. RJ45 Output – CAT6 cable up to 150 metres (492ft) long
3. IR blaster 3.5mm Minijack – supports most infrared signals from 20-60 KHz. Tip: IR signal,
Ring: power, Sleeve: ground
4. HDMI Input
5. USB-B – connects to computer
6. Link LED (orange) – will flash when correctly connected. If not lit check ethernet cable.
7. Power indicator (green)
RECEIVER
1. Power Input 5V/1A
2. RJ45 input
3. IR receiver 3.5mm Minijack socket - supports most infrared signals from 20-60 kHz. Tip: IR
signal, Ring: power, Sleeve: ground
4. HDMI Out
5. 2 x USB-A ports – connect USB 1.1 devices here e.g. mouse, keyboard NOTE: this will not
support USB 2.0 devices
6. Link LED (orange) – will flash when correctly connected. If not lit check ethernet cable.
7. Power indicator (green)
3
