REPLACING AIR FILTER (H)

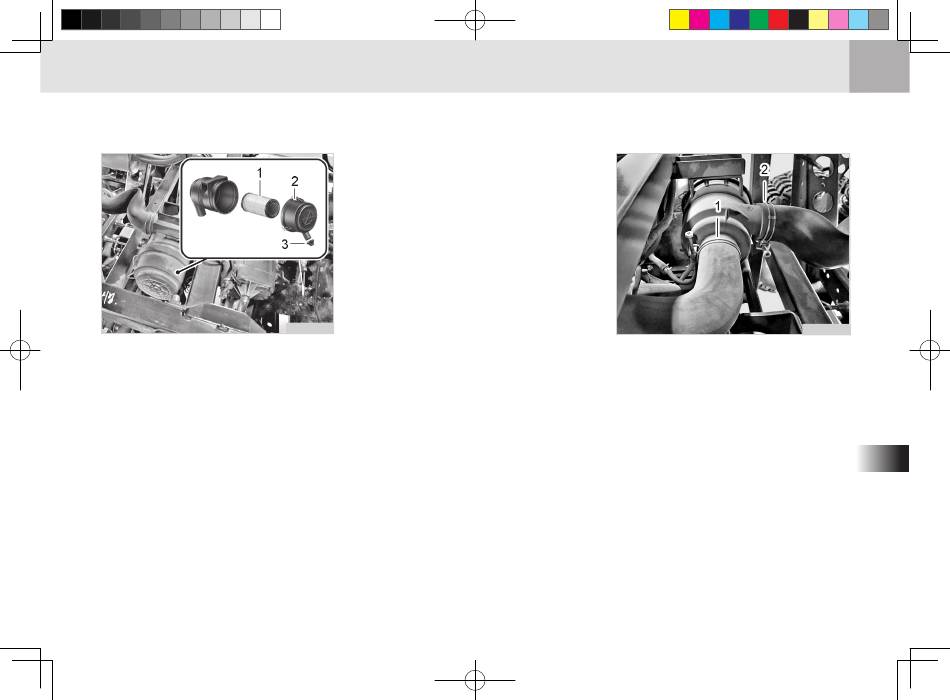

(1) Filter (2) Cap
(3) Evacuator Valve
1. Park the vehicle on level ground and
apply the parking brake firmly.
2. Stop the engine and raise the cargo
bed.
3. Open the cover of the air filter can-
ister to replace the filter.
4. Make sure to fit the filter to the center
of the canister.
5. Install the canister cover after check-
ing that the anti-dust valve is facing
downward without any gap.
UD210(K9 2400SW(C,F), 2400(D)C, 2400F)-수출(통합)-OM-07.indd 15 UD210(K9 2400SW(C,F), 2400(D)C, 2400F)-수출(통합)-OM-07.indd 15

CHECKING AIR HOSE AND CLAMP(I)

If there is a tiny gap caused by a loose
connecting clamp on the air hose, air
without passing through the air filter
could enter the system for a long
period of time, resulting in shortening
the service life of the engine. Carry
out the check according to the service
intervals in this manual as follows.
U24O709A
MAINTENANCE
(1) Clamp 1 (2) Clamp 2
1. Park the vehicle on level ground and
apply the parking brake firmly.
2. Stop the engine, remove the seat
cushion and raise the cargo bed.
(In case the hydraulic dumping kit is
installed, raise the car go bed before
stopping the engine.)
3. Check if the clamps (1 and 2) are
loose. If so, tighten them.
4. Check if there is tiny cracks or flaws
on the rubber hose and replace it if
necessary.
