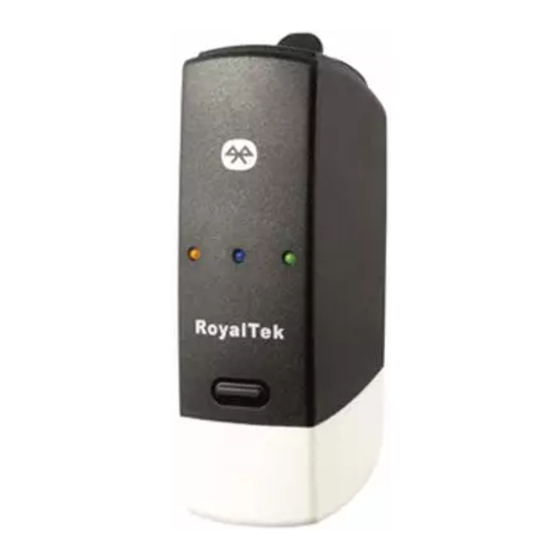

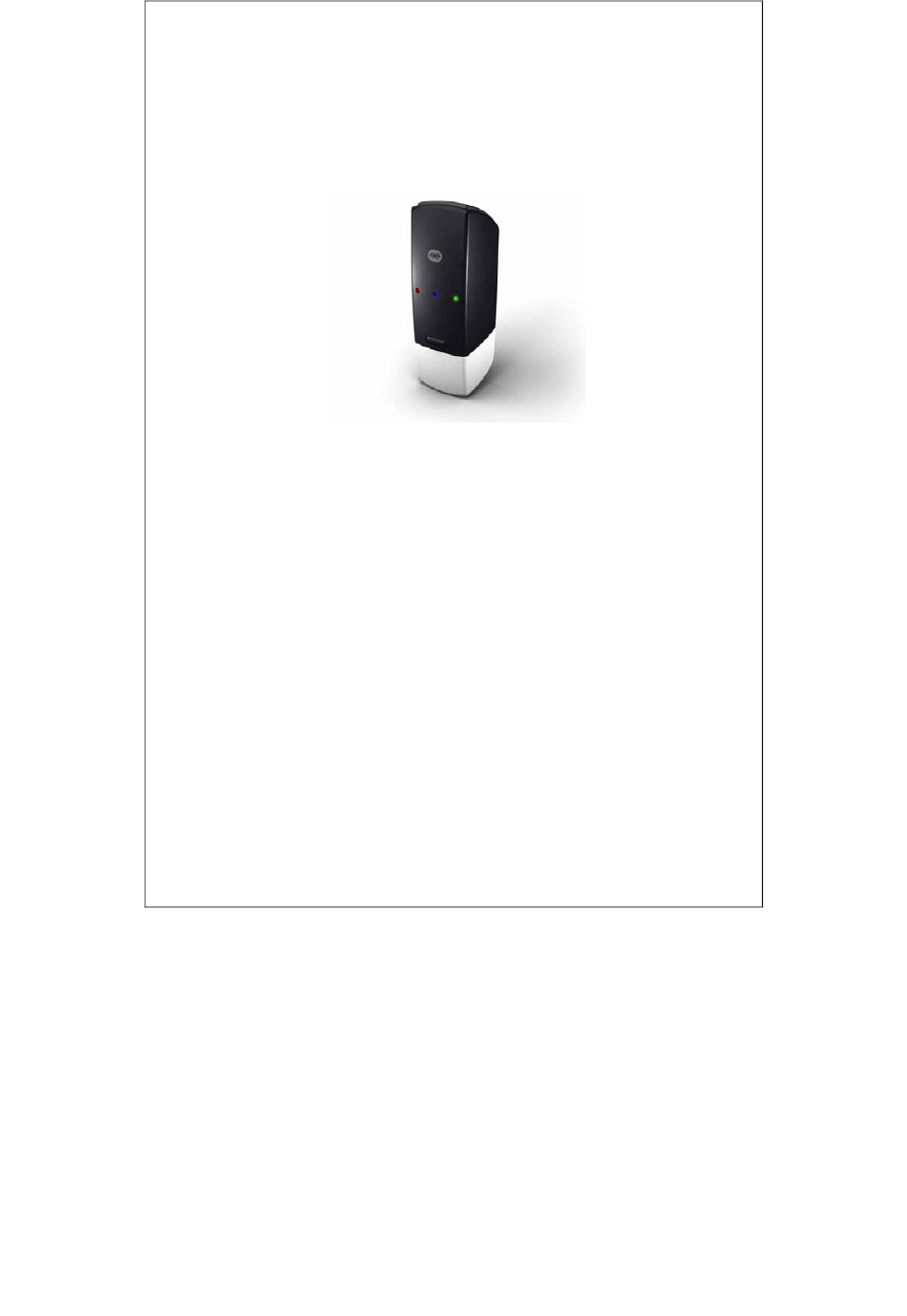

BT GPS Receiver
Congratulations on your purchase of the MBT-1000. With the latest in GPS
technology, MBT-1000 will enhance your overall navigation experience.
The MBT-1000 is equipped with the latest generation MTK digital processor
specially designed for fast and accurate fix on GPS signals. This latest round
of technology advancements give the users an "instant on" feel, and the
experience in navigation becomes more natural.
Before starting using the device , please refer to the following for content
checking.
Contents packaged with your MBT-1000 purchase:
1.
BT GPS Receiver
2.
Car adaptor
3.
USB cable for charge
4.
AC adaptor (optional)
English
MBT-1000
Quick Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBT-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RoyalTek MBT-1000

Summary of Contents for RoyalTek MBT-1000

  • Page 1 MBT-1000 BT GPS Receiver Quick Guide Congratulations on your purchase of the MBT-1000. With the latest in GPS technology, MBT-1000 will enhance your overall navigation experience. The MBT-1000 is equipped with the latest generation MTK digital processor specially designed for fast and accurate fix on GPS signals. This latest round of technology advancements give the users an “instant on”...
  • Page 2 Power Button Right View Power On/Off button LED Display Front View Blinking Yellow LED indicates Battery Low Glowing Orange LED indicates power is in charging Glowing Blue LED indicates Bluetooth is connected Blinking Blue LED indicates Bluetooth is not fixed Glowing Green LED indicates position is fixed Blinking Green LED indicates position not fixed English...
  • Page 3 To make MBT-1000 work with your devices, a simple pairing step is required for the first time. (Please follow the pairing instruction for Blue Tooth from your PDA or PC manufacturer.) To get MBT-1000 into pairing mode, all you need to do is simply switch on the power button.
  • Page 4 GPS performance. For the most accurate position fix results and quickest acquisition time, please make sure that your MBT-1000 is not in motion but stationary and in open spaces. The high sensitivity and minimalist design make MBT-1000 an ideal candidate for personal navigator.
  • Page 5 RoyalTek Bluetooth GPS Datalog Receiver MBT-1100 User Manual V1.0 Published on July, 2007 by RoyalTek Company Ltd. Design and specification are subject to change without notice.

  • Page 6: Table Of Contents

    Content 1. Product Introduction ............... 3 1.1 Overview......................3 1.2 Main Features....................3 1.3 Product Notification..................3 1.4 Application.......................3 2. Before Start................4 2.1 Check the Package Content ................4 2.2 Power Button (Right View)................4 2.3 LED Display ....................5 2.4 Hardware Features ...................5 2.4.1. Power Button ..................5 2.4.2.

  • Page 7: Product Introduction

    1. Product Introduction 1.1 Overview The MBT-1100 is equipped with the latest GPS solution for fast and accurate fix on GPS signals. This latest round of technology advancements give the users an “instant on” feel, and the experience in navigation becomes more natural. The dimension of 69.5(L) x 23(W) x 20(H) and weight only 38g, making it an ideal solution to carry everywhere.

  • Page 8: Before Start

    2. Before Start 2.1 Check the Package Content Before you start using MBT-1100, please check out if your package includes the following items. If any item is damaged or missed, please contact your reseller at once. ● MBT-1100 Bluetooth GPS datalog receiver ●...

  • Page 9: Led Display

    2.3 LED Display Yellow LED indicates power is in charging Blinking Amber LED indicates Battery Low Glowing Blue LED indicates Bluetooth is connected Blinking Blue LED indicates Bluetooth is not fixed Glowing Green LED indicates position is fixed Blinking Green LED indicates position not fixed Glowing RED LED indicates Memory Full Erased memory data, RED LED Blinking 2.4 Hardware Features...

  • Page 10: Memory Status Led (Red)

    2.4.4. Memory Status LED (Red) Glowing – Memory is full. RED LED blinking when erasing memory data. 2.4.5. Battery Status LED (Amber/Yellow) None - Battery has adequate power supply. Amber - Power is low. Charging immediately is required. Yellow - Connected to power charger, charging. LED off - Battery is fully charged.

  • Page 11: How To Use Car Charger To Charge Your Handheld Device

    up the parameters of the device via Bluetooth radio. 2.6 How to use Car Charger to charge your handheld device Connect car charger into your adapter connector of MBT-1100. Plug adapter connector into handheld device connector and plug car charger into cigar-lighter.
  • Page 13 Revision History Data Revision Note Jan, 2008 V1.0 Final Release Contact information Headquarters 1071 Chung Cheng RD., Suite 9F-1 Tao Yuan City, Taiwan. Tel: 886-3-356-9666 FAX: 886-3-358-0050 Http://www.royaltek.com Sales: Http://www.royaltek.com/contact FAE: fae@royaltek.com...
