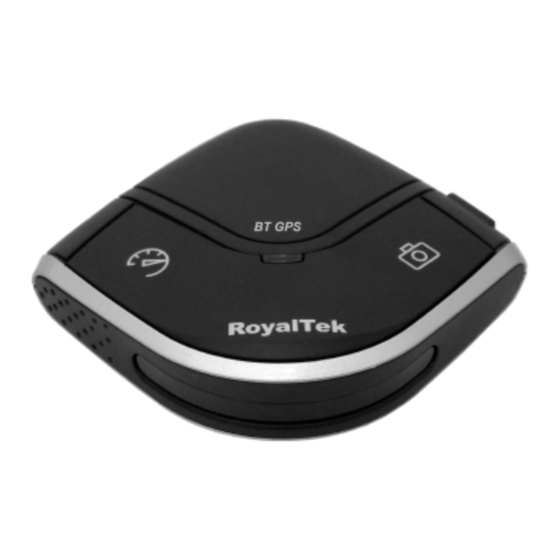

- Page 1 RoyalTek BT GPS Speed Camera Warning Device RCD-1100 Offline version Users Manual English...
-
Page 2: Table Of Contents
3.1 Start to use “Speed Camera Detector Utility”...8 3.2 POI Management Procedure ... 11 3.3 SCDB and POI import setting...15 3.4 Datalog download and device configure Function ...19 3.5 Get and Set RCD-1100 Data Log Status...19 3.6 SCDB Setting...21 3.7 Utility Revision information ...22 English... -
Page 3: Product Introduction
Please note that the database on the device will have been downloaded at the time of production so modified. may not be 100% accurate at the time of purchase. To ensure that your RCD-1100 works affectively we recommend that you download it as soon as possible after purchase. -
Page 4: Install Rcd-1100 In Your Vehicle
Now connect the USB cable to the cigar lighter adapter provided and insert the other end to socket (A). Plug the adapter into the vehicle’s cigar lighter. RCD-1100 powers on once you turn your ignition key and the green and red LEDs will sweep backwards and forwards with one beep tells you that the unit is functioning correctly. - Page 5 Once RCD-1100 is properly set up and connected to your PDA or PC, please refer to your navigation software guidebook for instruction on navigation operation. RCD-1100 works with all NMEA enabled navigation software. English...
-
Page 6: Specification
2.1 Specification GPS Chipset - Sirf star III Frequency - L1, 1,575.42 MHz Channel - 20 parallel - 1,023 MHz C/A Code Chipset TTFF - Reacquisition: less than 1s - Hot start: less than 1s (Open SKY,typical) - Warm start: less than 35s - Cold start: less than 35s Accuracy - Position: within 10m for 90%... -
Page 7: Hardware Overview
2.2 Hardware Overview (1) The POI record Button: Press for more than 2 seconds to record current position. A short beep sound and blinking LED will inform you that the POI has been successfully store. Note: The user must use the software to carry out the POI management. Note: The POI Record Button function will be enabled after GPS is fixed and the Speed Camera database was successful pre-uploaded into memory. -
Page 8: Software Installation And Usage
“Hardware” tab and then the “Device Manager” button. Expand the “Ports (COM & LPT)” item, and the “Prolific USB-to-Serial Comm Port” is the COM port of your RCD-1100. The user should connect the device first. (Connect device with PC via USB Cable) Please select comm. - Page 9 shown. (2) If user wants to upload SCDB data, please be sure to pre download datalog data in advance. (3) Datalog data will be deleted after upload SCDB process is done. Figure2 and Figure3 show when you press the button “Connect”, the utility notifies the user that the device will enter the operation mode, all functions of the device are disabled.
- Page 10 Figure3 Figure 4 is shown System will download the POI points from device automatically. POI data will be erased from device after POI load process done. Figure 4 If the figure 5 dialog is shown, it means there is no POI data in the device. English...
-
Page 11: Poi Management Procedure
3.2 POI Management Procedure When proceed the POI Management, system will auto create the POI folder for POI data download. Note:POI data are stored in the PC side and named POI.csv and stored in the subdirectory /POI/. User can load POI data, delete POI data or Save POI data by using the Utility. Note: ◆Load POI: User can edit the POI points by click the button ”Load POIs”. - Page 12 please refer to Figure 6. Figure 7 shows the Load POI process done. Figure 8 shows the Delete POIs process. English Figure 6 Figure 7...
- Page 13 3.2.1 POI Management and shown on Map To display the POIs on Google Map, the Internet connection is needed. Move the mouse cursor to the required “Latitude” or “Longitude“ point column then press the mouse right key, the message “Go to Google Map” showed as Figure 9 English Figure 8 Figure 9...
- Page 14 3.2.2 POI data modification User can modify the speed, latitude, and longitude and add comments. 1) Modification of the latitude and longitude: When user clicks the “Go to Google Map” pop up menu, user can modify latitude and longitude, the utility will show as Figure 10. User can drag the mark After the modification is complete, please press the button “OK”...
-
Page 15: Scdb And Poi Import Setting
3.3 SCDB and POI import setting ◆SCDB Setting : There is one type Camera database data. Fixed Speed Camera database data User can download the Speed Camera database from his computer (local file). For the Speed camera database file format, please reference the example: File name: *.csv Latitude, Longitude, direction, vmax, Type 46.55886,2.2,35.40,2... - Page 16 3.3.1 Download SCDB data from Local file Currently, users can upload DB data combinations are as follows: 1) Only SCDB 2) SCDB + POI 4.3.1.1 Download SCDB data from Local file If user wants to download SCDB data from user computer (local file), please check the” Download Speed Cameras from Local file.”...
- Page 17 Press the button “Go to Connection Page” and the AP will go to the “connection” page. System will show the notification message. Shows as Figure 13 and 14 Figure 15 shows that the upload proceed. English Figure12 Figure13 Figure14...
- Page 18 Note: (1) Saved POIs: User press the POI button, then the device will record a POI point, This POI point is called Saved POI. (2) If user want to use the RCD-1100 device in another PC, please copy the original PC’s POI data (stored in the subfolder /POI/ POI.csv) to the new PC.
-
Page 19: Datalog Download And Device Configure Function
Figure 18 shows: select Folder or set a new folder for saving NMEAData. Figure 19 Show: Change page to “Data Log Download” menu bar and the AP will go to the page “Data Log Download”. 3.5 Get and Set RCD-1100 Data Log Status User can review the RCD-1100 default setting configuration. English... - Page 20 1sec ~ 60secs, user adjustable ◆Data Type (user adjustable) There are 3 options for user to choose these data items to be saved in the RCD-1100. 1: UTC Time, Longitude, Latitude, will be saved. 2: UTC Time, Longitude, Latitude, Altitude, will be saved.
-
Page 21: Scdb Setting
LED to see if the flash is full. ◆Set Log Config. When user finished the configuration setup, press the “Set Log Config.” button to save the setting to the receiver. ◆Memory Erase User can erase all the log data from the device. 3.6 SCDB Setting Change to “SCDB Setting”... -
Page 22: Utility Revision Information
3.7 Utility Revision information Change to “About” menu bar User can get the RoyalTek SCDB Utility version. English Figure21 Figure22...
