Page 1: Bluetooth Gps

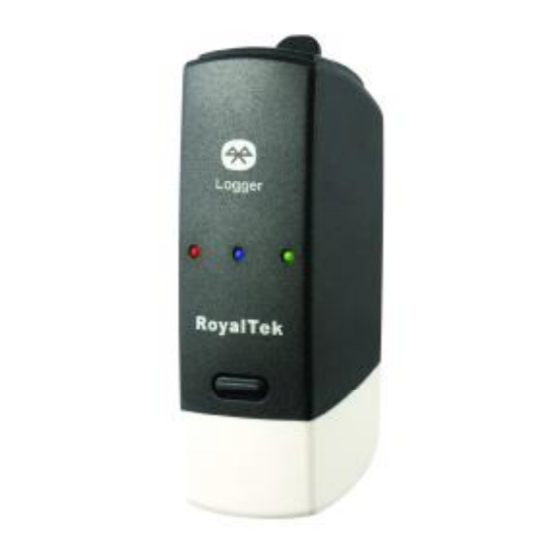

RoyalTek Bluetooth GPS Datalog Receiver MBT-1100 User Manual V1.0 Published on March 2008 by RoyalTek Company Ltd. (Design and specifications are subject to change without notice.) PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com... -
Page 2: Table Of Contents
1. Product Introduction ...3 1.1 Overview...3 1.2 Main Features ...3 1.3 Product Notification...3 1.4 Application...3 1.5 Specification ...4 2. Before Start ...6 2.1 Check the Package Content ...6 2.2 Power Button (Right View) ...6 2.3 LED Display...7 2.4 Hardware Features ...7 2.4.1. -
Page 3: Product Introduction
1. Product Introduction 1.1 Overview The MBT-1100 is equipped with the latest GPS solution for fast and accurate fix on GPS signals. This latest round of technology advancements gives the users an “instant on” feel, and the experience in navigation becomes more natural. The dimension of 69.5(L) x 23(W) x 20(H) and weight only 38g, making it an ideal solution to carry everywhere. -
Page 4: Specification
1.5 Specification GPS receiver Frequency Code Chipset Sensitivity Chipset cold start Chipset warm start Chipset hot start Reacquisition Position accuracy Maximum altitude Maximum velocity Update rate Dimension (L x W x H) Interface I/O Pin Mechanical requirements Weight Power consumption... - Page 5 Status Original Display Location Log Data logger Flash Type Data Type Data Type 1: Longitude, Latitude 2: Longitude, Latitude, Altitude 3: Longitude, Latitude, Altitude, Velocity 4:Longitude, Latitude, Altitude, Velocity, Delta Distance 5: All data Bluetooth Bluetooth Operating Frequency Bluetooth certified Bluetooth UART port support data rate Bluetooth distance...
-
Page 6: Before Start
2. Before Start 2.1 Check the Package Content Before you start using MBT-1100, please check out if your package includes the following items. If any item is damaged or missed, please contact your reseller at once. ● MBT-1100 Bluetooth GPS datalog receiver ●... -
Page 7: Led Display
2.3 LED Display Yellow LED indicates power is in charging Blinking Amber LED indicates Battery Low Glowing Blue LED indicates Bluetooth is connected Blinking Blue LED indicates Bluetooth is not fixed Glowing Green LED indicates position is fixed Blinking Green LED indicates position not fixed Glowing RED LED indicates Memory Full Erased memory data, RED LED Blinking 2.4 Hardware Features... -
Page 8: Memory Status Led (Red)
2.4.4. Memory Status LED (Red) Glowing – Memory is full. 2.4.5. Battery Status LED (Amber/Yellow) None - Battery has adequate power supply. Amber - Power is low. Charging immediately is required. Yellow - Connected to power charger, charging. LED off - Battery is fully charged. 2.5. -
Page 9: How To Use Car Charger To Charge Your Handheld Device
2.6 How to use Car Charger to charge your handheld device Connect car charger into your adapter connector of MBT-1100. Plug adapter connector into handheld device connector and plug car charger into cigar-lighter. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com... -
Page 10: Utility Installation
Click the PC Software to install the software application. Click the User Manual to open the user manual of MBT-1100. Click the View Royaltek Website to link our http://www.royaltek.com, please make sure your PC connects to Internet first. Click the Browse CD Contents to open the explorer to browse the files within the CD. -
Page 11: Install Usb Driver (Windows 2000/Xp/2003) Or
3.1 Install USB Driver 2000/XP/2003) or (Windows Vista family) Install the USB Driver from CD. When screen shows the installation window as follows: Click “Next> to next page”, or click”<Back” to back last stage or “Cancel” to give up installation. Please click “Finish”... - Page 12 For USB Driver Vista version, if re-install, please click”<YES>” to remove the driver. If click ”<NO>”, install may occur hand up problem. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com...
-
Page 13: Install Data Download Utility
3.2 Install Data download Utility Click “Next> to next page”, or click”<Back” to back last stage or “Cancel” to give up installation. To the License Agreement page: Click “ I accept the terms in the license agreement” then click “Next>” to next page, or click”<Back” to back last stage or “Cancel”... - Page 14 Click “Install” to start installation. Or click”<Back” to back last stage or “Cancel” to give up installation. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com...
- Page 15 Start installation. Please click “Finish” to finish the Installation. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com...
- Page 16 Finally you will see the icon on windows desk. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com...
-
Page 17: Transfer Data To Your Pc Or Notebook
3.3 Transfer data to your PC or Notebook Usage Notes: (1) When you turn on the power button, it starts to search the GPS Signal. After the GPS position fixed, it will begin to record and save the position data. (2) If you want to stop recording the GPS data, just turn the power off. -
Page 18: Download Data
3.3.2 Download Data Step 1: Change page to “Data Download” menu bar. Step 2: Press “Get Data” button and select NMEA output folder. Step 3: When download finish, there will be a warning message to ask for erasing memory. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com... -
Page 19: Get And Set Mbt-1100 Device Status
3.3.3 Get and Set MBT-1100 Device Status Step1: Change to “Device Status” menu bar Step 2: You can review the MBT-1100 default setting configuration. Time Interval (user adjustable) ◆ Default setting is 15secs 1secs ~ 60secs, user adjustable 5Hz ：Change log by time interval to 5, check if the log time had been changed to 0.2 seconds Data Type (user adjustable) ◆... - Page 20 MBT-1100. 1: Longitude, Latitude, will be saved. 2: Longitude, Latitude, Altitude, will be saved. 3: Longitude, Latitude, Altitude, Velocity will be saved. 4: Longitude, Latitude, Altitude, Velocity, Delta Distance will be saved. 5: Time, Latitude, Longitude, Altitude, Speed, Distance, PDOP, HDOP, VDOP, No of SV in used, SV info (SNR, Elevation, Azimuth) For this mode, you will get the full sentence of $GPGGA, $GPGLL, $GPGSA, $GPGSV, $GPRMC, $GPVT will be saved.
- Page 21 If the memory is full then the system will stop to record. ◆ Memory Erase Erase all memory. ◆ Log Method Check the log will save when button pushed. Log by time ◆ Log config Show the Flash Usage. Step 3: User adjustable: Memory Full Option, key in the Time Interval. When you done the configuration setup, press the “Set Log Config.”...
-
Page 22: Get The Data Logger Data Downloader Revision Information
3.3.4 Get the Data Logger Data Downloader revision information Step1: Change to “About” menu bar User can get the Royaltek Data Logger Data Downloader version. PDF 檔案以 "pdfFactory Pro" 試用版建立 www.pdffactory.com... -
Page 23: Fcc Notices
FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. PDF 檔案以... -
Page 24: Contact Information
Revision History Data 2008/04/07 Contact information Headquarters 1071 Chung Cheng RD., Suite 9F-1 Tao Yuan City, Taiwan. Tel: 886-3-356-9666 FAX: 886-3-358-0050 Http://www.royaltek.com Sales: Http://www.royaltek.com/contact FAE: fae@royaltek.com PDF 檔案以 "pdfFactory Pro" 試用版建立 Revision Note V1.0 Final Release www.pdffactory.com...
