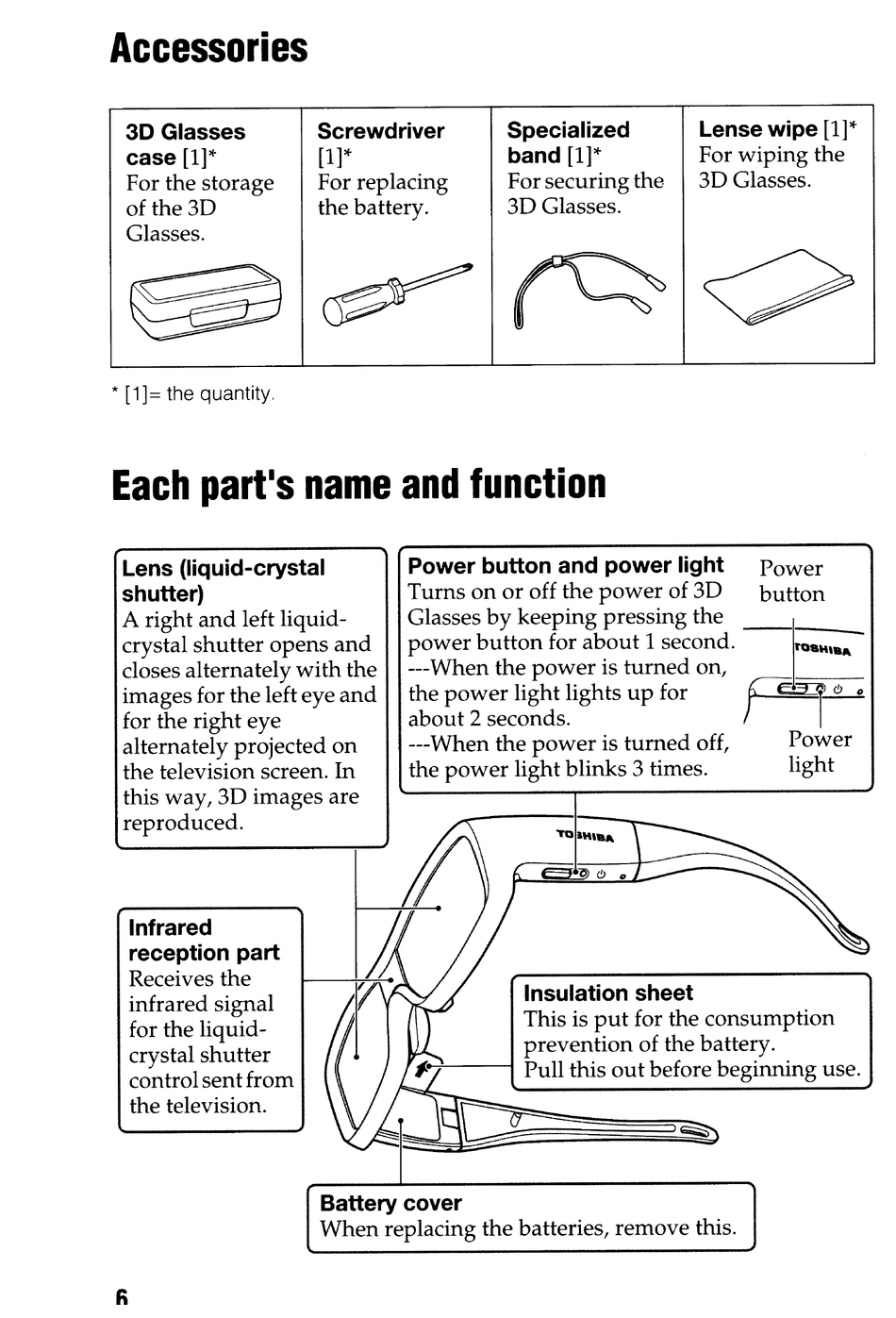

Accessories
3D Glasses
case [1]*
For the storage
of the 3D
Glasses.
Screwdriver
[1]*
For replacing
the battery.
Specialized
band [1]*
For securing the
3D Glasses.
Lense wipe [1]*
For wiping the
3D Glasses.
*
[1]= the quantity.
Each part·s name and function
Power
button
Fr~
Power
light
'~
Insulation sheet
This is put for the consumption
prevention of the battery.
it-+------l
Pull this out before beginning use.
Power button and power light
Turns on or off the power of 3D
Glasses by keeping pressing the
power button for about 1 second.
---When the power is turned on,
the power light lights up for
about 2 seconds.
---When the power is turned off,
the power light blinks 3 times.
Infrared
reception part
Receives the
infrared signal
for the liquid-
crystal shutter
control sent from
the television.
Lens (liquid-crystal
shutter)
A right and left liquid-
crystal shutter opens and
closes alternately with the
images for the left eye and
for the right eye
alternately projected on
the television screen. In
this way, 3D images are
reproduced.
Battery cover
When replacing the batteries, remove this.
6
