Appearance Of The Device - NAVTELECOM SMART S-2425 Operation Manual

On the front part of the device unit (figure 1) is located:
 14-pin connector of Microfit-14 type for connection of power supply, digital and analog sensors and control lines.
On the side of the device unit (figure 2) is located:
 MiniUSB connector for connection with a computer;
 SIM card holder slot with ejector (yellow button).
In the upper part of the device unit (figure 3) there are three indicators:
 system indicator (SYS)
 modem operation indicator (GSM);
 navigation receiver indicator (NAV).

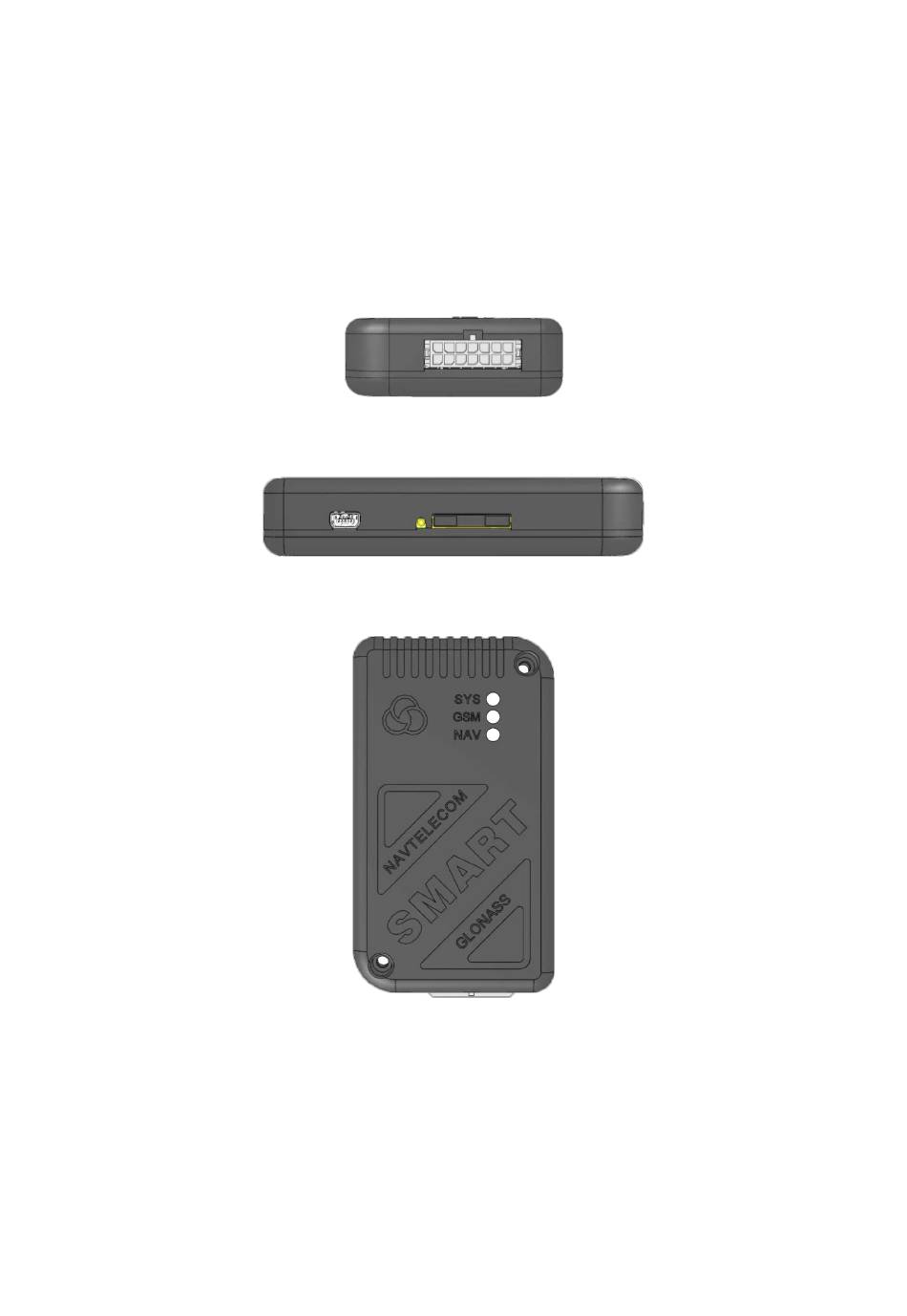

1.5 Appearance of the device

Figure 1. Device unit (front view).
14-pin connector of Microfit-14
Figure 2. Device unit (side view).
MiniUSB connector and SIM card slot with ejector
Figure 3. Device unit (top view).
SYS, GSM, NAV indicators
