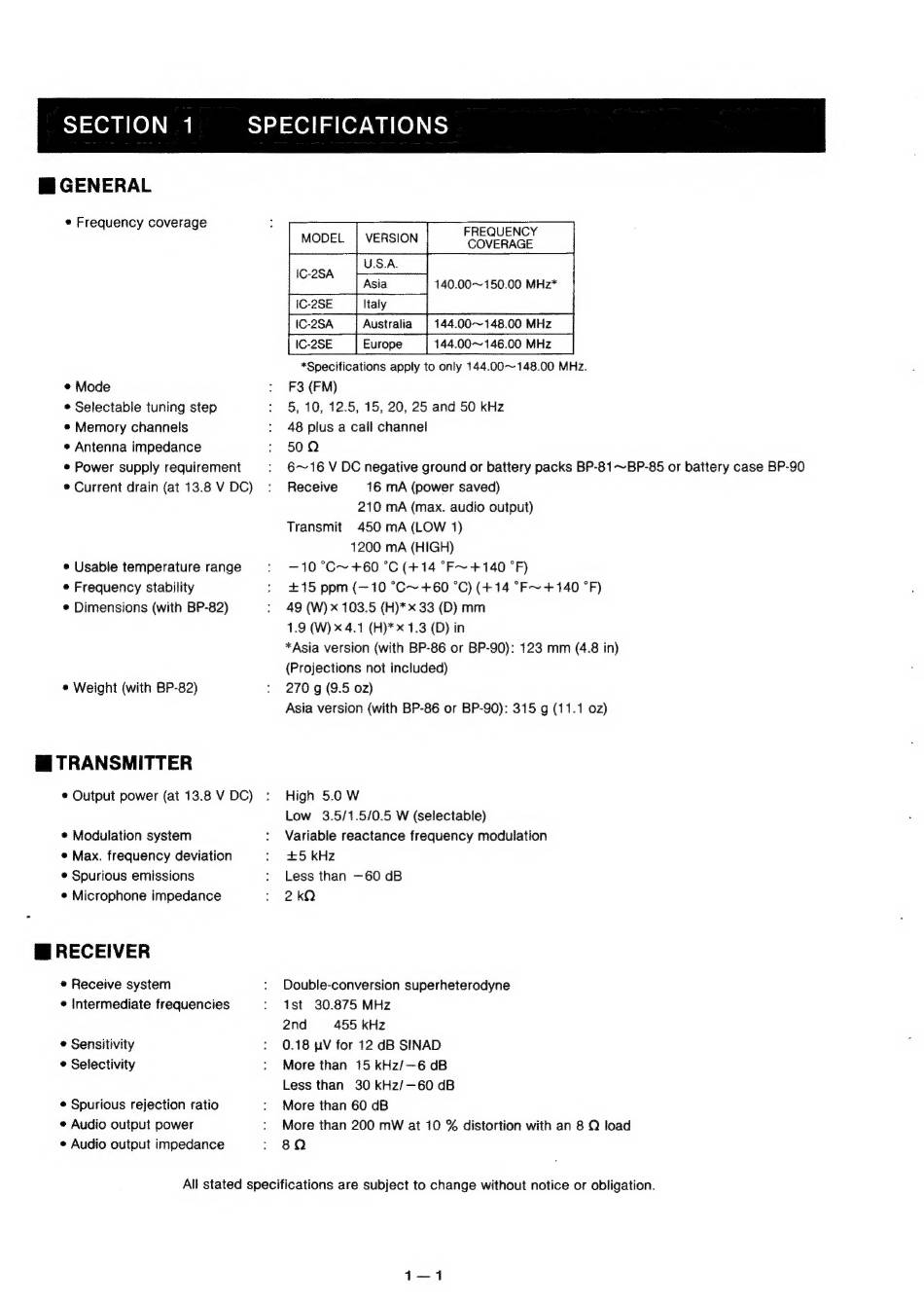

ЗЕСТІОМ 1 SPECIFICATIONS
Ш GENERAL
* Frequency coverage
е Mode
е Selectable tuning step
e Memory channels
® Antenna impedance
® Power supply requirement
* Current drain (at 13.8 V DC)
* Usable temperature range
• Frequency stability
* Dimensions (with BP-82)
* Weight (with BP-82)
Mi TRANSMITTER
* Output power (at 13.8 V DC)
* Modulation system
* Max. frequency deviation
* Spurious emissions
* Microphone impedance
Ш RECEIVER
* Receive system
e Intermediate frequencies
* Sensitivity
e Selectivity
* Spurious rejection ratio
* Audio output power
* Audio output impedance
FREQUENCY
MODEL | VERSION
COVERAGE
*Specifications apply to only 144.00— 148.00 MHz.
F3 (FM)
5, 10, 12.5, 15, 20, 25 and 50 kHz
48 plus a call channel
500
6—16 V DC negative ground or battery packs BP-81~BP-85 or battery case BP-90
140.00—150.00 MHz*
Receive 16 mA (power saved)
210 mA (max. audio output)
Transmit 450 mA (LOW 1)
1200 mA (HIGH)
— 10 °C~ +60 °C (+14 °F~ +140 °F)
+15 ppm (—10 °C~ +60 °C) (+14 °F~+140 ^F)
49 (W) x 103.5 (H)* x 33 (Р) mm
1.9 (М) x 4.1 (Н)*х 1.3 (D) in
*Asia version (with BP-86 or BP-90): 123 mm (4.8 in)
(Projections not included)
270 9 (9.5 oz)
Asia version (with BP-86 or ВР-90): 315 д (11.1 о2)
High 5.0 W
Low 3.5/1.5/0.5 W (selectable)
Variable reactance frequency modulation
+5 kHz
Less than —60 dB
2 КО
Double-conversion superheterodyne
1st 30.875 MHz
2nd 455 kHz
0.18 uV for 12 dB SINAD
More than 15 kHz/—6 dB
Less than 30 kHz/ —60 dB
More than 60 dB
More than 200 mW at 10 % distortion with an 8 О load
80
All stated specifications are subject to change without notice ог obligation.
