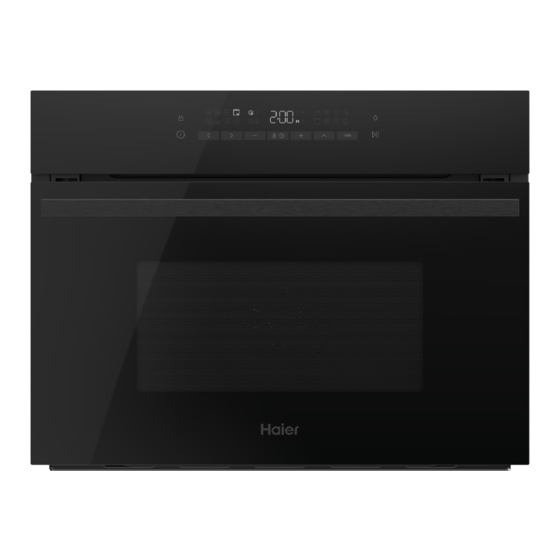

Microwave Oven
HMO60S11EB1
USER GUIDE
NZ AU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMO60S11EB1 and is the answer not in the manual?

Questions and answers

Related Manuals for Haier HMO60S11EB1

Summary of Contents for Haier HMO60S11EB1

  • Page 1 Microwave Oven HMO60S11EB1 USER GUIDE NZ AU...

  • Page 3: Table Of Contents

    CONTENTS Safety and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Product overview .

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS WARNING! Electrical Shock Hazard Failure to follow this advice may result in electrical shock or death. • Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains electricity supply . •...
  • Page 6 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE IMPORTANT SAFETY INSTRUCTIONS! To reduce the risk of fire, electrical shock, injury to persons or damage when using the oven, follow the important safety instructions listed below. Read all the instructions before using the oven. Use the oven only for its intended purpose as described in these instructions.
  • Page 7 SAFETY AND WARNINGS Food and liquids Leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warm weather. Eggs in their shells and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  • Page 8 SAFETY AND WARNINGS Fire The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similiar may lead to risk of injury, ignition or fire. To reduce the risk of fire in the microwave oven cavity: Do not overcook food.
  • Page 9 Do not mount over a sink. Do not store anything directly on top of the appliance surface when the appliance is in operation. If the microwave oven light fails, consult a Haier authorised servicer. Cleaning The oven must be cleaned regularly and all food residues must be removed.

  • Page 10: Product Overview

    PRODUCT OVERVIEW FEATURES AND ACCESSORIES Control panel Oven door Rack Oven door handle Grill shelf Air fry tray Glass turntable...

  • Page 11: Control Panel

    CONTROL PANEL !1 !2 POWER Press to turn oven and to cancel a cook . Icon illuminates ON/OFF when power is on. Turns off after 2 minutes without use. LOCK Press to turn child lock . Icon illuminates when child lock ON/OFF is on .

  • Page 12: First Use

    FIRST USE Preparing your microwave oven Before you connect the oven to a power source, remove any accessories and clean the inside of the oven with a damp cloth and mild detergent . Wipe it dry with a clean cloth . 1.

  • Page 13: Using The Oven

    USING THE OVEN Selecting a cooking function The oven displays the default settings for a function when you select it . These can be adjusted on most functions . See 'Cooking functions' for details . 1. Press to turn the oven 2.
  • Page 14 USING THE OVEN 4. Press to start cooking . Setting the cooking duration 1. Select a function, then press to shift to duration mode . will light up . 2. Press to adjust the duration . 0-5 minutes: 10-sec increments 5-10 minutes: 30-sec increments >10 minutes: 1-min increments...
  • Page 15 USING THE OVEN 3. Press to start cooking . When cooking ends, the oven will make a beeping sound for 2 minutes . Press any key to stop the beeping . +30s Press to increase cooking time in 30-second increments . Not available for defrosting and convection functions once cook has started .
  • Page 16 USING THE OVEN Setting Delayed Cook allows you to schedule a cook up to 24 hours in advance by setting a function, cooking DELAYED COOK duration and desired cooking end time . This means you can schedule a cook in the morning to begin in the evening .
  • Page 17 USING THE OVEN 4. When cooking ends, will show on the display and the oven will beep continuously until you press 5. Press to cancel DELAYED or set timer to COOK Defrost by weight Press to select DEFROST BY WEIGHT Press to set the weight from 100–2000 grams .
  • Page 18 USING THE OVEN Using child lock Child lock allows you to lock the controls while cooking or using another function such as a timer . It deactivates if the oven is in standby mode . buttons can still be used in Lock mode . An alert will sound if you press another button, and will flash .

  • Page 19: Using The Grill

    USING THE GRILL For best results, preheat the oven for 5 minutes before grilling . The actual temperature will show on the display until it reaches target temperature . Delayed cook is not available for grill . 1. Press to select GRILL 2.

  • Page 20: Cooking Functions

    COOKING FUNCTIONS Microwave functions POWER/ DEFAULT TEMP/ DEFAULT TIME MODE POWER/ SET STEP WEIGHT TIME RANGE TEMP RANGE Microwave 900W 900W 1 min 0–90 mins 900W Microwave 600W 600W 1 min 0–90 mins 600W Microwave 900W 100–900W 100W 1 min 0–90 mins 400W 200–600W...
  • Page 21 COOKING FUNCTIONS Convection functions DEFAULT POWER/TEMP DEFAULT TIME MODE POWER/ SET STEP RANGE TIME RANGE TEMP Default Grill 180°C 50–230°C +/-5°C 0–10 hours clock Default Air Fry 180°C 50–230°C +/-5°C 0–10 hours clock Default Fan forced 180°C 50–200°C +/-5°C 0–10 hours clock Fan forced + Default...

  • Page 22: Extra Functions

    EXTRA FUNCTIONS Favourite Set and save your favourite cooking function and custom settings for quick access . 1. Press to select a function . 2. Press to set the desired power level, temperature and time . Press to adjust the settings .
  • Page 23 EXTRA FUNCTIONS Using saved favourite 1. Press to select 2. Press to select the saved favourite . 3. Press to start cooking .
  • Page 24 RECIPE MENU Select from 7 programmed recipes . The recipes are programmed with the function, power level, temperature, preheat stages and cooking duration for each dish . See 'Menu' for details . 1. Press to select the menu will display on the screen . 2.
  • Page 25 MENU PROGRAMME COOKING COOKING RECIPE TEMP DETAILS NUMBER FUNCTION DURATION 400–450 grams . Preheat + 12 Pizza (frozen) Air Fry 220°C mins Use bottom shelf . 200°C 500–700 grams . Potatoes Microwave + 30 mins (roasted) Fan forced (600W) Use middle shelf . 180°C Chicken Microwave +...

  • Page 26: Settings

    SETTINGS Setting the clock 1. Press and hold or press 4 times to select time settings . 2. Press to set the time . 3. Press to confirm .
  • Page 27 SETTINGS Setting the timer 1. Select a function, then press and hold will start to flash . 2. Press to set the timer from 1 minute to 24 hours . Press to start the timer . A buzzer will sound for 90 seconds when the timer finishes .

  • Page 28: Cookware

    COOKWARE COOKWARE AND CONVECTION GRILL, HIGH MIX/ROAST MICROWAVE ONLY COVERINGS SLOW COOK LOW MIX/BAKE Aluminium foil Yes. You can place small, flat pieces of aluminium foil on food to shield areas from cooking or defrosting too quickly . Keep foil at least 2 .5cm from the walls of the microwave .
  • Page 29 COOKWARE COOKWARE AND CONVECTION GRILL, HIGH MIX/ROAST MICROWAVE ONLY COVERINGS SLOW COOK LOW MIX/BAKE Paper towels Yes . To cover for reheating and cooking . Do not use recycled paper towels which may contain metal filings Paper, oven-safe Yes . For temperatures up Yes .

  • Page 30: Care And Cleaning

    CARE AND CLEANING Surfaces Wipe clean with a damp cloth and mild detergent . Dry with a clean, lint-free cloth . We recommend locking the controls if you’re cleaning near them . Clean spills immediately, especially if they are alkaline or acidic substances such as lemon juice or vinegar . We do not recommend using the following cleaning products as they may cause damage: Plastic or stainless steel scouring pads .
  • Page 31 CARE AND CLEANING Removing the door You can remove the oven door to gain easier access for cleaning and maintenance . 1. Lift up the safety catches on the door hinges . 2. Gently close the door halfway, then lift the door and pull it towards you to remove .
  • Page 32 CARE AND CLEANING Turntable The turntable rotates to allow food to cook evenly . Do not rotate the turntable by hand as this can damage the drive mechanism (B) and may invalidate your warranty . Removing the turntable 1. Carefully lift the turntable (A) out of the oven to clean it .

  • Page 33: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Food has not heated Door is not fully closed . Check the door is closed . If the problem persists, contact Customer Care . Controls not set correctly . Check settings . Turntable makes Turntable not correctly in Reposition the turntable .

  • Page 34: Manufacturer's Warranty

    . You must produce both warranty and proof of purchase in the event of a warranty repair being required . When you purchase any new Haier Product you automatically receive a two year Manufacturer's Warranty covering parts and labour for servicing .

  • Page 35: Customer Service

    CUSTOMER SERVICE We recommend our Haier Customer Service and the use of original spare parts . If you have a problem with your appliance, please first check TROUBLESHOOTING . If you cannot find a solution there, please contact: Your local dealer .
  • Page 36 WWW .HAIER .COM .AU 条形码尺寸40*8mm， 由厂家生成。 WWW .HAIER .CO .NZ 432403A 9415112619032 07.24...
